Front Panel Controls and Indicators

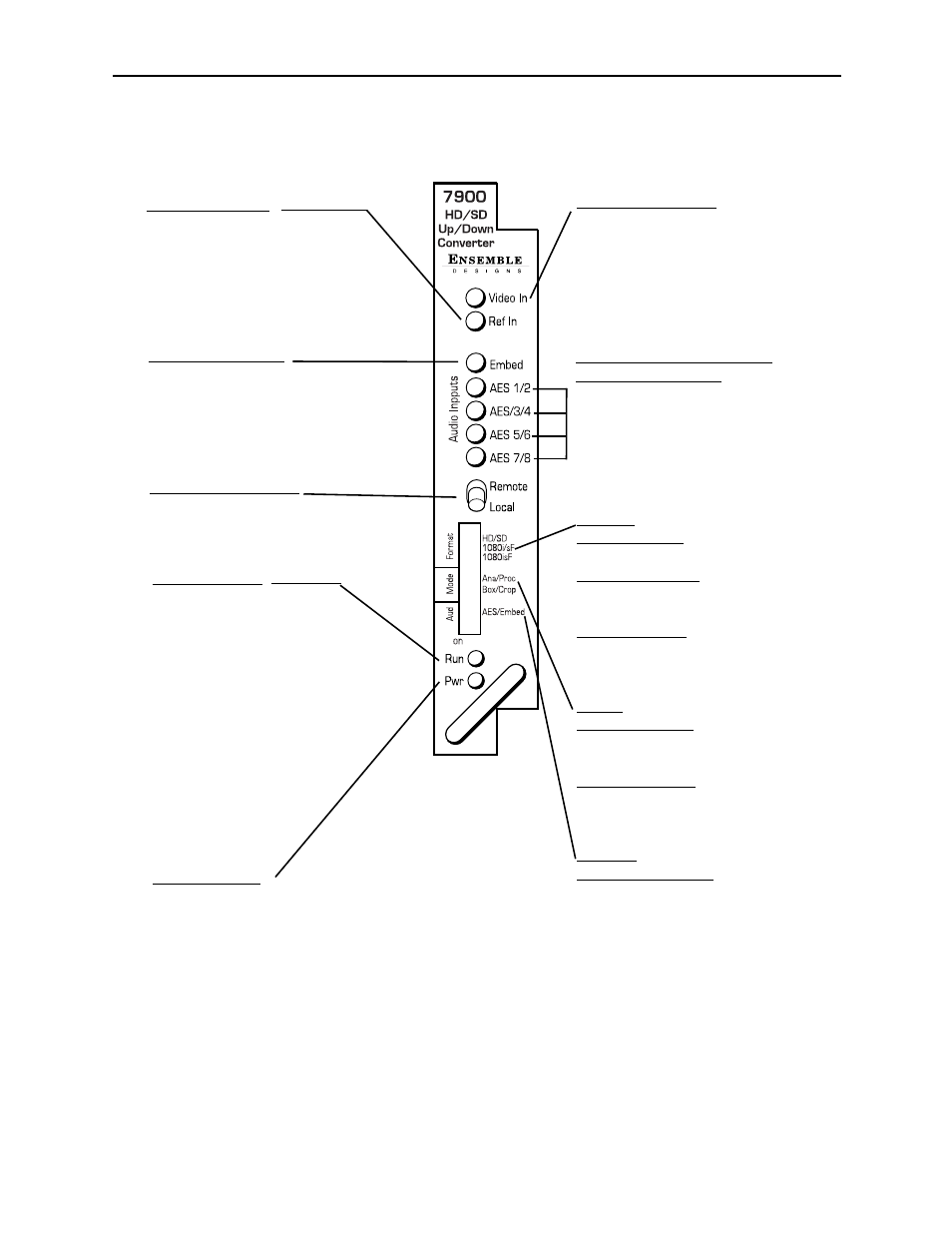

The front edge indicators and switch settings are shown in the diagram below:
7900-15
Video In green LED:
ON indicates signal is present
and equalized.
OFF indicates no SD input or the
signal may not be present or
cable equalization exceeds
maximum length allowed.
Pwr green LED:
Indicates the presence (ON) or
absence (OFF) of power (+5V).
Run green LED:
OFF:
A power fault of halted CPU
ON:
A halted CPU
FAST BLINK:
CPU Run error
SLOW BLINK:
System OK. (If SPI control is
active from the main frame
System Control Module, all
Run indicators will be
synchronized.)
AES 1/2, AES 3/4, AES 5/8,
AES 7/8 green LEDs:
ON when AES audio is detected
on the corresponding audio
input.
OFF when no AES audio is
detected on the corresponding
audio input.
Ref In green LED:
ON indicates external reference
signal is present and valid.
OFF indicates no external refer-
ence is detected or is invalid.
Embed green LED:
On when an audio ancillary packet
is detected in the serial stream.
OFF when no audio ancillary
packet is detected.
Remote/Local switch:
Set to the mode you
will be using.
Format:
HD/SD switch:
Select the input format as HD or SD.
1080/720p switch:
Select the video up conversion
format to 1080 or 720p.
1080i/sF switch: When a 1080 video
format is selected above, select
either 1080i or 1080sF.
Mode:
Ana/Proc switch:
Set the output mode to Ana
(Anamorphic) or Proc (Process).
Box/Crop switch:
When Proc is selected above, set
the output to either Box or Crop.
Aud(io):
AES/Embed switch:
Select AES or Embed to identify
what audio source is being input to
the module.
