Ensemble Designs 7900 HD Up/Down/Cross Converter User Manual
Page 33

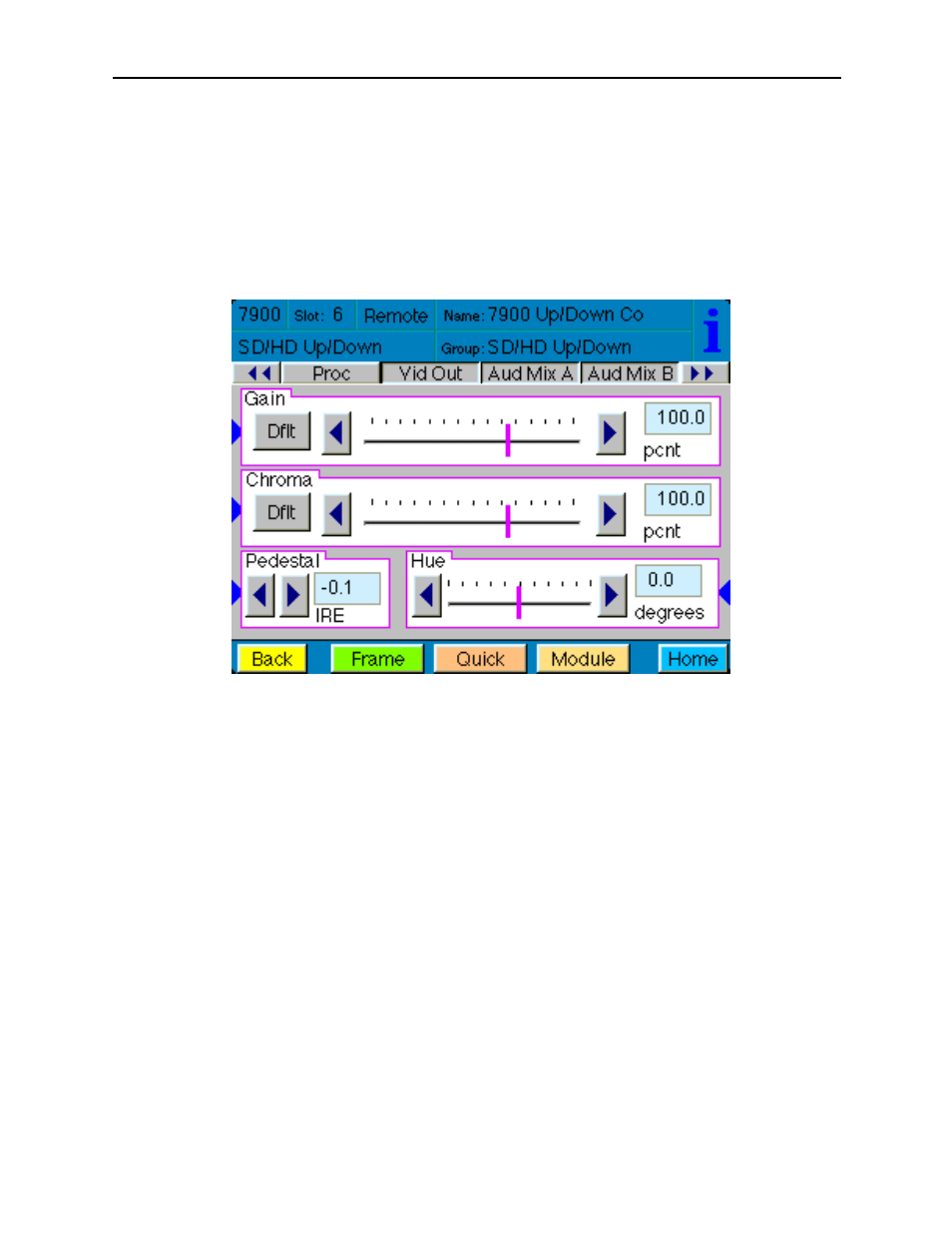

The Proc menu allows you to adjust the following video processing parameters for the
signal:
•
Gain – adjust the percentage of overall gain (luminance and chrominance).
•
Chroma – adjust the percentage of chroma amplitude.
•
Pedestal – adjust the pedestal (black) level of the signal in IRE.
•
Hue – adjust the hue of the signal ± 180 degrees.
Model 7900 HD Up/Down/Cross Converter
7900-33
