Model 7160 HD/SD/ASI/310 Protection DA

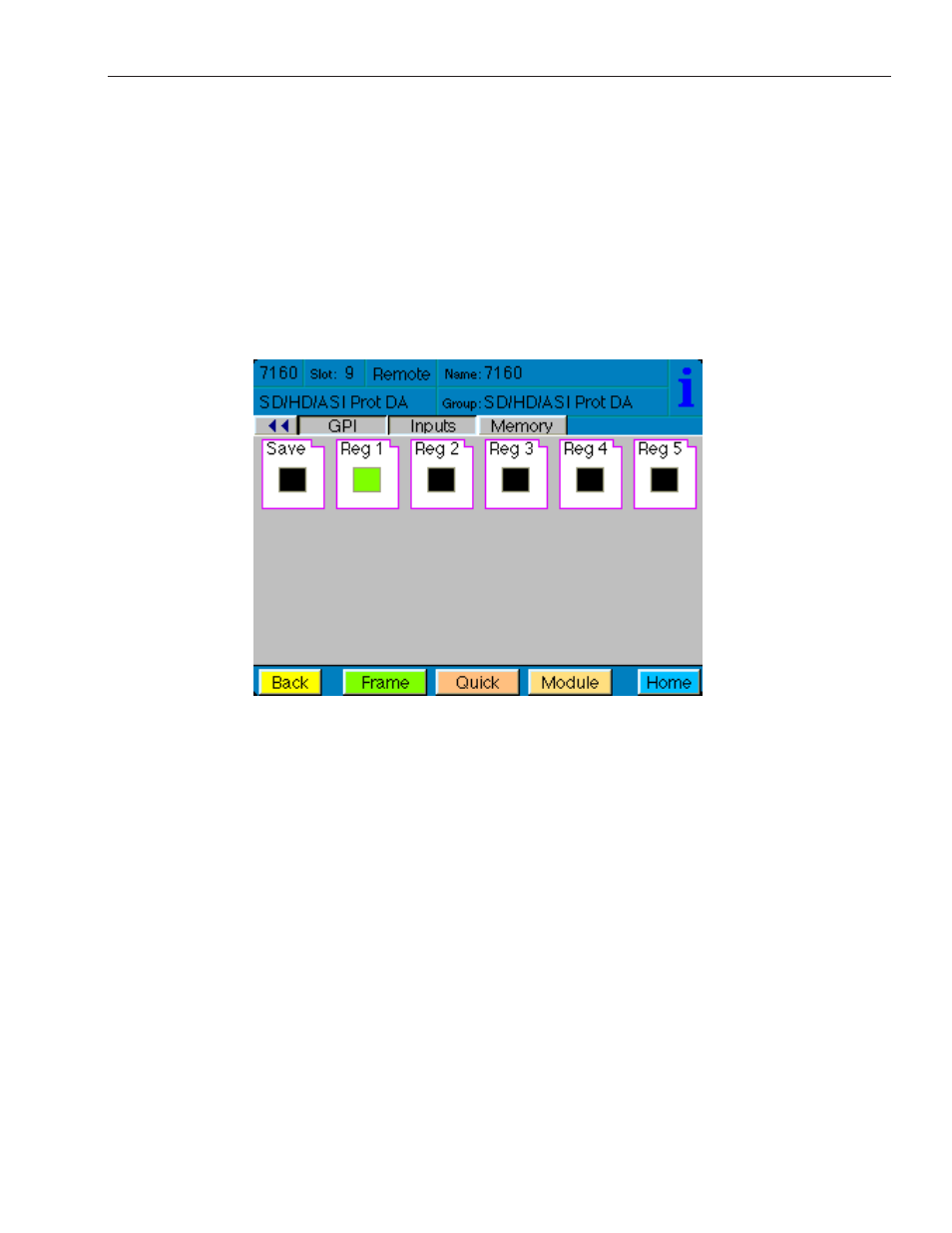

Memory Menu
The Memory menu allows you to save and recall up to 5 different setups for the 7160 module as
follows:
Click • Save, then one of the five memory registers Reg 1 – 5. The box will turn green. The entire
module setup is now saved in the selected register.
To recall a setup, click the register box. If there is information saved, the box will turn green. •
The saved setup will load into the module.
