Model 7160 HD/SD/ASI/310 Protection DA
Pri Errors Menu

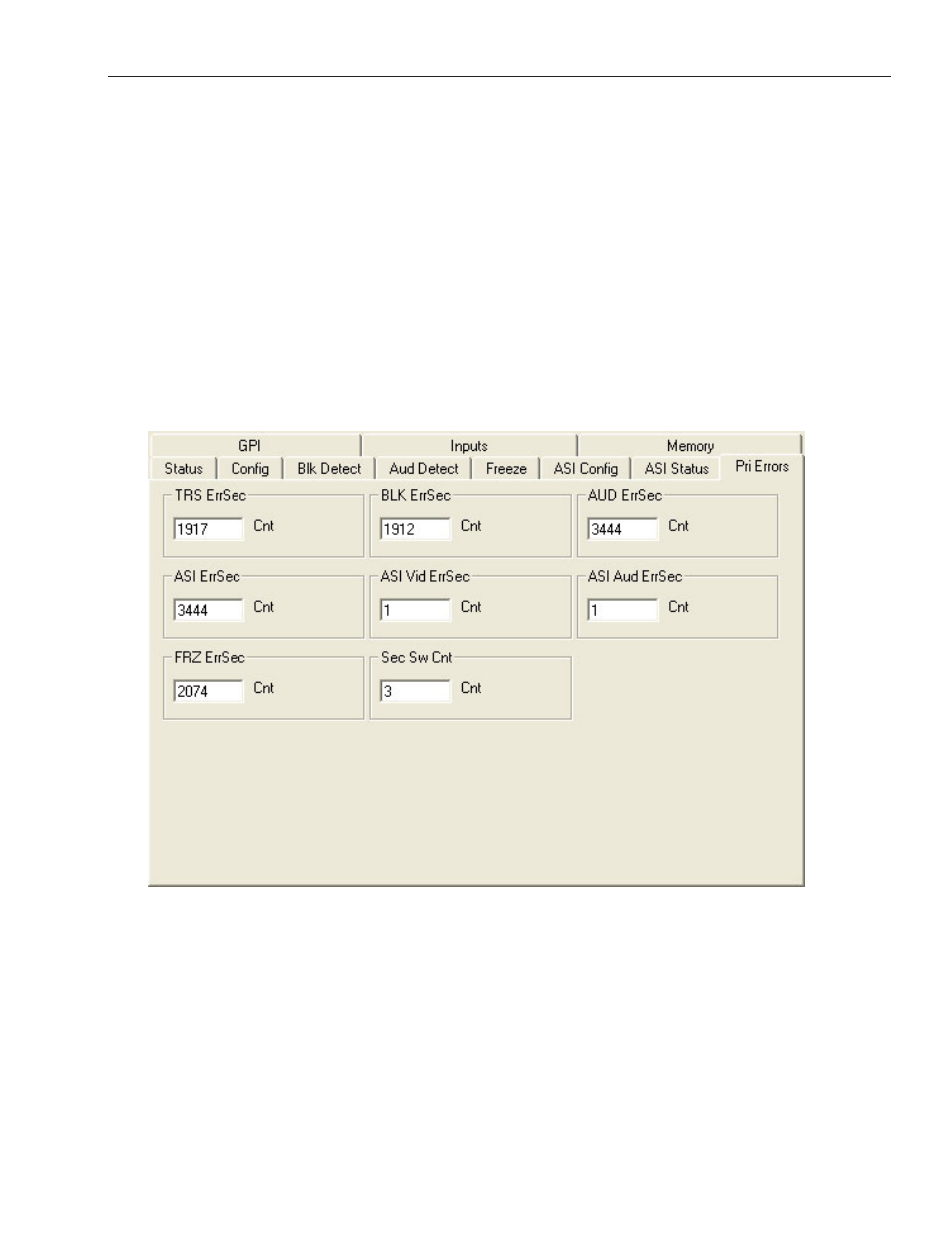

The Pri Errors menu shown below displays the amount of time in seconds that each of the error
conditions have been present after detection on the Primary as well as the number of times the
Primary feed has switched to the Secondary feed (Sec Sw Cnt).
The error counters display the number of cumulative errors that have occured since a counter was
last reset. Errors may occur as a single event, or as multiple events over a period of time. Refer to the
Avenue PC manual to learn how to use the alarms and logging capabilities of Avenue PC to obtain
more detailed information on errors.
The upper limit for cumulative errors is 10,000. If an error counter reaches this upper limit, it will
repeatedly cycle between 10,000 and 9,990. To reset the error counter, double-click it. ASI error
counters apply to DVB-ASI or SMPTE 310M signals.
