3 – Reference : Level diagram
18
TASCAM IF-SM/DM Owner’s Manual
Level diagram

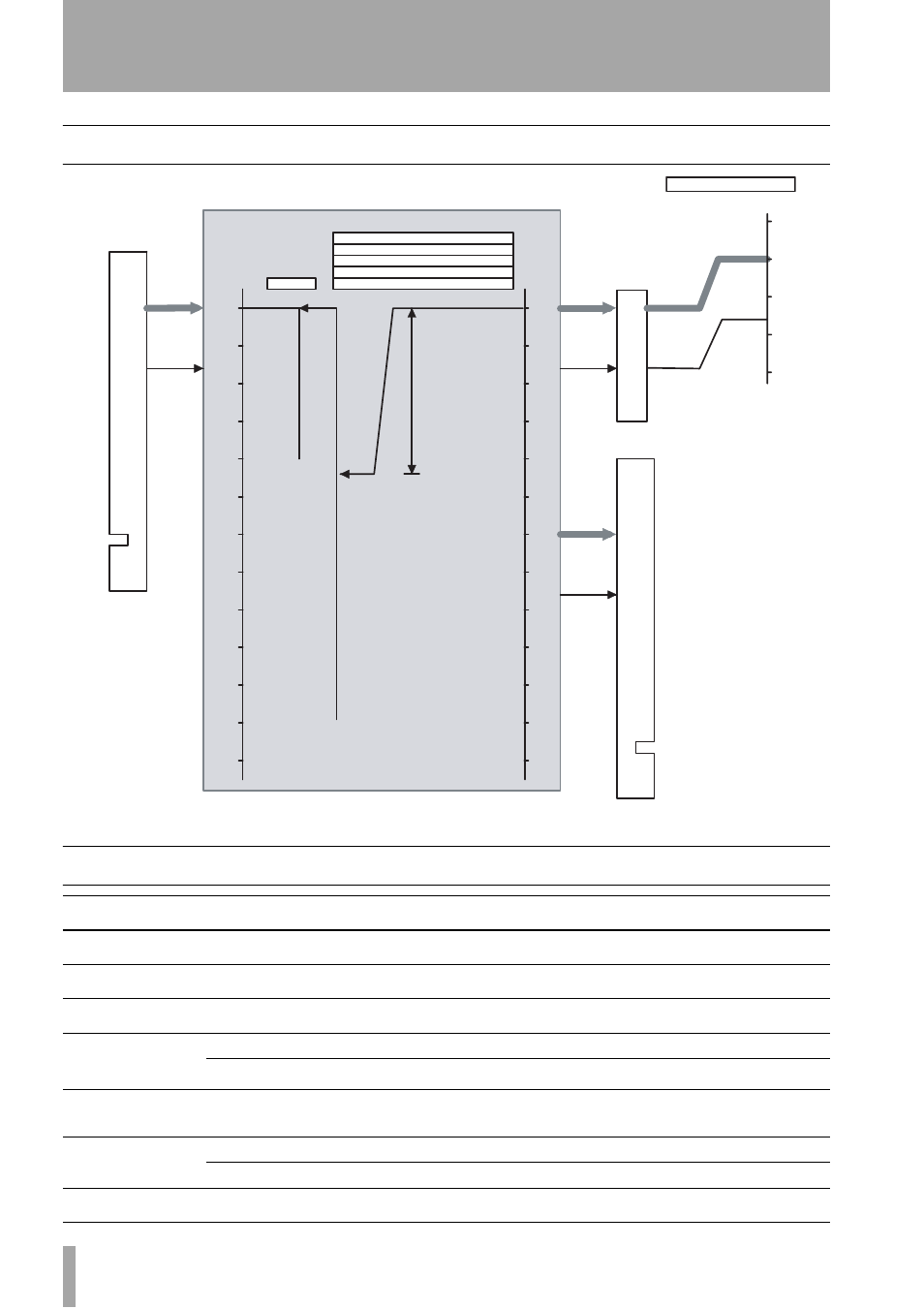

Figure 3.2: Level diagram
Audio performance
Maximum level +20dBu -
Nominal level +4dBu -
Output impedance 100
Ω
-
S/N < –100 dB 2TR IN to MONITOR OUTPUT 1-8, Fs=48kHz
Frequency
response
±0.5 dB 20Hz - 20kHz LINE IN to MONITOR OUTPUT 1-8 @ Nominal level, Fs=48kHz
+0.5 dB/–1.5 dB 20Hz ñ 40kHz LINE IN to MONITOR OUTPUT 1-8 @ Nominal level, Fs=96kHz
THD <0.008%
1 kHz, Input module [Mixer internal oscillator] to MONITOR OUTPUT 1-8
@Level max
Signal delay
< 1.5 ms Fs = 48.0kHz, LINE to MONITOR OUTPUT 1-8
< 0.75 ms Fs = 96.0kHz, Mixer internal oscillator to MONITOR OUTPUT 1-8
X talk > 90 dB 1kHz, Mixer internal oscillator to MONITOR OUTPUT 1-8 @ 0dBFs, Fs=48kHz
DAC
-16dBFs
0dBFs
+30
+20
+10
0
-10
[dBu]
MONITOR OUTPUT1-8
+7.16dBu
-8.84dBu
+4dBu
+20dBu
0
-10
-20
-30
-40
-50
-60
-70
-80
-90
-100
[dBFs]
-110
-120
DIMMER
+44dB
Trim:-9.9dB...+9.9dB
BALANCE
From Card Edge
-40dB
-109dB
Surround level: -10dB...0dB
LFE gain:0dB, +6dB...+10dB
SPL reference level: 65dBc...109dBc
Monitor level: 0dBc...109dBc
IF-SM/DM
To Card Edge
0
-10
-20
-30
-40
-50
-60
-70
-80
-90
-100
[dBFs]
-110
-120
0dBFs
-16dBFs
-16dBFs
0dBFs
