Testing the System:
1- Pickup line 1 on your telephone. The line one Green LED on the SENSOR BOARD
should light up. Hang up. Repeat this test for line 2.
2. From an outside phone, call the 1
st
line on the phone that the CK1is installed on. After
answering the phone, WAIT a minimum of 3 seconds before placing the call ON HOLD.
If you don’t wait 3 seconds, the CK1 will NOT activate and you will NOT hear music.
Adjust the level of the music player. Repeat the same for line 2.
NOTE: Music quality can NOT accurately be judged from a CELL phone. Call from a
land line to judge the quality of the Promotion-On-Hold.
Disabling Internal MOH tune on Phone
With the Base Phone NOT IN-USE, press the “MENU” button (center button below
Display). Then on keyboard press #167, then Up Arrow (reads OFF), then SAVE.
MENU #167, [UP Arrow], SAVE
I hear Music when I pick up the phone
It is normal to hear a burst of music when a call is picked up from a HOLD condition.
The maximum length of the burst should be under 1 second. This is normal.

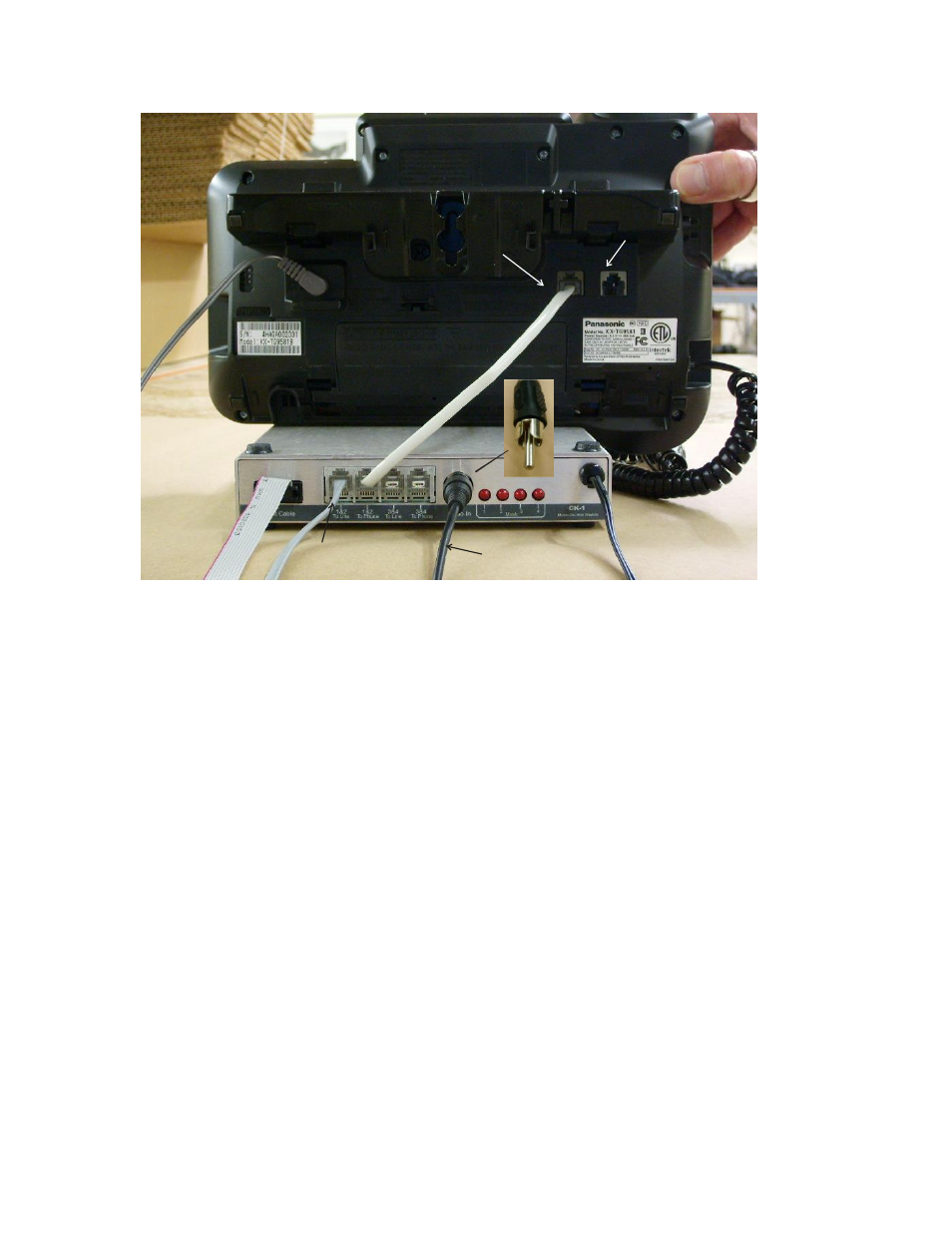

LINE 2
LINE 1/2
FIG #3
Line 1 & 2 to Wall
Audio Cord from Player
