Dell Dimension 9150 - Manual (Page 91)

Removing and Installing Parts
91
1 Slide the tab on the left side of the drive-panel insert under the center drive panel tab.
2 Rotate the drive-panel insert into place and snap the drive-panel insert tab over the
corresponding tab on the drive panel.
3 Ensure that the drive-panel insert is correctly seated in the drive panel.
Replacing the Drive Panel
1 Follow the procedures in "Before You Begin" on page 63.
2 Align the drive panel tabs with the side-door hinges.
3 Rotate the drive panel toward the computer until the sliding plate lever clicks into place and
the drive panel snaps into place on the front panel.

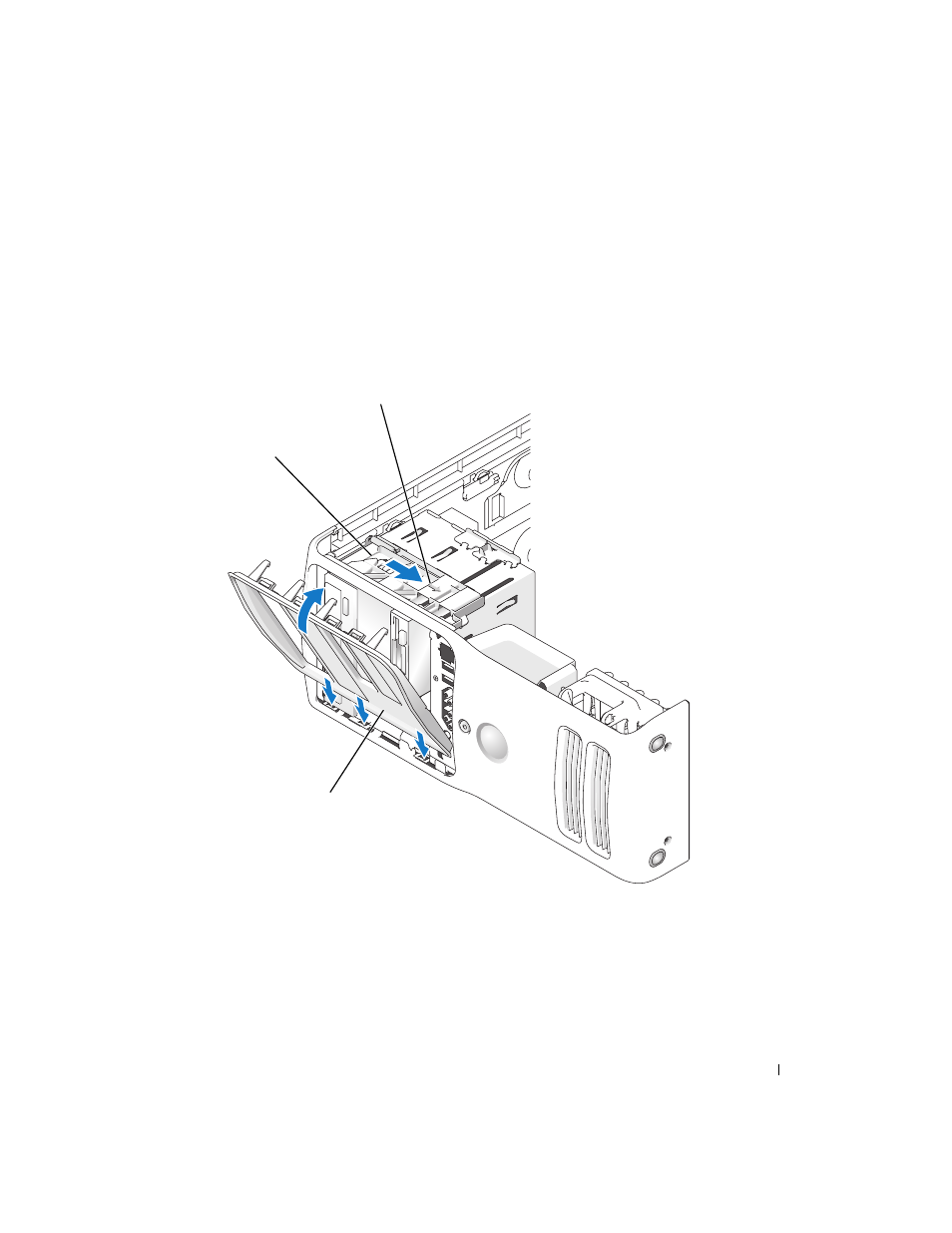

drive panel
sliding plate
sliding plate lever
