Removing and Installing Parts
www
.dell.com | support.dell.com
3 Push from the inside and pivot the drive panel to the left to release the panel from its side
hinges.
4 Set the drive panel aside in a secure location.
Removing the Drive-Panel Insert
1 Turn the drive panel sideways and find the tip of the drive-panel insert tab that latches over a
tab on the right side of the drive panel.
2 Pull the inner tip of the drive-panel insert tab away from the drive panel.
3 Pivot the drive-panel insert out and away from the drive panel.
4 Set the drive-panel insert aside in a secure location.
Replacing the Drive-Panel Insert

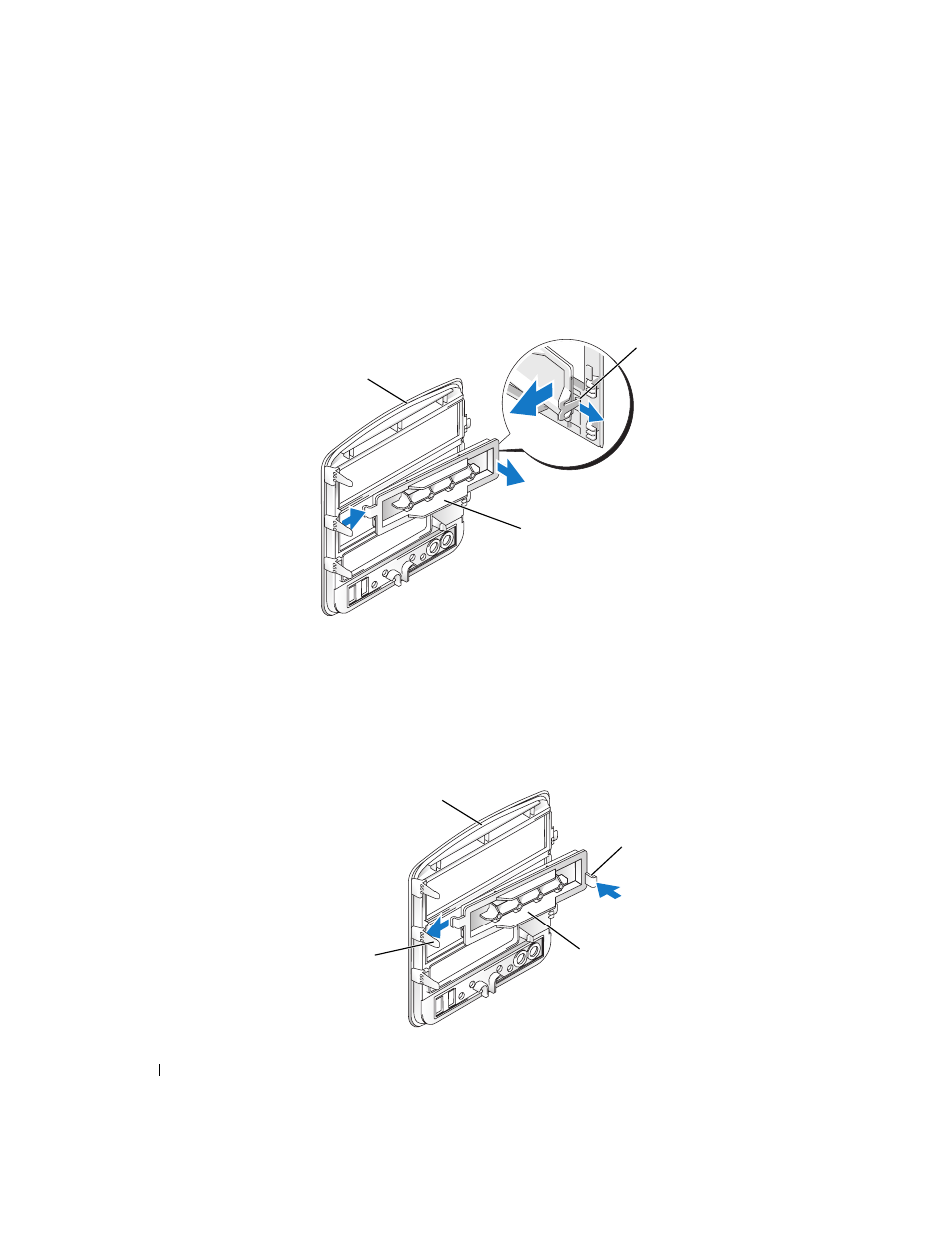

drive panel
drive-panel insert
drive-panel
insert tab
center drive-
panel tab
drive-panel
insert tab
drive panel
drive-panel insert
