Electrical characteristics curves – Delta Electronics DNT04 User Manual
Page 6
DS_DNT04SIP3A_09262007
6

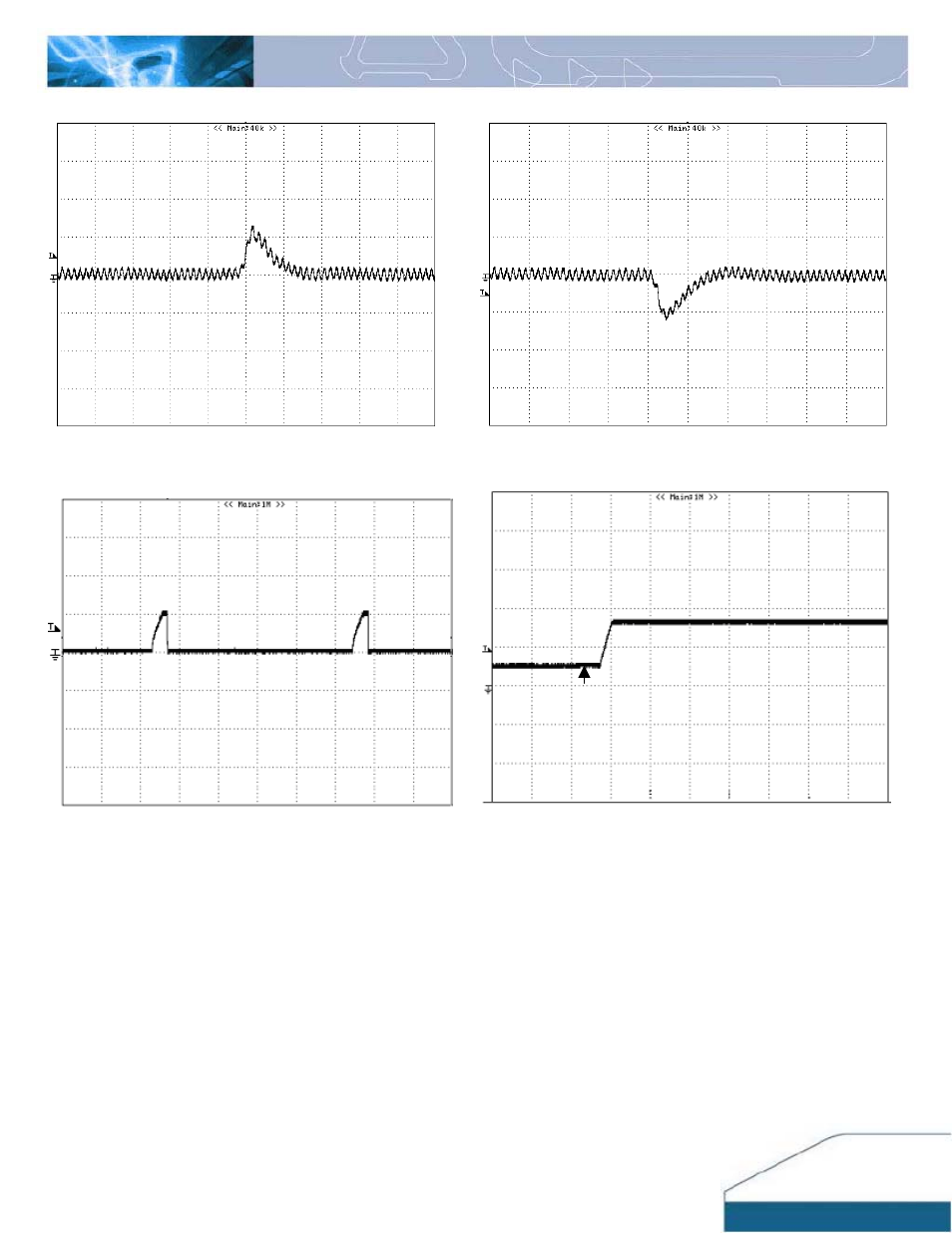

ELECTRICAL CHARACTERISTICS CURVES
Figure 19: Typical transient response to step load change at
2.5A/µS from 100% to 50% of Io, max at 5Vin, 3.3Vout
(Cout = 1uF ceramic, 10µF tantalum), 0.1V/div
Figure 20: Typical transient response to step load change at
2.5A/µS from 50% to 100% of Io, max at 5Vin, 3.3Vout
(Cout =1uF ceramic, 10µF tantalum), 0.1V/div
Figure 21: Output short circuit current 5Vin, 0.75Vout
20A/div, 10mS/div
Figure 22:Turn on with Prebias 5Vin, 3.3V/0A out, Vbias =1.0Vdc
2V/div, 10mS/div
Vbias=1V
