Electrical characteristics curves – Delta Electronics DNT04 User Manual
Page 3
DS_DNT04SIP3A_09262007
3

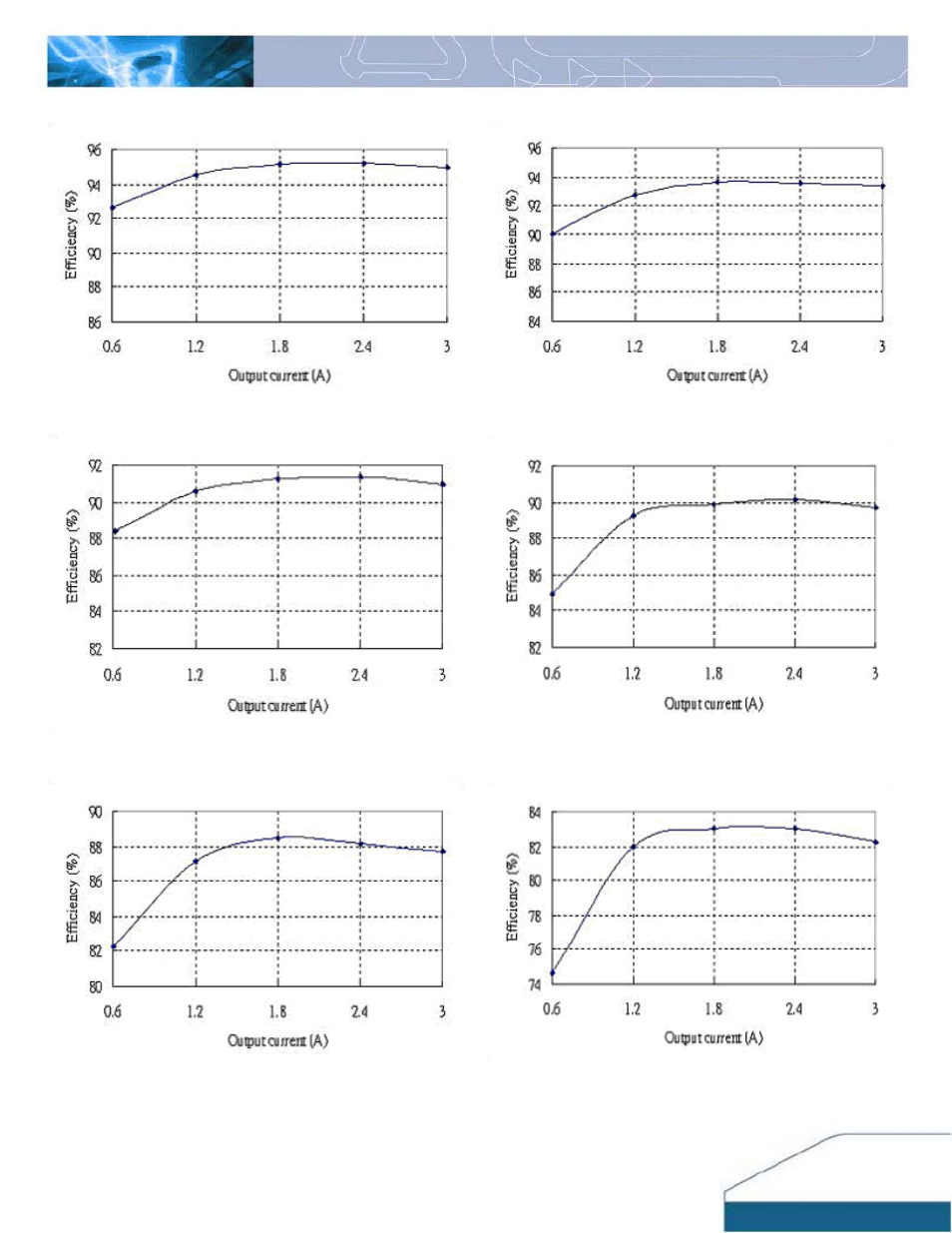

ELECTRICAL CHARACTERISTICS CURVES
Figure 1: Converter efficiency vs. output current (5Vin/3.3Vout)
Figure 2: Converter efficiency vs. output current (5Vin/2.5Vout)
Figure 3: Converter efficiency vs. output current (5Vin/1.8Vout)
Figure 4: Converter efficiency vs. output current (5Vin/1.5Vout)
Figure 5: Converter efficiency vs. output current (5Vin/1.2Vout)
Figure 6: Converter efficiency vs. output current (5Vin/0.75Vout)
