6 Connect the RJ-11 cable to the corresponding jack on the logic card.

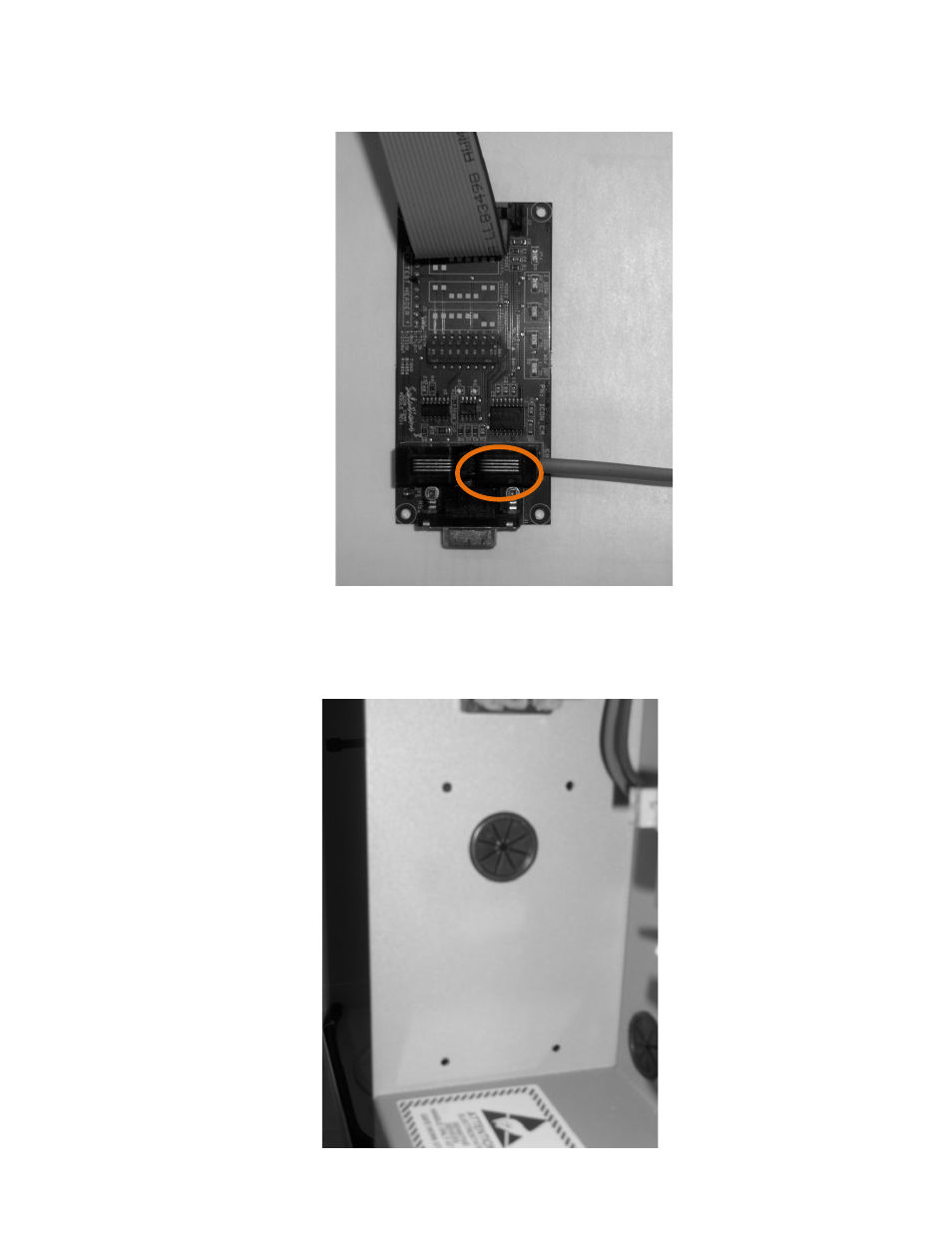

Figure 11: RJ-11 Jack Location on Logic Card

7 Mount logic card with nylon standoffs and screws to humidifier using the 4 pre-drilled

holes

Figure 12: Pre drilled holes for Logic card

46

|Modbus Installation
