Metro Starsys Countertops, Uprights, Overhead CABINETS AND CANTILEVERED SHELVING User Manual
Page 8
Page 8
INST-UPCTB
REV B – 10/14/05
InterMetro Industries Corporation
North Washington Street, Wilkes-Barre, PA 18705
For Product Information Call: 1-800-433-2232
Visit Our Web Site: www.metro.com
COUNTERTOPS, UPRIGHTS, OVERHEAD CABINETS AND CANTILEVERED SHELVING
Work Centers
(1) LH UPRIGHT
(1) RH UPRIGHT
RH SHELF BRACKET
SCREW, #10-24
X ½ (4)
SHELF
SCREW, 1/4-20 X 1-1/2
4 PER SIDE
(1) CROSSMEMBER
MOBILE WORK CENTER UNIT (SINGLE WIDE SHOWN)
COUNTERTOP
(2) SLOTTED INSERT
¼ SPLIT LOCKWASHER
4 PER SIDE
SCREW,3/8-16 X1”
3 PER SIDE
FILLER STRIP(2)

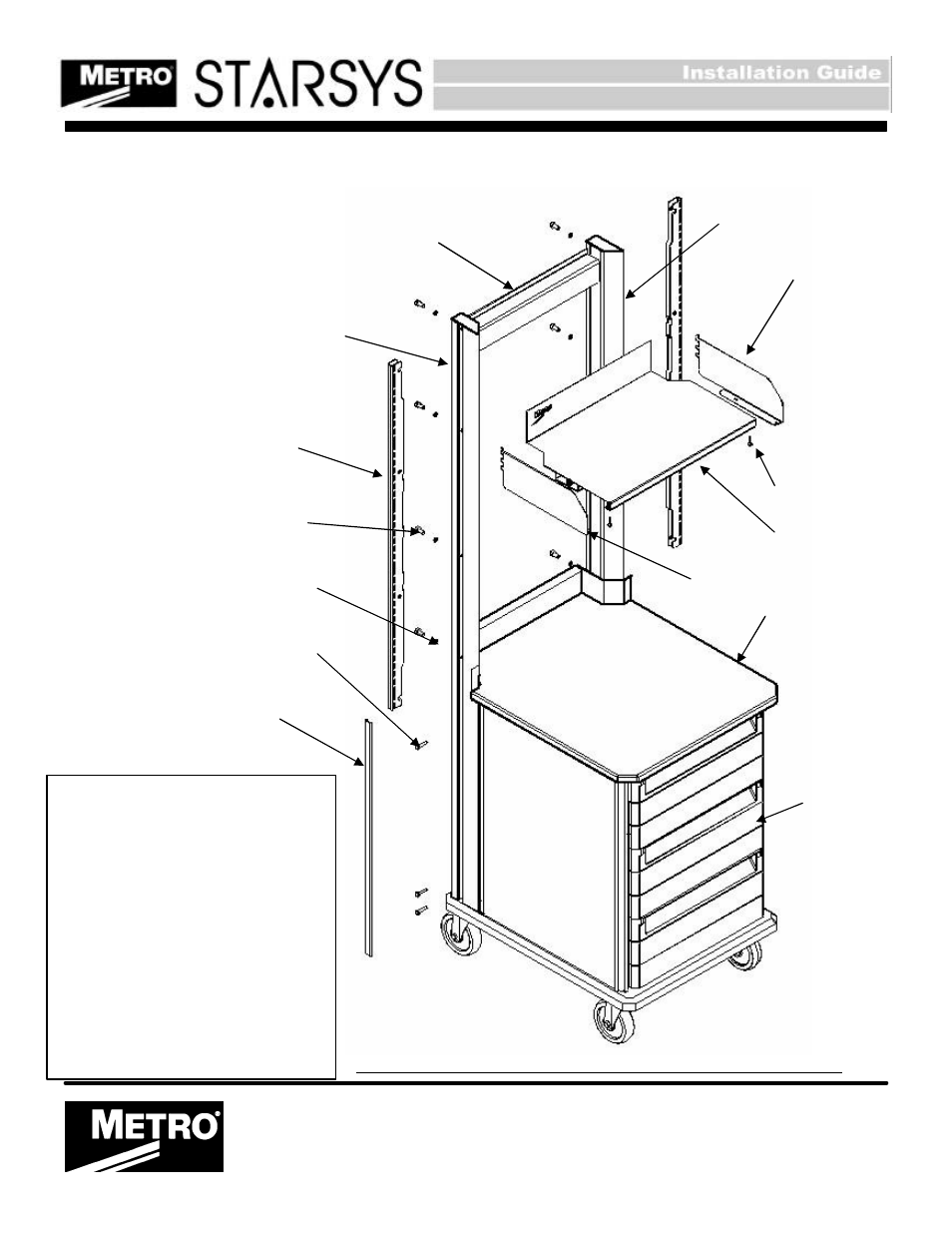

FIGURE 12.
CANTILEVERED SHELVING
INSTRUCTIONS
1.INSTALL UPRIGHTS AND CROSSMEMBER
TO BASE PER FIGURES # 5 & 6.
2.MOUNT SLOTTED INSERTS IN THE
UPRIGHTS BY ALIGNING HOLES IN PARTS
AND SECURING WITH ¼ FASTENERS.
3.AT THE DESIRED SHELF HEIGHT(S),
LOCK SHELF BRACKETS INTO SLOTTED
INSERTS.
4.DROP SHELVES ONTO BRACKETS,
ALIGN UNDERSIDE HOLES AND SECURED
WITH #10 SCREWS.
5.SNAP POST FILLER STRIPS INTO
UPRIGHTS.
LH SHELF BRACKET
BASE
