COUNTERTOPS, UPRIGHTS, OVERHEAD CABINETS AND CANTILEVERED SHELVING
Work Centers

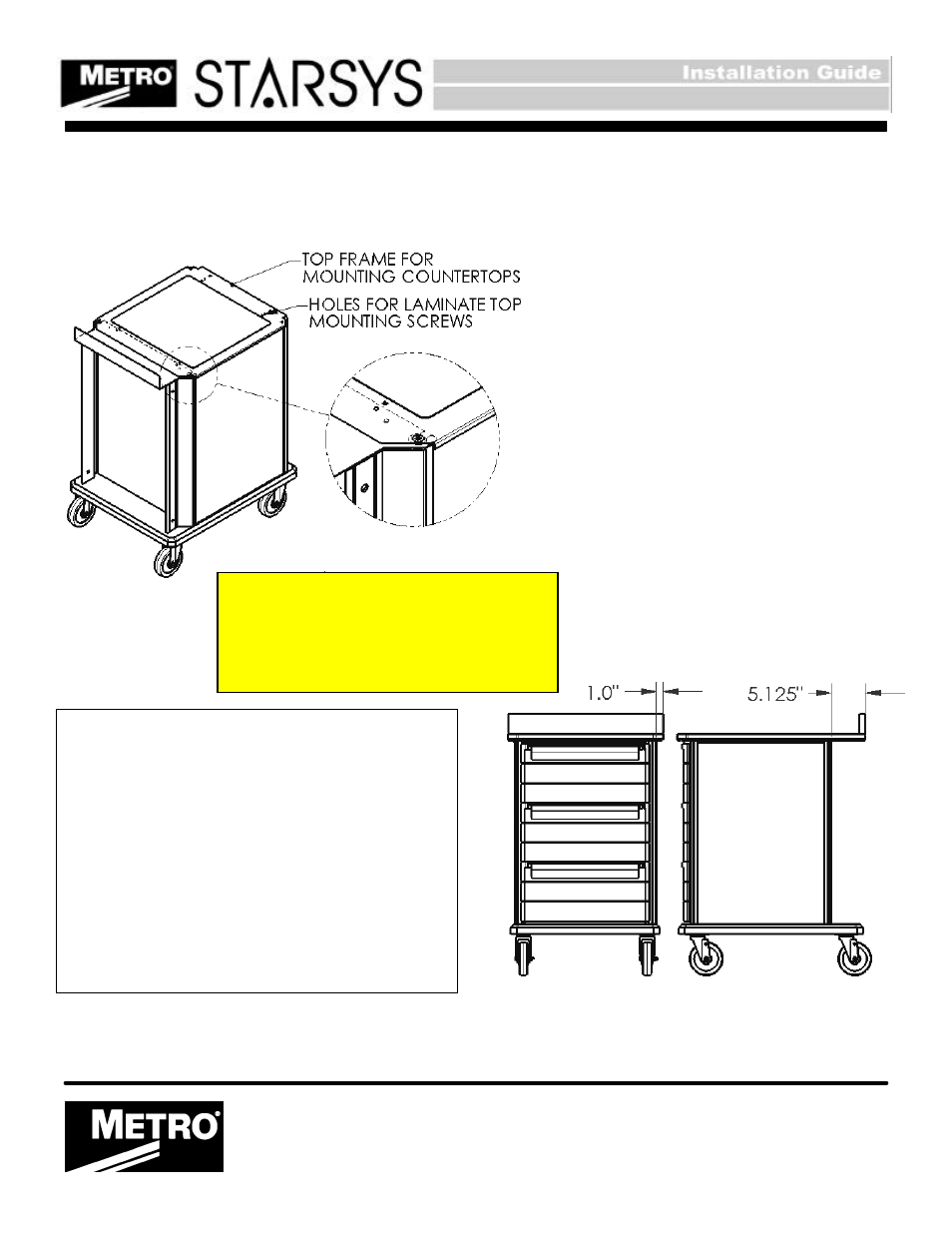

FIGURE 3.
MOUNTING TOPS WITHOUT OVERHEADS:
1. IF USING EPOXY TOP WITH BACKSPLASH, APPLY
SILICONE TO BASE FRAME (FIGURE 3) AND
BACKSPLASH SUPPORT BRACKET THEN POSITION
TOP AS IN FIGURE 4. AFTER TOP IS MOUNTED
SILICONE BACKSPLASH TO TOP AND SUPPORT
BRACKET. EPOXY TOPS WITHOUT BACKSPLASH DO
NOT REQUIRE BACKSPLASH SUPPORT BRACKET.
2. FOR LAMINATE TOP WITH BACKSPLASH, ATTACH
BACKSPLASH TO TOP WITH SUPPLIED SCREWS AND
POSITION TOP AS SHOWN IN FIGURE 4. SECURE
TOP TO BASE WITH SUPPLIED SCREWS (REFER TO
FIGURE 10). TOPS WITHOUT BACKSPLASH ARE
POSITIONED THE SAME WAY.
FIGURE 4.
Note: Trespa Phenolic tops are mounted in a similar
manner to the epoxy tops discussed below, with
100% clear silicone (not Metro supplied). The trespa
backsplashes come with screwholes and screws but it
is also recommended to use silicone on the
backsplash as well in addition to the screws.
