COUNTERTOPS, UPRIGHTS, OVERHEAD CABINETS AND CANTILEVERED SHELVING
Work Centers

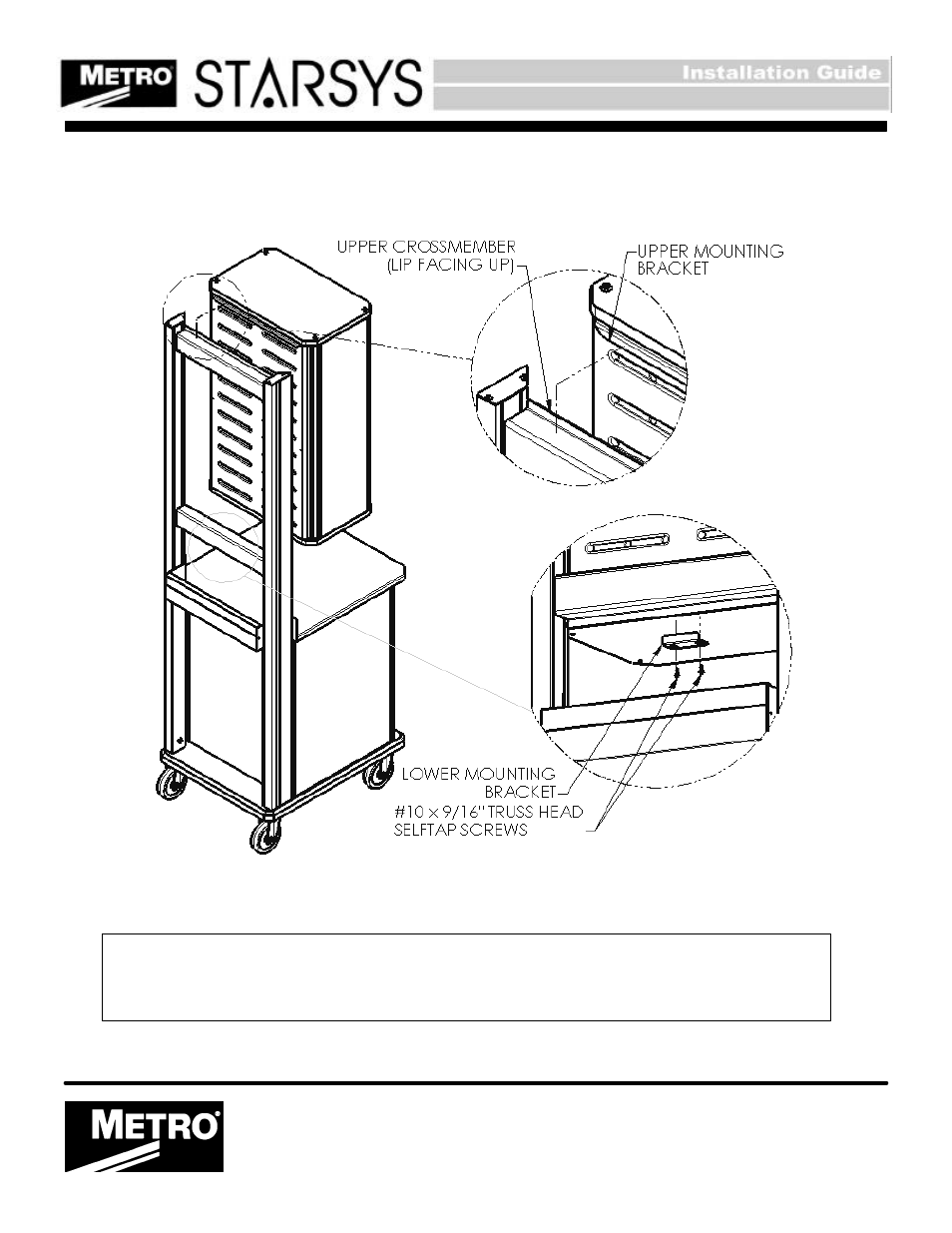

1. HANG OVERHEAD UNIT SO THAT THE UPPER MOUNTING BRACKET HOOKS ONTO THE UPPER
CROSSMEMBER.
2. ATTACH LOWER MOUNTING BRACKETS [SGL WD (1), DBL WD (2), TRL WD (2)] WITH SUPPLIED
SCREWS SO THAT THE BRACKET OVERLAPS THE LIP ON THE BOTTOM CROSSMEMBER.
FIGURE 11.
