13
Appendix Tips Settings Playback Connections Contents

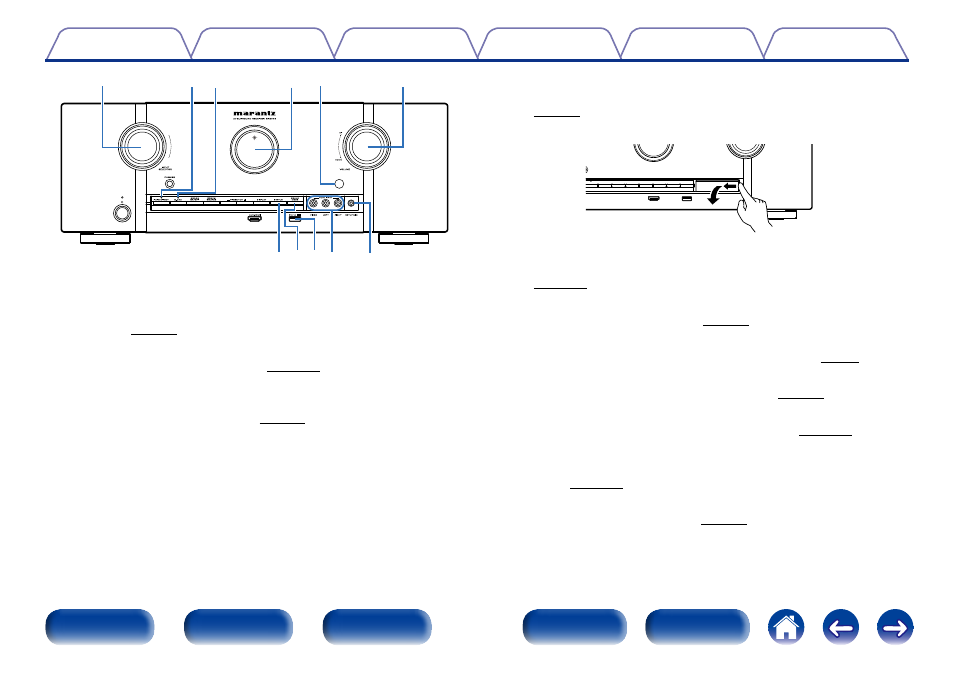

Front panel Display Rear panel Index Remote
W1 Q8 Q9 W0 Q7 Q6
Q3 Q2 Q4 Q1 Q5
Q1 STATUS button
Each press of this switches the status information that is shown on the
display (vpage 56).
Q2 SOUND MODE button
This switches the sound mode (vpage 108).
Q3 USB port
Used to connect USB storages (such as USB memory devices) and the
USB cable supplied with iPod (vpage 41).
Q4 AUX1 INPUT connectors
Used to connect devices such as a video camcorder or game console
(vpage 39).
Remove the cap covering the connectors when you want to use them.
Q5 SETUP MIC jack
Used to connect the supplied Setup and measurement microphone
(vpage 161).
Q6 VOLUME knob
This adjusts the volume level (vpage 53).
Q7 Remote control sensor
This receives signals from the remote control unit (vpage 8).
Q8 Display
This displays various pieces of information (vpage 14).
Q9 M-DAX indicator
This lights when the M-DAX mode is selected (vpage 143).
W0 PURE DIRECT indicator
This lights when the PURE DIRECT mode is selected as the sound
mode (vpage 109).
W1 INPUT SELECTOR knob
This selects the input source (vpage 52).
