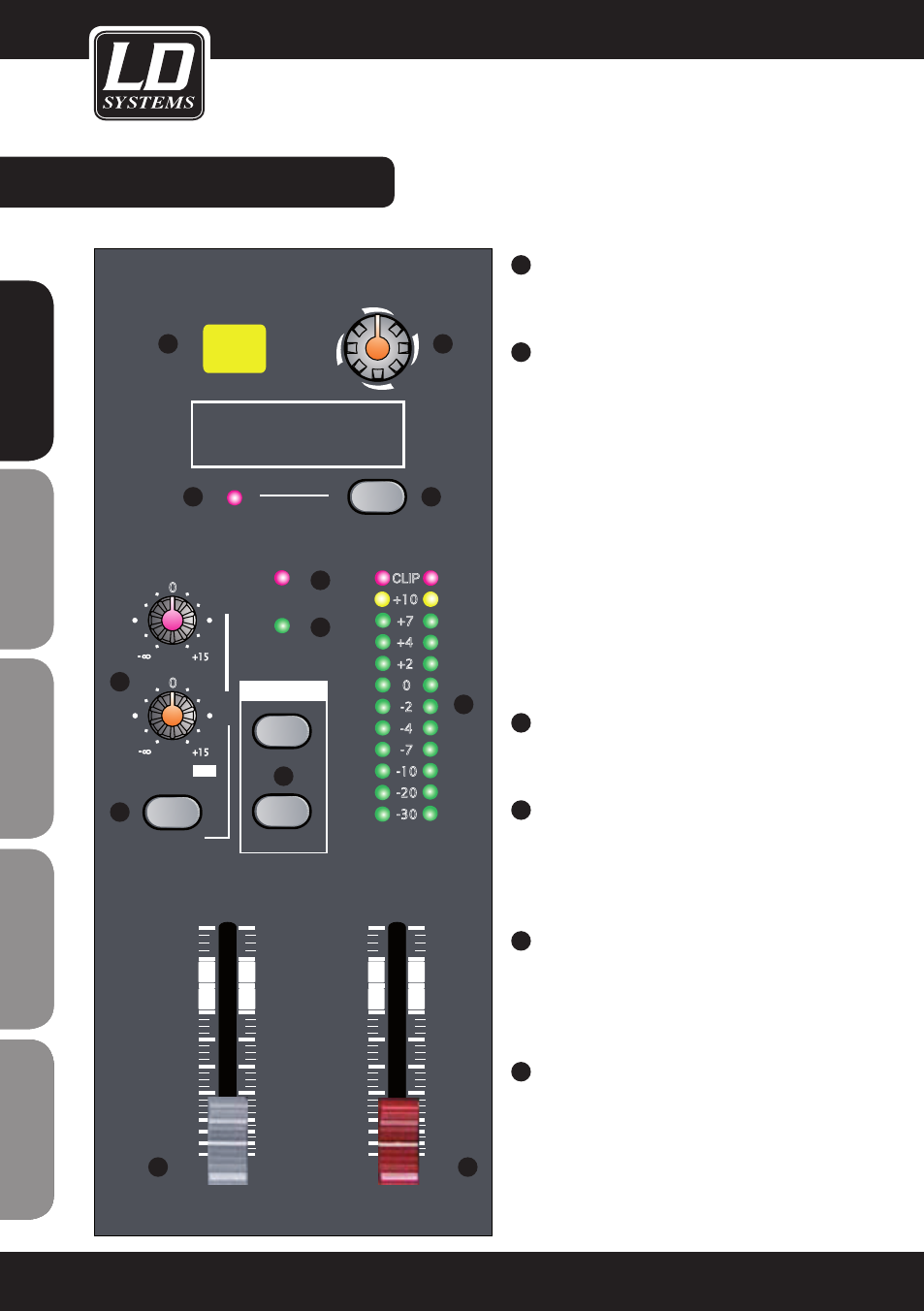

CONTROL ELEMENTS:
11 PHONES/CONTROL ROOM
This fader sets the amount of signal sent to
the CONTROL ROOM OUTPUT and PHONES.
12 2-TRACK SIGNAL PATH
If you push down the 2TK TO CONTROL
ROOM button, the 2 TRACK IN signal will be
routed into the CONTROL ROOM OUTPUT
and the level will be adjusted by the
PHONES/CONTROL ROOM knob.
If you push the 2TK TO MIX button the 2
TRACK IN signal will be routed into the MAIN
MIX OUTPUT and will be adjusted by the
MAIN MIX LEVEL knob.
Note: you can push down these two buttons
simultaneously, the 2 TRACK IN signal will be
rounted into both CONTROL ROOM OUTPUT
and MAIN MIX OUTPUT, and the level of two
output signals will be adjusted by respective
control knob.
13 OUTPUT LEVEL LED DISPLAY
This stereo 12 segments LED meter will indi-
cate the level of overall output signal.
14 AUX RETURN CONTROL
This switch routes the signal that is present
at the AUX RETURN 2 jacks to AUX 1 output
so that the effect can be heard in the
monitor mix.
15 EFX TO AUX
These two controls adjust the level of the
signal present at the AUX RETURNS 1&2
jacks. The signal is summed, or mixed into
the main L/R mix bus.
16 PHANTOM-LED
This LED indicates when the Phantom Power
is switched on.
