You can configure and control the projector via the network using RS-232C

commands.

Communication Port
The following two ports are assigned for the command control.

TCP #23

TCP #9715

Command Control Settings (25)
Configure the following items from a web browser when command control is used.

Example: If the IP address of the projector is set to 192.168.1.10:

• Command control is not available via communication port (TCP

#9716) that is used for the e-Shot transmission function.

NOTE

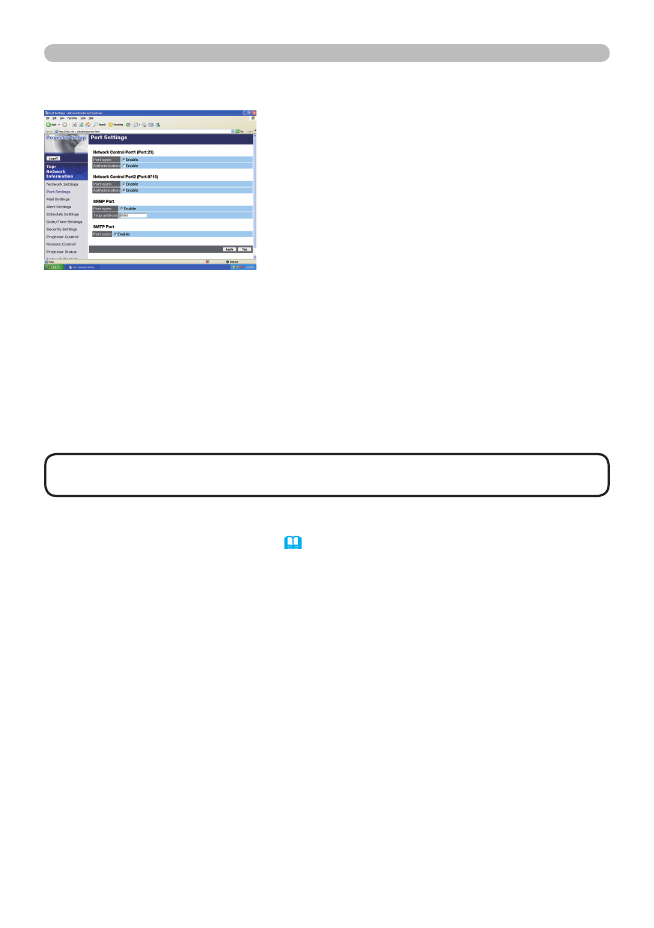

1) Enter

[http://192.168.1.10/] into the address bar of the web browser.

2) Enter the Administrator ID and Password and click

[Logon].

3) Click

[Port settings] on the main menu.

4) Click the

[Enable] check box to open [Network Control Port (Port: 23)] to use

TCP #23. Click the

[Enable] check box for the [Authentication] setting when

authentication is required, otherwise clear the check box.

5) Click the

[Enable] check box to open [Network Control Port (Port: 9715)] to

use TCP #9715. Click the

[Enable] check box for the [Authentication] setting

when authentication is required, otherwise clear the check box.

6) Click the

[Apply] button to save the settings.

4. Utilize projector – Advanced -

4.8 Command Control via the Network
