2. Equipment connection and network setting

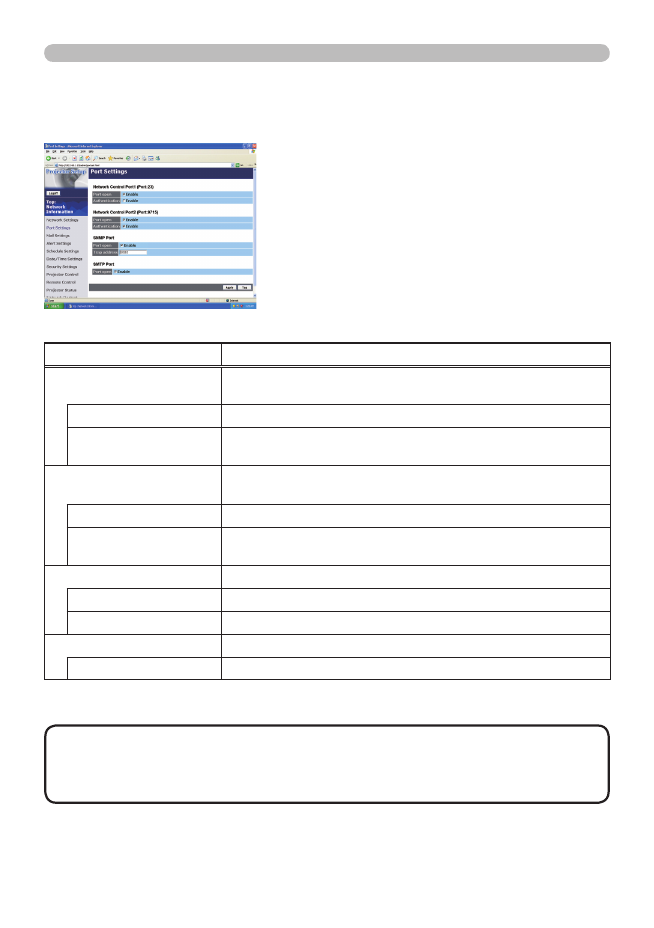

2.5.3 Port Settings

Displays and configures communication port settings.

Click the

[Apply] button to save the settings.

• The new configuration settings are activated after restarting the

network connection. The network connection must be restarted when the

configuration settings are changed. The network connection can be restarted

using

[Network Restart] on the main menu.

NOTE

Item

Description

Network Control Port1

(Port:23)

Configures command control port 1 (Port:23).

Port open

Click the

[Enable] check box to use port 23.

Authentication

Click the

[Enable] check box when authentication is required

for this port.

Network Control Port2

(Port:9715)

Configures command control port 2 (Port:9715).

Port open

Click the

[Enable] check box to use port 9715.

Authentication

Click the

[Enable] check box when authentication is required

for this port.

SNMP Port

Configures the SNMP port.

Port open

Click the

[Enable] check box to use SNMP.

Trap address

Configures the destination of the SNMP Trap in IP format.

SMTP Port

Configures the SMTP port.

Port open

Click the

[Enable] check box to use the e-mail function.

2.5 Configuring and controlling the projector via a web browser (Continued)
