42

Open browser when it is possible to communicate with projector. Corresponding

browser is Internet Explorer 5.5 or later.

Specify http://(projector IP address)/ to start.

For example, http://192.168.1.10/

(Input this URL when IP address is not changed.)

After start up, enter your ID and password, and click [Logon]. Following window

appears as shown in fig. 2.6.a.

You can use your Web browser to remote control the projector once the projector

is properly configured and connected to your PC via the wireless LAN card or via

wired LAN.

2.6 Utilize Web Remote Control

• Do not attempt to control the projector with the projector's remote

control and via your Web browser at the same time. Attempt to do so may

causes a projector operational error.

NOTE

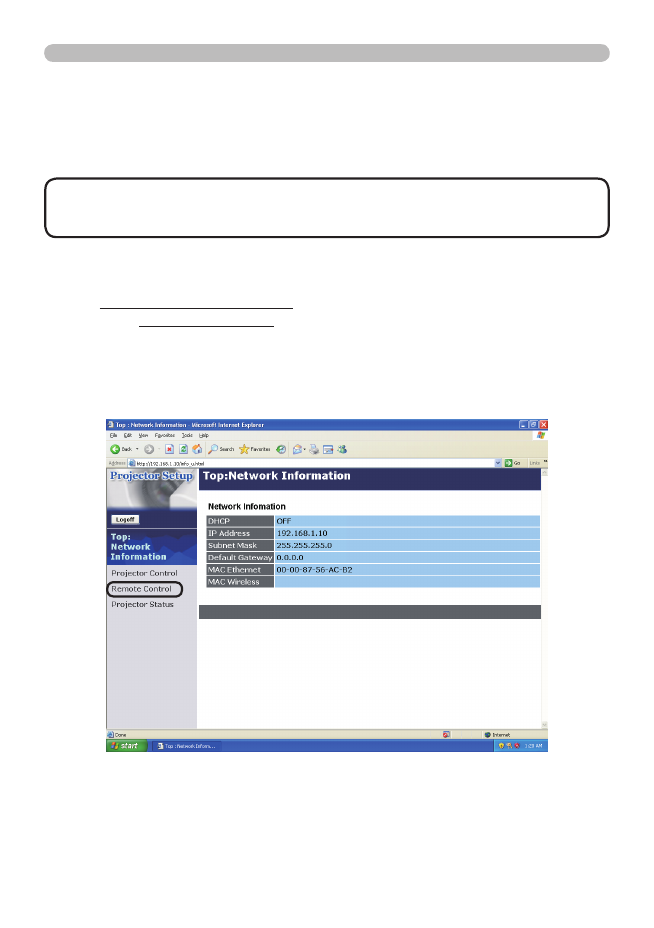

Fig. 2.6.a Utility selection window for Web Remote Control

2. Equipment connection and network setting
