4. Utilize projector – Advanced -

4. Utilize projector – Advanced -

This section explains how to connect multiple PCs.

4.1. Utilize “MIU Live Viewer” – Advanced -

4.1.1. Connect multiple PCs with one projector (Multiple PCs

connection)

A projector can be connected with up to 4 PCs to display multiple windows.

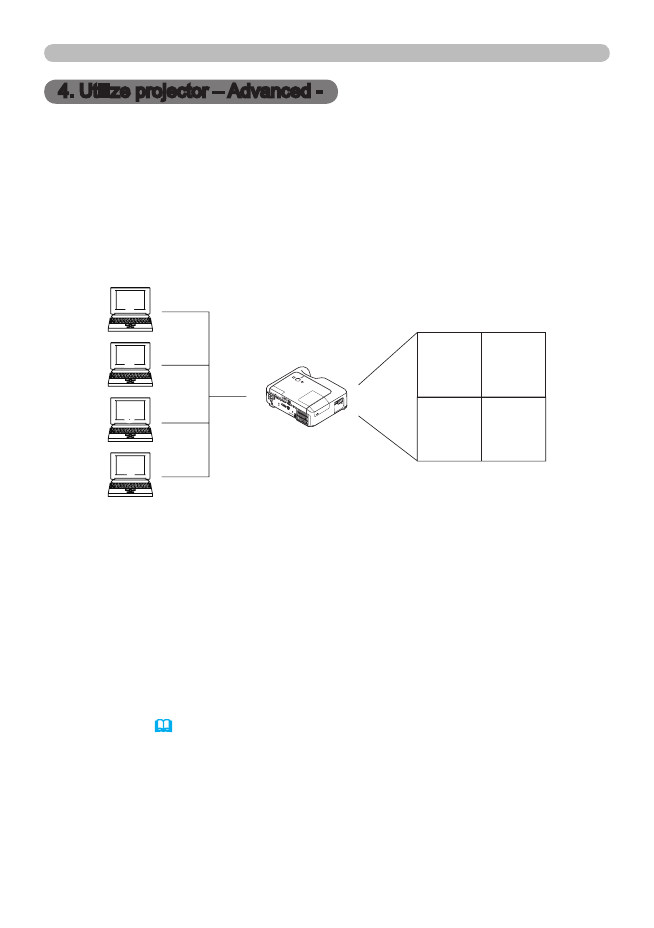

Fig. 4.1.1.a Multiple PCs connection outline

Followings are required for multiple PCs connection.

- From 2 to 4 PCs (“MIU Live Viewer” installation is required to all

PCs to connect.)

- Projector: 1 unit

- Straight LAN cable: Required qty*

- Ethernet hub

* It is required to make all wireless PCs enabling wireless communication when

doing multiple PCs connection as wireless LAN connection. SD-Link11g card for

projector is required. If it is communicated by Infrastructure mode, access point

is necessary. (16)
