14 Radial Winch 46.2 ST Installation and Maintenance Manual

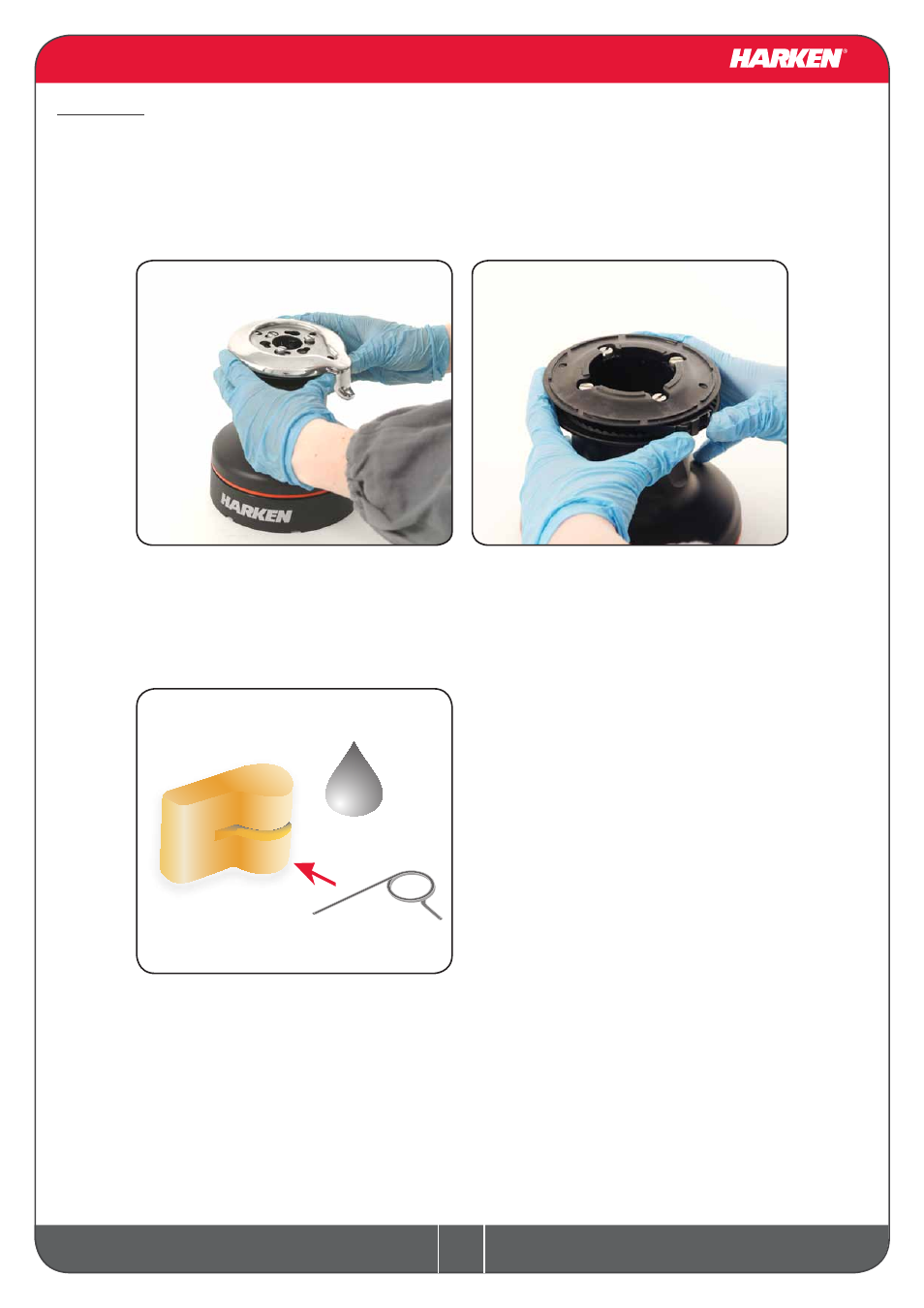

Assembly
Make sure that the holes and drainage channels in the base of the winch are not obstructed
Assemble the winch in the reverse order of the sequence in the section on disassembly.
To tighten bolts, use the torque indicated in the disassembly procedure.
When positioning the stripper arm,
align the peeler with it.
If the jaws have been disassembled,
insert peeler between the two jaws,
taking care that the letters TOP on the
peeler are facing upwards.
OIL
To assemble the pawls
Correctlypositionthespringinitshousing
asshownatleft.Holdthespringclosed
andslidethepawlintoitshousing.Once
inposition,checkthatthepawlscanbe
easilyopenedandclosedwithafinger.
IncaseofdoubtconcerningtheassemblyprocedurecontactHarken ® TechService:
[email protected]
