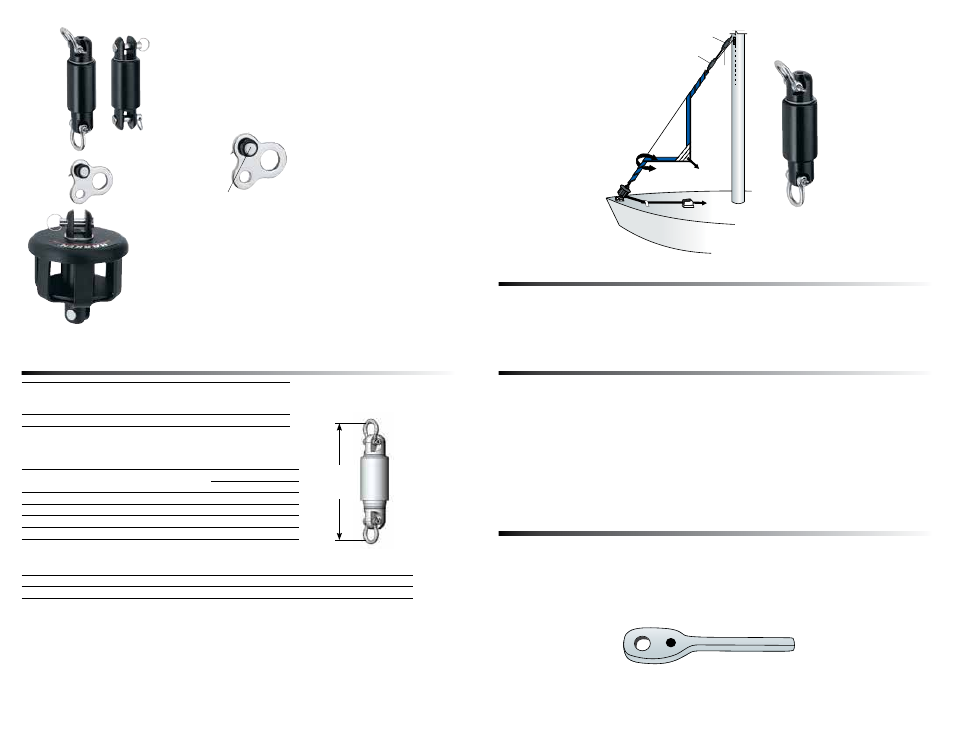

Harken 483 Small Boat furling kit - Manual (Page 2)

Furling Attachment to Boat
Check mast fitting to make sure there is a tang to fit the clevis pin and jaw width of the upper halyard swivel.
Check the chainplate to make sure the drum assembly will fit.
Rigging work
Make sure you have a stay made up with the correct hardware and with swivel correctly captured on stay.
Consult Sailmaker to make sure sail is compatible with hardware. See below.
• Have fairleads or block and cleat to secure line.
• Purchase furling line per specifications above.
• Check halyard clearance of upper swivel.
Line (Not Included)
Sailmaker Eye
Preassembly
assembly Checklist
Headstay Wire
Consult the pin-to pin-lengths for the upper swivel, adapter tang and the drum assembly. Make up wire
so that it has an ¼" eye to mate with the upper swivel assembly. The lower end requires a fork to mate
with the HCP649 Tack Adapter Tang. A sailmaker eye may be used as an alternative. The eye consists
of a swage marine eye with a hole designed for lashing or shackling the tack to the terminal. Sailmaker
eyes are available from rigging supply companies.
HCP650 2 Neoprene O-ring
HFS118 1 Cotter pin 1/16 X .500 18-8
HSB99 2 Clevis pin 1/4 X .672 SS
HCP649 Tang
Part
No.
Maximum
working load
Max luff
wire Ø
Jaw
width
Clevis pin
Ø
lb kg in mm in mm in mm
483 950 431 5 / 32 4 5 / 16 8 1 / 4 6
Specifications
Pin to Pin Lengths
Use for determining sail luff length.
464
5 11 / 16 "
(145 mm)
Part
No. Description
Length
in mm
164 Swivel Assembly 2.5 64
464 Hoistable Swivel Assembly 5.696 145
HCP649 Tack Adapter Tang .75 19
165 Drum Assembly 2.5 64
164 Upper Swivel Assembly
464 Hoistable Swivel Assembly
Adapter Tang
165 Drum Assembly
Adapter Tang Assembly
The hoistable ball bearing swivel is installed on headstay so you can raise or lower sail without removing
headstay. The hoistable swivel is independent of the headstay, allowing you to tension the luff separately from
the mast rake. The adapter tang assembly provides a “Y” attachment to connect both stay and sail tack to the
lower unit.
How It Works
Important! Make sure to have the hoistable halyard swivel installed on the wire before ends are
swaged in place. Make sure the top side of the halyard swivel with circlip ring facing is towards the
top as shown.
Line Ø Measure distance from furler to cleat and add
5/32" (4 mm) 10' (3 m)
464 Hoistable Swivel Assembly
Halyard
Unfurl
Furl
Upper swivel
Hoistable swivel
