Views
The Site View (and the buttons along the top toolbar) has been explained previously in this manual, as
well as the status indicators. You will find that many of the interface elements are used on many screens
so they quickly become familiar. In the following sections, each of the views is shown and important
status indicators are explained.
The System View
The System View screen, shown below, consists of separate areas that together provide the details of the
overall status of the system. All ADVANCE components are controlled by a card at the head end, or card
rack. If a printer is connected, its status is shown at the bottom right of the view.
Selecting (clicking on) an individual card will take you to that card’s view screen. In the following
sections, each card view and its “child” views are displayed.

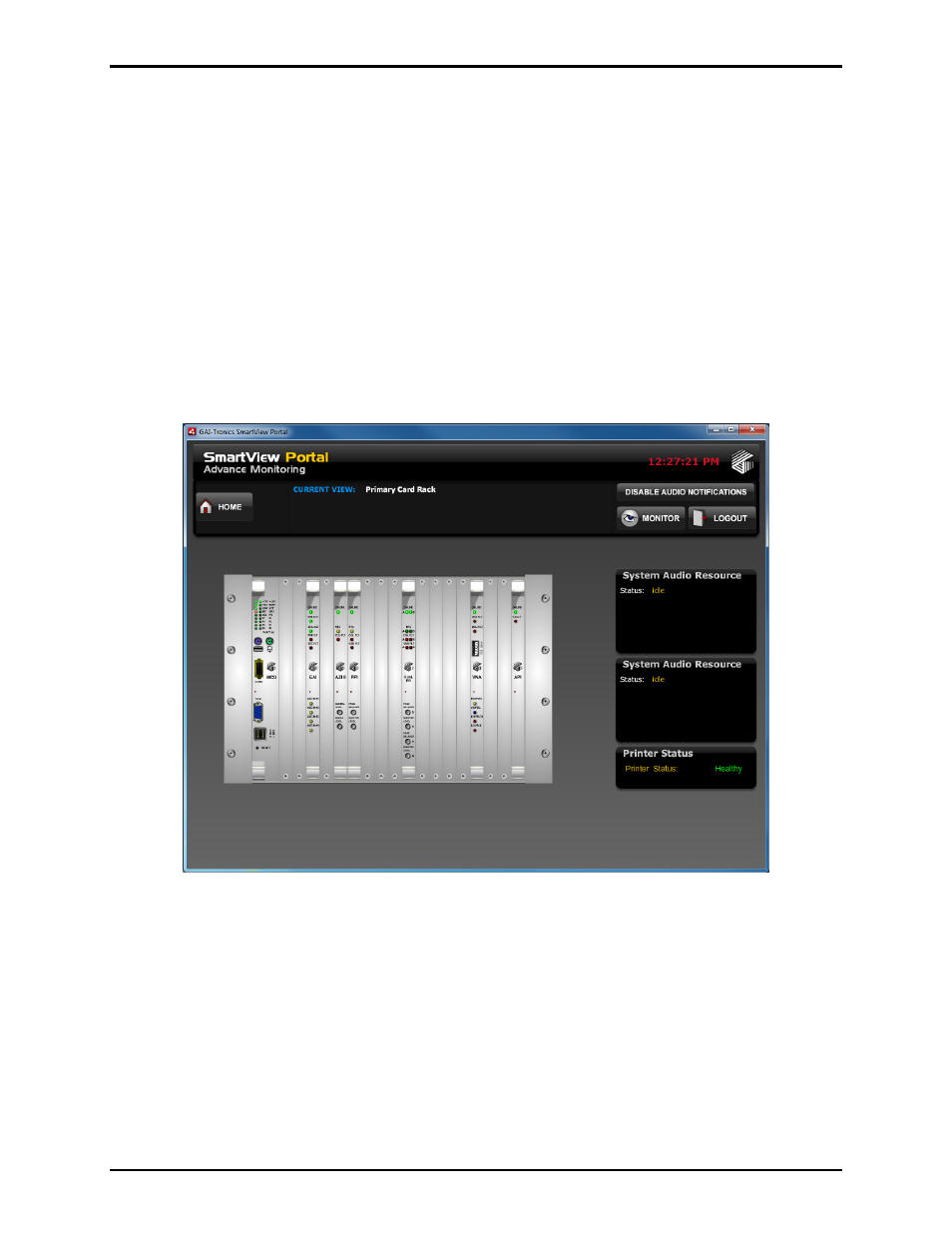

Figure 31. System View Screen
