Ir and rs-232 operation, Ir control, Scenario 1 – FSR HD-H70-SP User Manual
Page 13
13
IR and RS-232 Operation
IR Control
The IR pass-through function in the Transmitter and Receiver allows you to
control the source from the Display’s location or control the Display from the
source's location.

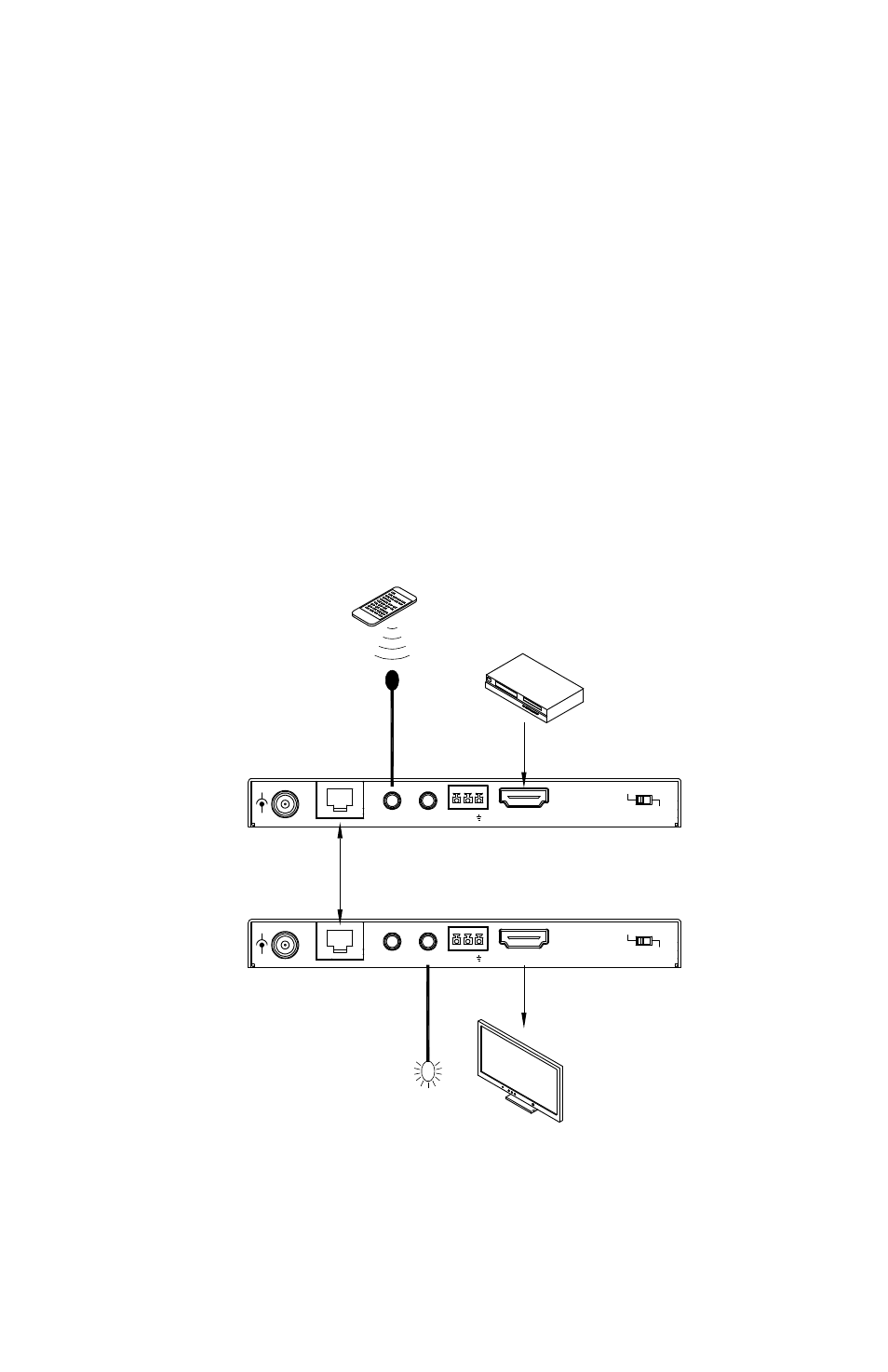

Scenario 1
In this case, IR IN on the Transmitter is connected to an IR receiver cable and IR
OUT on Receiver is connected to an IR emitter cable. The TV can be controlled
from the Transmitter’s location with the TV remote.
IR IN
IR OUT
Tx Rx
HDMI OUT
NORMA L
UPD ATE
+
-
IR IN
IR OUT
Tx Rx
HDMI IN
NORMA L
UPD ATE
+
-
HD-H70-SP-Rx
HD-H70-SP-Tx
ETHERNET
BLU-RAY
DVD
TV
IR RECEIVER
CABLE
TV REMOTE
IR EMITTER
CABLE
HDBaseT
