Chapter 2 Installation Instructions
14

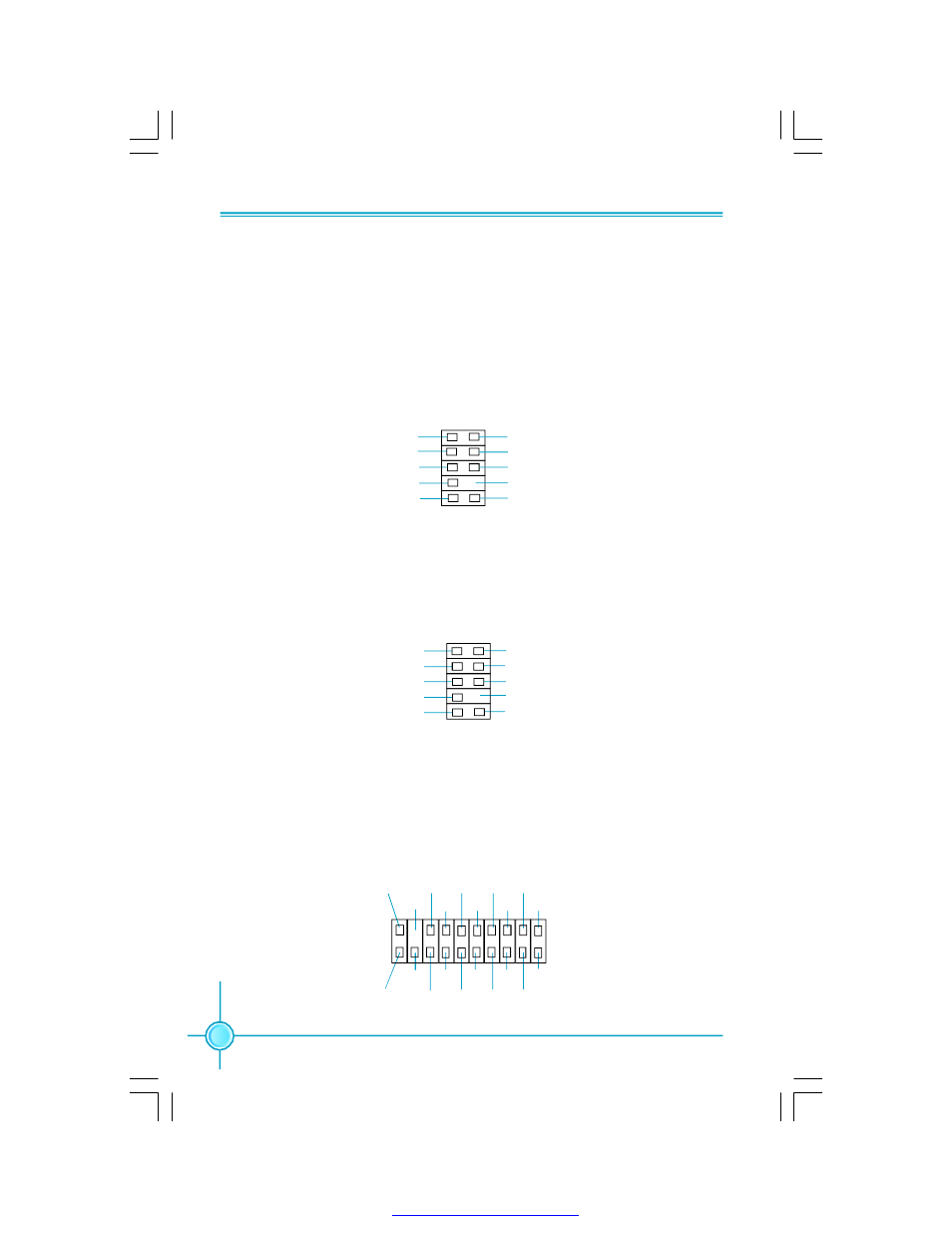

Audio Interface: F_AUDIO
For 6-Channel (optional)
The audio interface provides two kinds of audio output choices: the Front Audio,
the Rear Audio. Their priority is sequenced from high to low (Front Audio to Rear
Audio). If headphones are plugged into the front panel of the chassis (using the
Front Audio), then the Line-out (Rear Audio) on the rear panel will not work. If you
do not want to use the Front Audio, pin 5 and 6, pin9 and 10 must be short, and
then the signal will be sent to the rear audio port.
F_AUDIO
MIC_IN
MIC_PWR
N A
AUD_OUT_L
AUD_OUT_R
MIC_GND
+5VA
AUD_RET_R
E mpt y
AUD_RE T_ L
10 9
2 1
For 8-Channel (optional)
The audio interface provides two kinds of audio output choices; the Front Aud-
io, the Rear Audio. Their priority is the same .Front Audio supports re-tasking
function.
TPM Connector: TPM (optional)
The TPM(Trusted Platform Module) provides the ability to the PC to run
applications more secure and to make transactions and communication
more trustworthy. To utilize this function, you should purchase additional
devices and install the driver.
F_AUDIO
PORT2_L
SENSE_SEND
PORT1_L
PORT1_R
AUD_GND
PRESENCEJ
PORT2_R SENSE1_RETURN
Empty
SENSE2_RETURN
1
TPM
CK_33M_TPM
Empty
L_FRAMEJ
2
1
20
19
GND
ICH_P_PCIRSTJ
NC
L_AD3
3D3V_SYS
L_AD0 NC
GND
NC
LPCPDJ
L_AD2
L_AD1
GND
NC
SERIRQ NC
GND
