Chapter 2 Installation Instructions
7
CPU
This motherboard supports single Intel ® Pentium Extreme Edition, Pentium ® D,
Pentium ® 4,Celeron ® D processors in an LGA775 package with a Front Side Bus
(FSB) of 800/533 MHz. It also supports Hyper-Threading technology.
For the detailed CPU support list on this motherboard, please visit the websi-
te: http://www.foxconnchannel.com
Installation of CPU

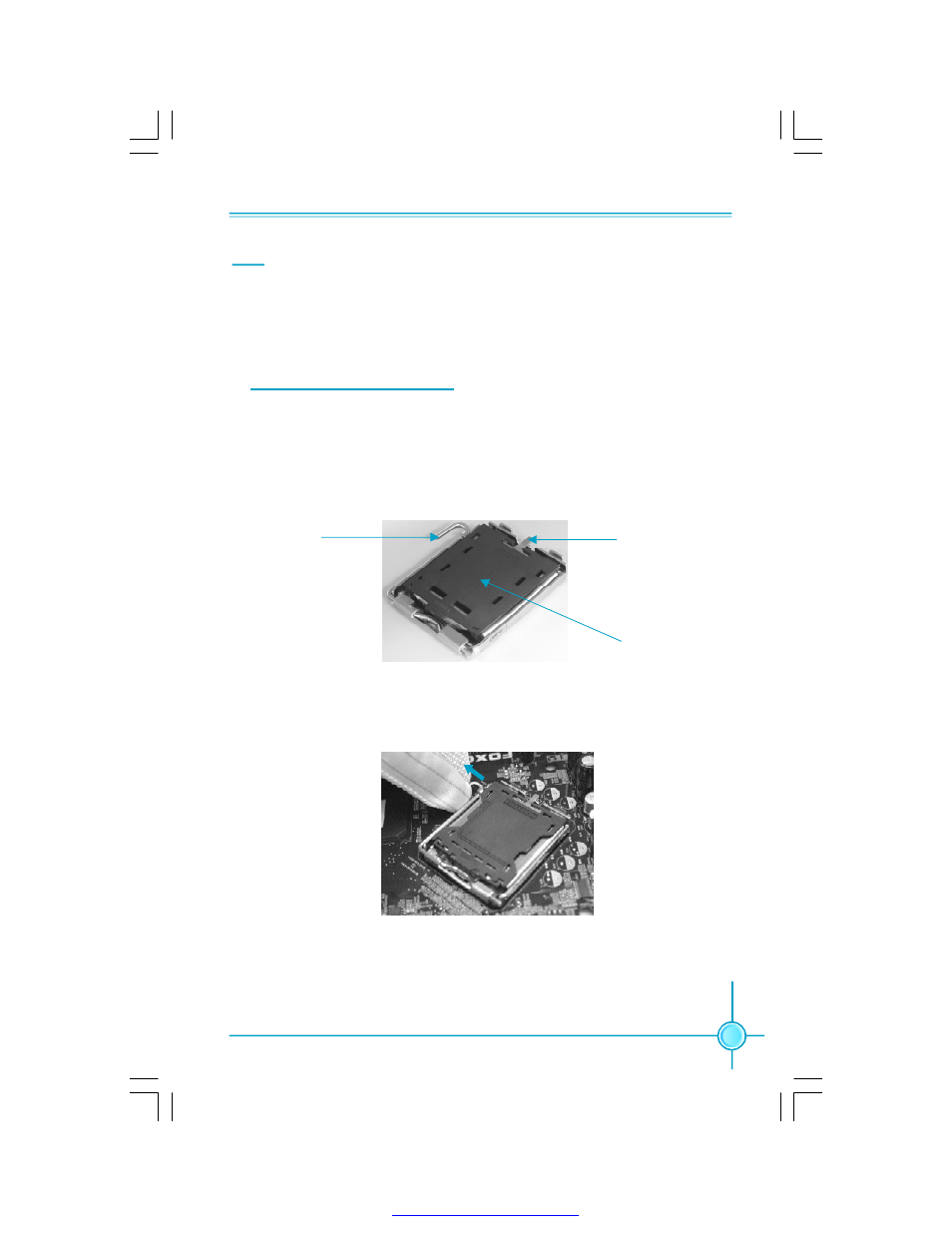

Below is the CPU socket illustration. Follow these procedures to install a CPU.
Load lever Load plate
Protective cover
1. Use thumb and forefinger to hold the hook of the load lever and pull the lever
down and away from socket to unlock it. Lift the load lever.
2. Push down the rear tab with your forefinger to bring the front end of the load
plate up slightly. Open the load plate with thumb. Be careful not to touch the
contacts.
