Chapter 1 Product Introduction
4

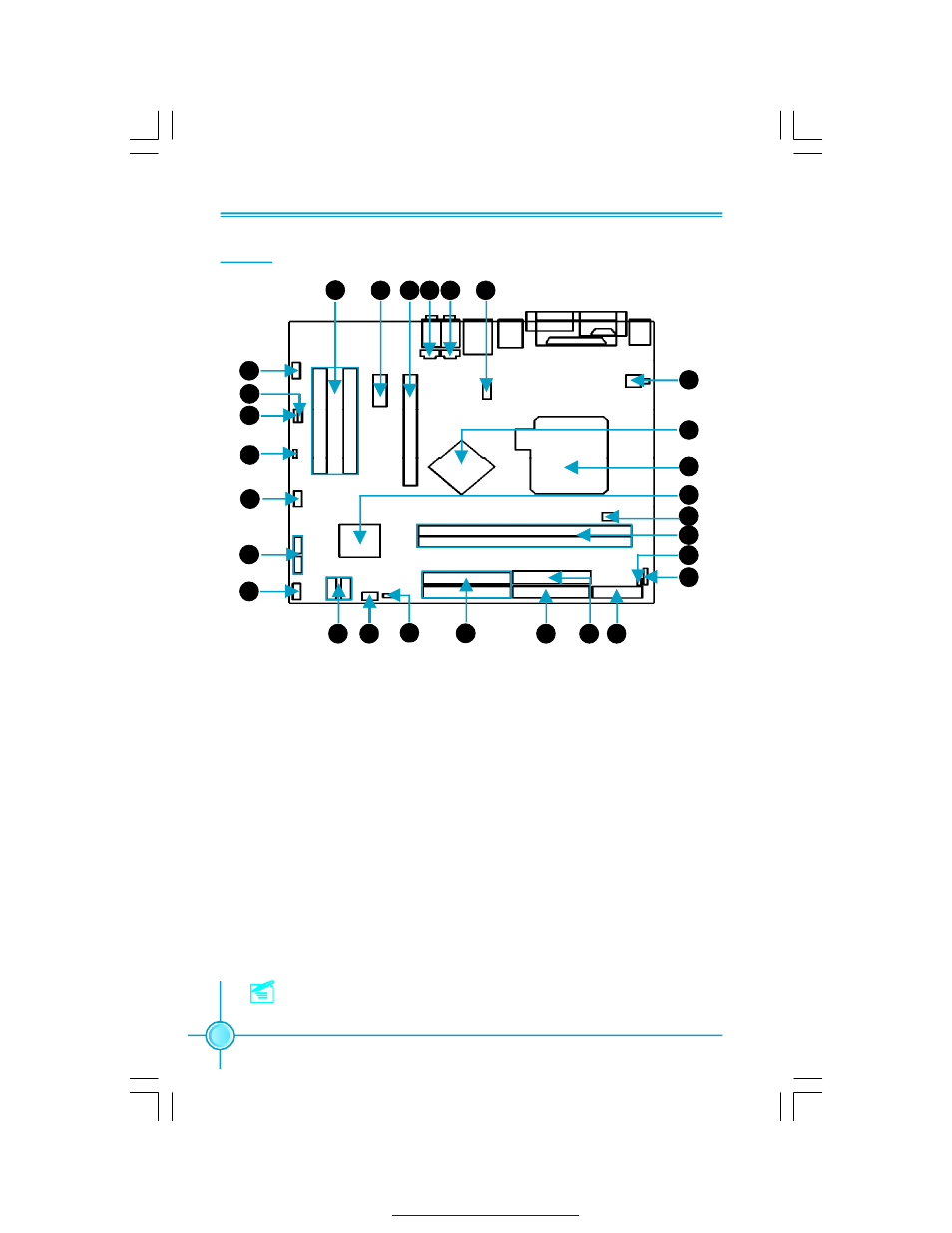

Layout
Note: The above motherboard layout is provided for reference only,
please refer to the physical motherboard.
27
11 14
1
2
3
4
7
5
6
25 27 23
22
17
15
16
26
13 12 9 8 10
18
19
20
22
21
24 28
1.Front Audio Connector
2.Speaker Connector (optional)
3.S/PDIF OUT Connector
4.Clear CMOS Jumper
5.1394 Connector (optional)
6.Front USB Connector
7.Front Panel Connector
8.SATA Connector
9.SYA_FAN Connector
10.W P_EN Connector (optional)
11.IDE Connectors
12.Floppy Connector
13.24-Pin ATX Power Connector
14.TPM Connector (optional)
15..IrDA Connector(optional)
16.Chassis Intruder Connector
17.DDR2 DIMM Slots
18.CPU_FAN Connector
19.South Bridge: SiS966L Chipset
20.CPU Socket
21.Nouth: SiS 662 Chipset
22.ATX 12V Power Connector
23.COM2 Connector
24.AUX_IN Audio Connector
25.CD_IN Audio Connector
26.PCI Express x16 Slot
27.PCI Express x1 Slot
28.PCI Slots
