Dynacord DPA 4260 User Manual
Page 21
21
Power Outputs – AUDIO TRANSFORMER OUTPUTS
The two integrated output transformers convert the power amplifier’s nominal output voltage to the com-
monly used loudspeaker line voltage standards – 25 V, 70 V, and 100 V. These voltages are simulta-
neously present at the correspondent floating outputs of the binding post strip. The two power amplifier
channels can be operated using any possible output voltage combination. Simultaneous operation of low
impedance loudspeaker systems and floating loudspeaker lines on a single power amplifier channel is
possible as well.
Caution
It is possible that during operation shock-hazard output voltages can be present at the
power output connectors (>34 V peak value). Therefore, the connected loudspeaker
lines have to be installed in accordance to applicable security standards and regulations.
When installing and operating 100 V-loudspeaker networks, compliance to the VDE
regulation DIN VDE 0800 is mandatory. Especially, if a 100 V-loudspeaker network
is included in alarm system applications, all security standards have to be in accordance
to the security class 3 standard. Before the first operation of the power amplifier, the
loudspeaker terminal strip has to be covered using the supplied protection cover.
Power Outputs - Isolated Outputs 70 V and 100 V
To reduce line attenuation effects when the distance between power amplifier and loudspeaker systems
exceeds 50 meters, it is recommended to employ loudspeaker systems with 100 V or 70 V line transfor-
mers, which also allows conveniently distributing the output power to the individual loudspeaker systems.
It is possible to connect as many loudspeaker systems until the total power consumption of the loudspea-
ker network equals the nominal power handling capacity of the power amplifier; while not declining the
nominal load impedance of the power amplifier outputs.
For details on nominal power handling capacity and nominal load impedance of the amplifier’s individual
power outputs, please refer to the specifications in the appendix.
100V
6W
100V
30W
100V
6W
100V
30W
70
100
0
100
70
0
ISOLATED OUTPUTS
DIRECT OUTPUTS
16 x 30W
83 x 6W
+
+
25V
100V
+
70V
+
BRIDGED
1200W/8
600W
100V
25V
+
70V
+
4
DUAL
B
A
+
+
+
LOW IMPEDANCE
AUDIO TRANSFORMER OUTPUTS
B
A

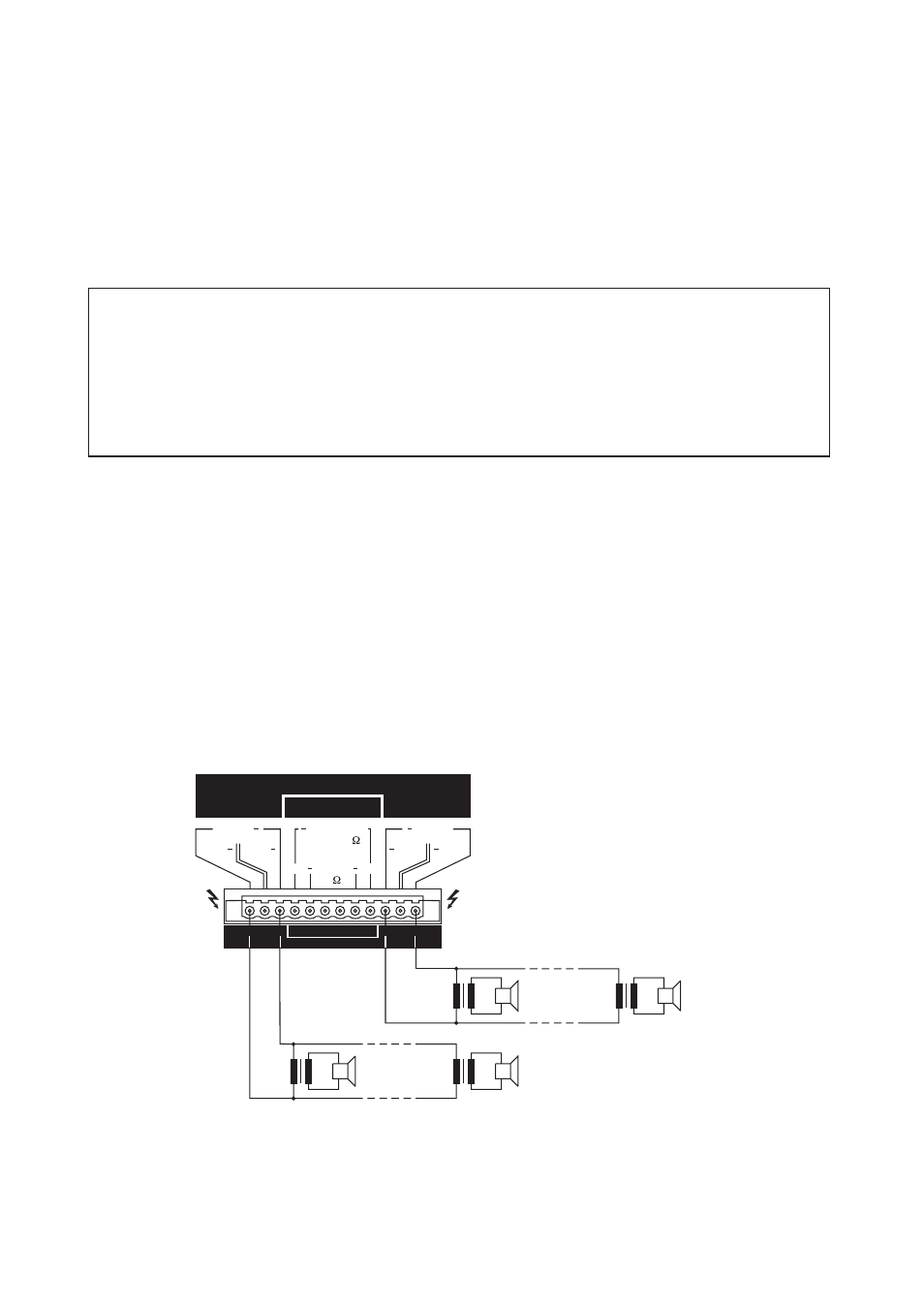

figure: example configuration – DPA 4260 with 100 V loudspeaker systems – maximum load
using 30 W / 100 V and 60 W / 100 V loudspeaker systems
