4.4 LED Drivers
In each scoreboard, one or more LED drivers perform the task of switching LEDs on and off.
LED drivers are located inside of an enclosure and mounted to a tray. Refer to Figure 20 to
view the typical components of a driver tray.
All scoreboards in this manual use 16-column drivers (Figure 20). Refer to the component
location drawings in Appendix A to determine the number of drivers for a particular
scoreboard model.
When troubleshooting driver problems, several LEDs provide diagnostic information.
The number of LEDs and their function depends on the driver type.
Note: While it is necessary to have the scoreboard powered on to check the LED indicators,
always disconnect scoreboard power before servicing.

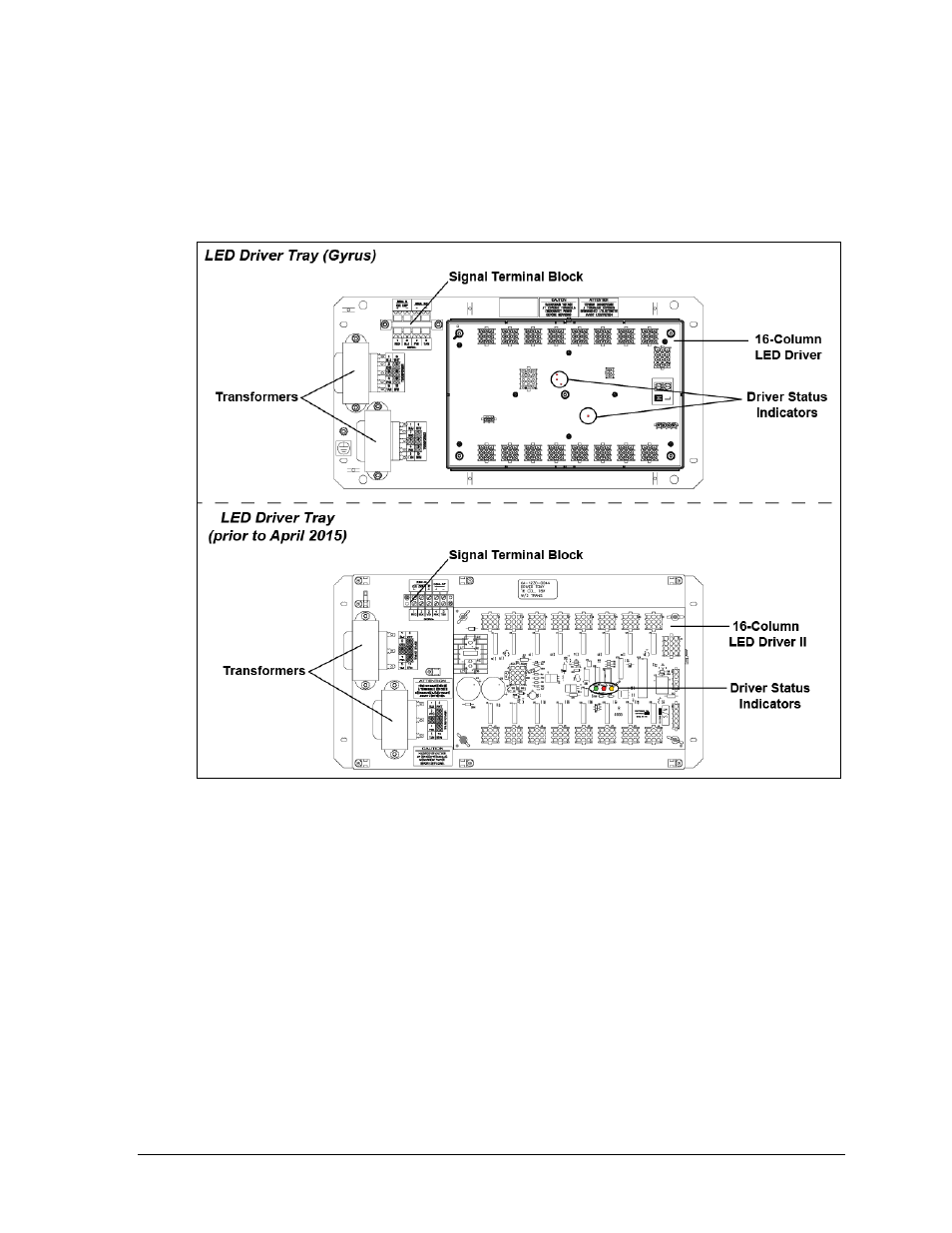

Figure 20: Driver Tray Components (Enclosure Cover Removed)
