Electrical Installation 7
Section 3: Electrical Installation
CAUTION: Only qualified individuals should access the electrical components of the display and its
associated equipment. It is the responsibility of the electrical contractor to ensure that all electrical
work meets or exceeds local and national codes.
Daktronics engineering staff must approve all changes or the warranty will be void.
3.1 Installation Overview
The diagram shown in Figure 9 illustrates a typical wired setup between an indoor
scoreboard and the control system. Daktronics part numbers are shown in parentheses.
Note: Control signal cable and some junction boxes are not provided as part of this
system and can be purchased locally or from Daktronics.

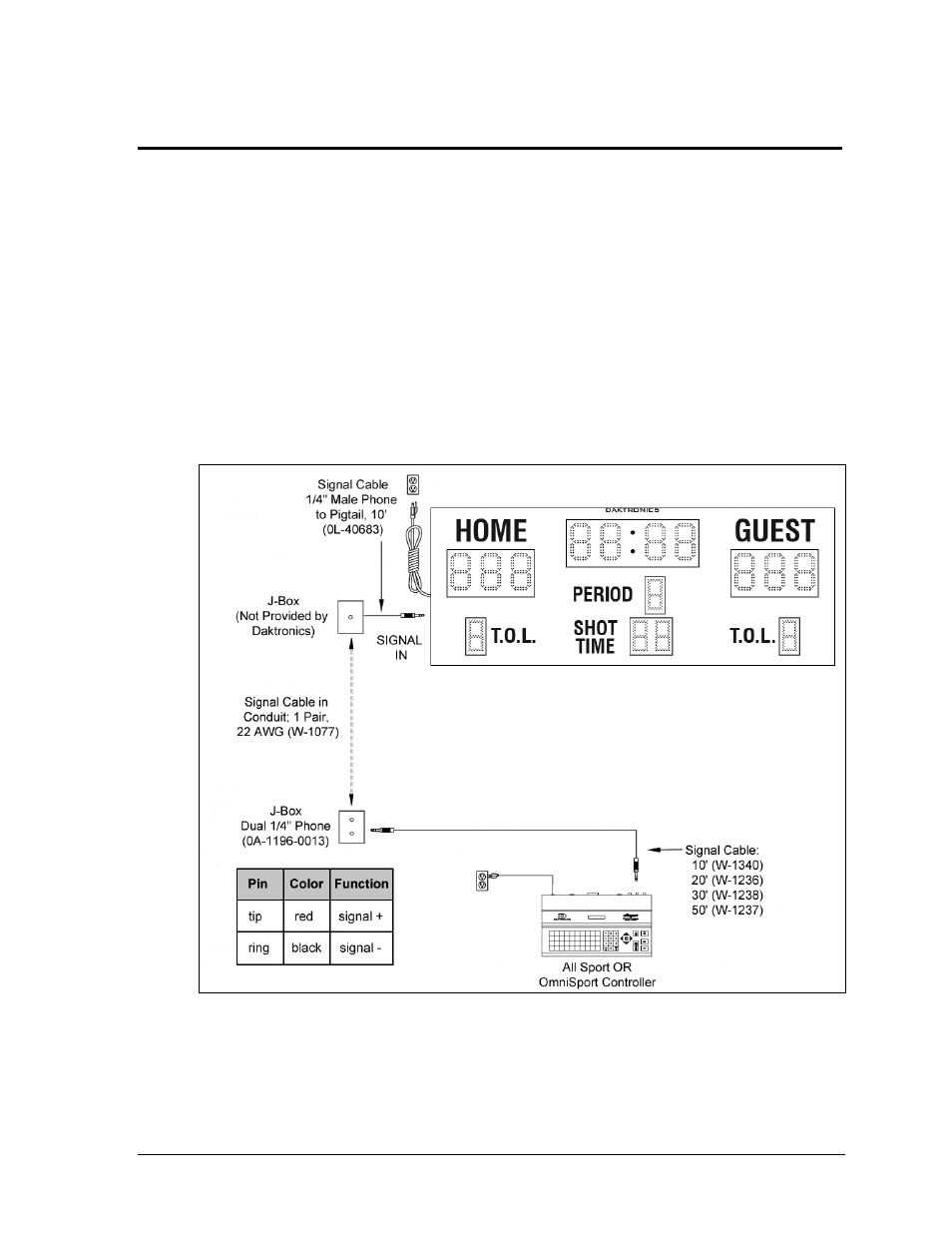

Figure 9: Wired Installation (Indoor)
