4 Mechanical Installation
Exceeding load angles or weight limits could cause the
bolts in the scoreboard cabinet to buckle, resulting in
serious damage to the scoreboard or injury to personnel.
Also, loads should be applied directly in the plane of the
eyebolt as shown in Figure 5.
Note: Daktronics assumes no liability for damages
resulting from incorrect setup or lifting methods.
Eyebolts are intended for lifting only. Do not attempt
to permanently support the display by the eyebolts.
2.2 Wall Mounting (Indoor or Outdoor)
1. Use the eyebolt(s) at the top of the scoreboard
frame to lift the display into position for mounting.
2. Secure the display to the wall by attaching
mounting hardware through all holes on the top
and bottom rear flanges of the display to a pre-
drilled hole in the wall (Figure 6).
Note: If a WP-2102 section is included, be sure to
mount it to the wall first, followed by the WP-2101
section on top of it.
For mounting locations, weights and hardware
suggestions, refer to the model-specific mechanical
specification drawings listed in Appendix A.
Due to the variety of wall materials used in sports facilities, Daktronics cannot anticipate a
user’s individual installation needs or provide mounting hardware suitable for every
installation. Choose a method of installation that will safely support the weight of the display.

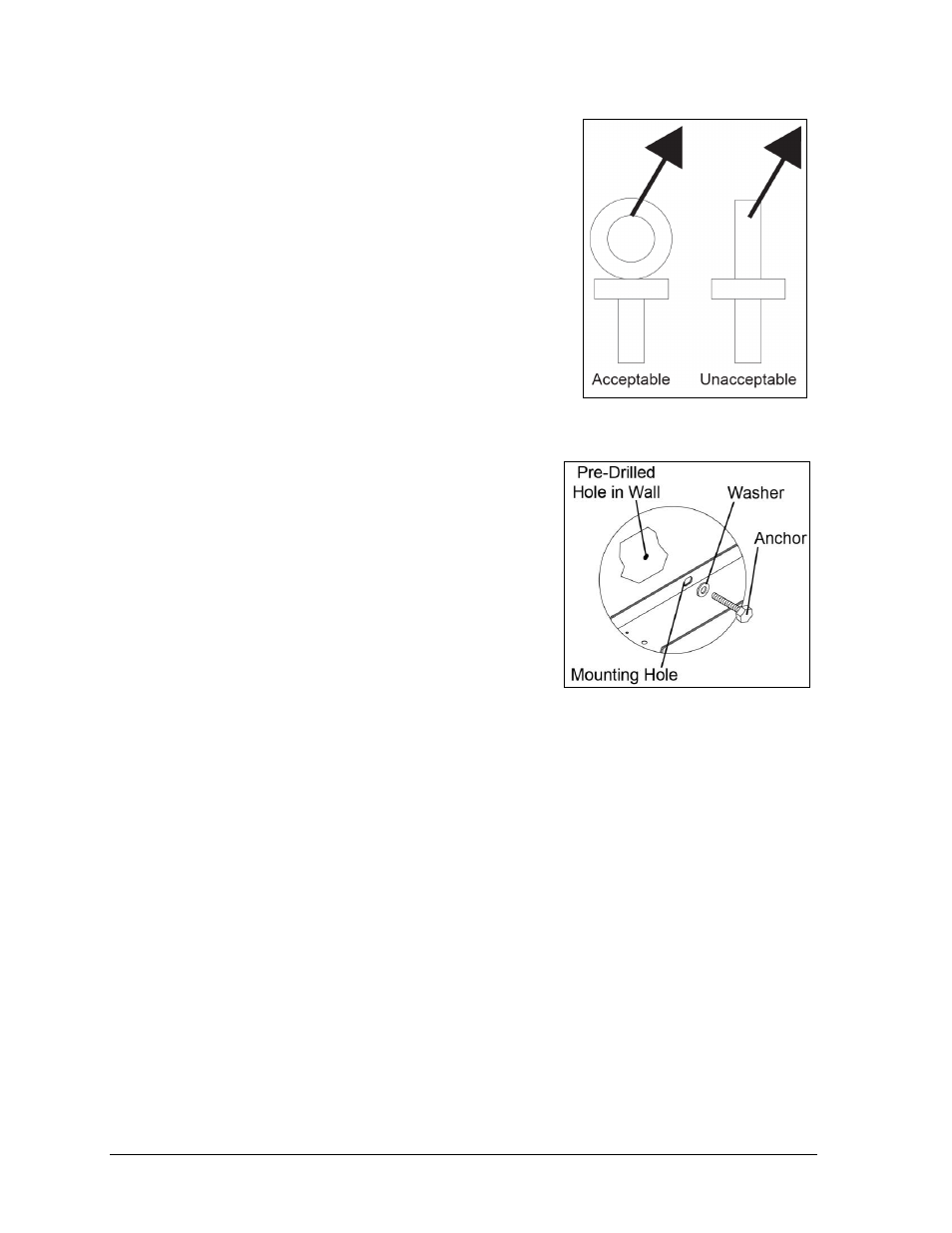

Figure 5: Eyebolt Plane Load
Figure 6: Wall Mounting
