Save Settings
2.1 - Unpacking
Remove the CR1200 from its package and inspect it for damage. If the unit was damaged during shipping, call Code
at (801) 495-2200.
The standard CR1200 was ordered and shipped with your choice of USB, RS232, or PS2 cable interface. The USB
version is available in 6 foot or 12 foot cable lengths. RS232 cabled units include a power supply (US/Europe/SA/UK/
Asia) designated at ordering. The connector to the power supply is integrated into the RS232 cable.
The CR1200 is shipped in an approved shipping container. Please keep your packing materials and use them if you
need to return your equipment to Code for servicing.
2.2 - Installing

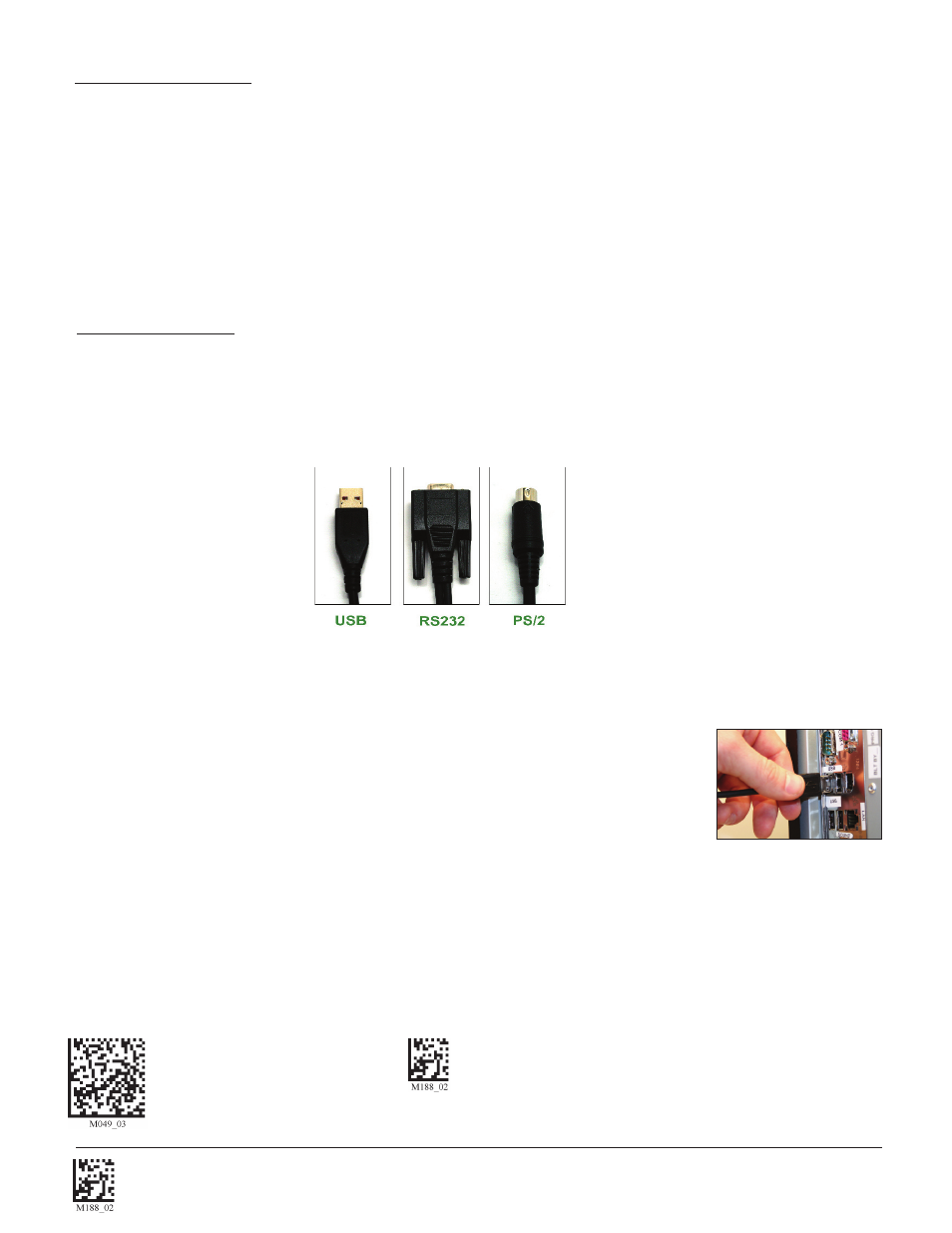

Figure 2.1 shows the connectors for the CR1200 cables. Cables are connected to the CR1200 with an 8-pin DIN
connector. This section tells you how to attach the CR1200 to a host and configure the reader based on options
available for each cable type.
After installation, the CR1200 will be ready to operate in the Dynamic Optimization Technology (DOT) mode described
in Section 4.1.
Figure 2.1
2.2.1 - USB Cable Connection and Settings
The USB Cabled CR1200 communicates with the host computer over a USB cable using the USB communications
protocol.
Figure 2.2
2.2.1.2 - USB Cable Instructions
To connect the CR1200 to your host computer via USB interface:
1. Attach the USB cable to CR1200.
2. There is no need to power of the computer. Connect the USB cable to a USB port on the computer (Figure 2.2).
3. Once properly connected, the CR1200 will power on and beep.
4. Scan the below code (M049_03) for USB Keyboard Mode:
USB Keyboard Factory Reset Save Settings
5. Scan the Save Settings Code (M188_02)
