Repairs

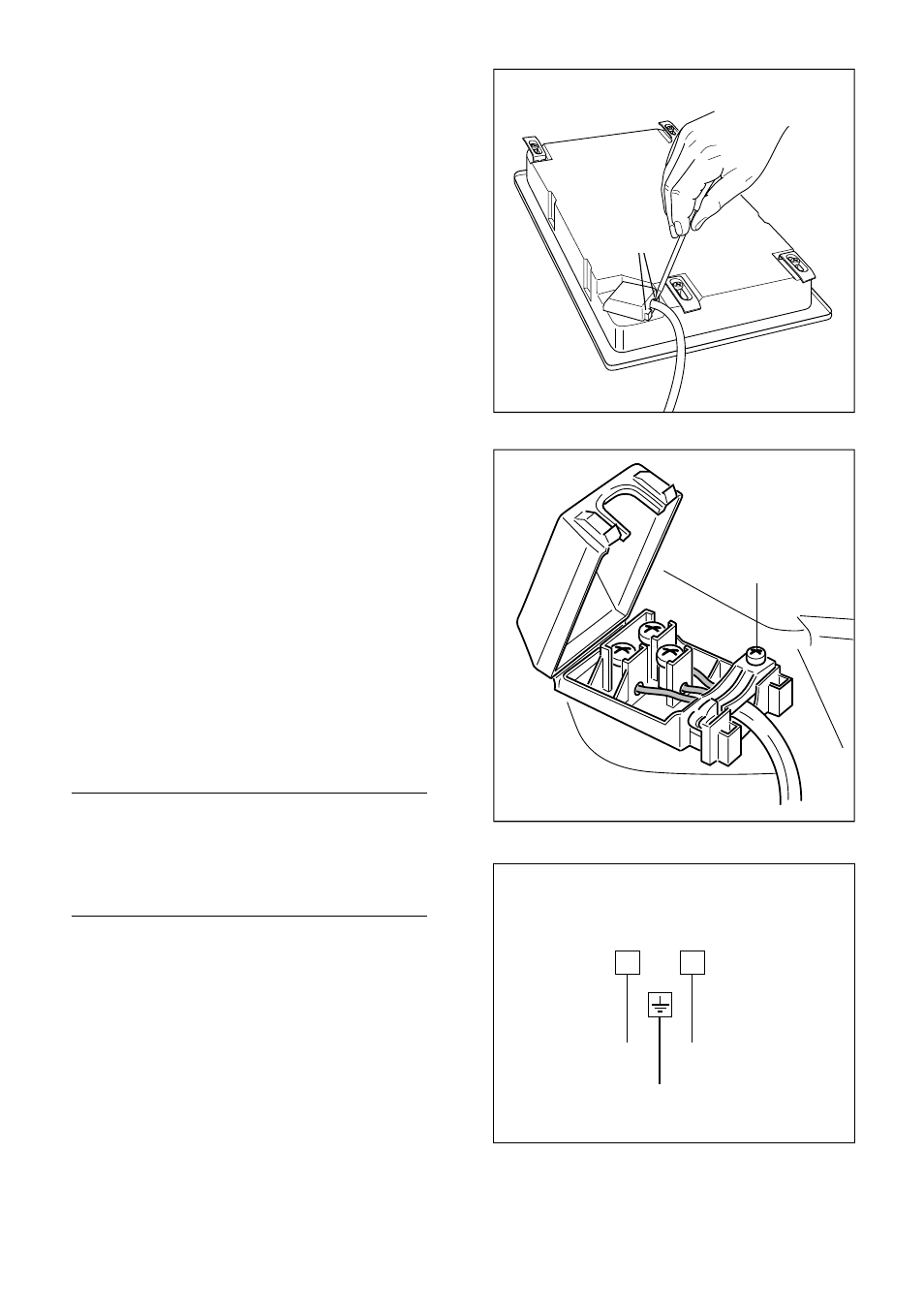

Replacing the supply cable
Turn the cooktop over and unhook the
terminal board cover by inserting a
screwdriver into the two hooks “A”.
Open the cable gland by unscrewing
screw “F”, unscrew the terminal
screws and remove the cable.
The new supply cable, of suitable type
and section, is connected to the
terminal board following the diagrams
shown below.
Section of the supply cables
and connection diagram
The outer diameter of the supply
cable must not exceed 9 mm.
Supply cables section:
230 V ~ 50/60 Hz 3 x 1,5 mm 2
for Electric Barbecue
use H05RR-F cables
for Electric Fryer
use the following cables:
H05VV-F
or H05V2V2-F resistant up to 90°C
or H05RN-F
A
F
Fig. 1
Fig. 2
230 V
PE
N L
1
(L )
2
Fig. 3
230 V~
