Cadac S-Type - Manual (Page 46)

6-8 Group, matrix and aux output - stereo 8413, mono 8415
S-Type Revision S2005-6
915 5HDU#SDQHO#JURXS/#PDWUL[#DQG#DX[#RXWSXW=####################
6WHUHR#;746#0#0RQR#;748

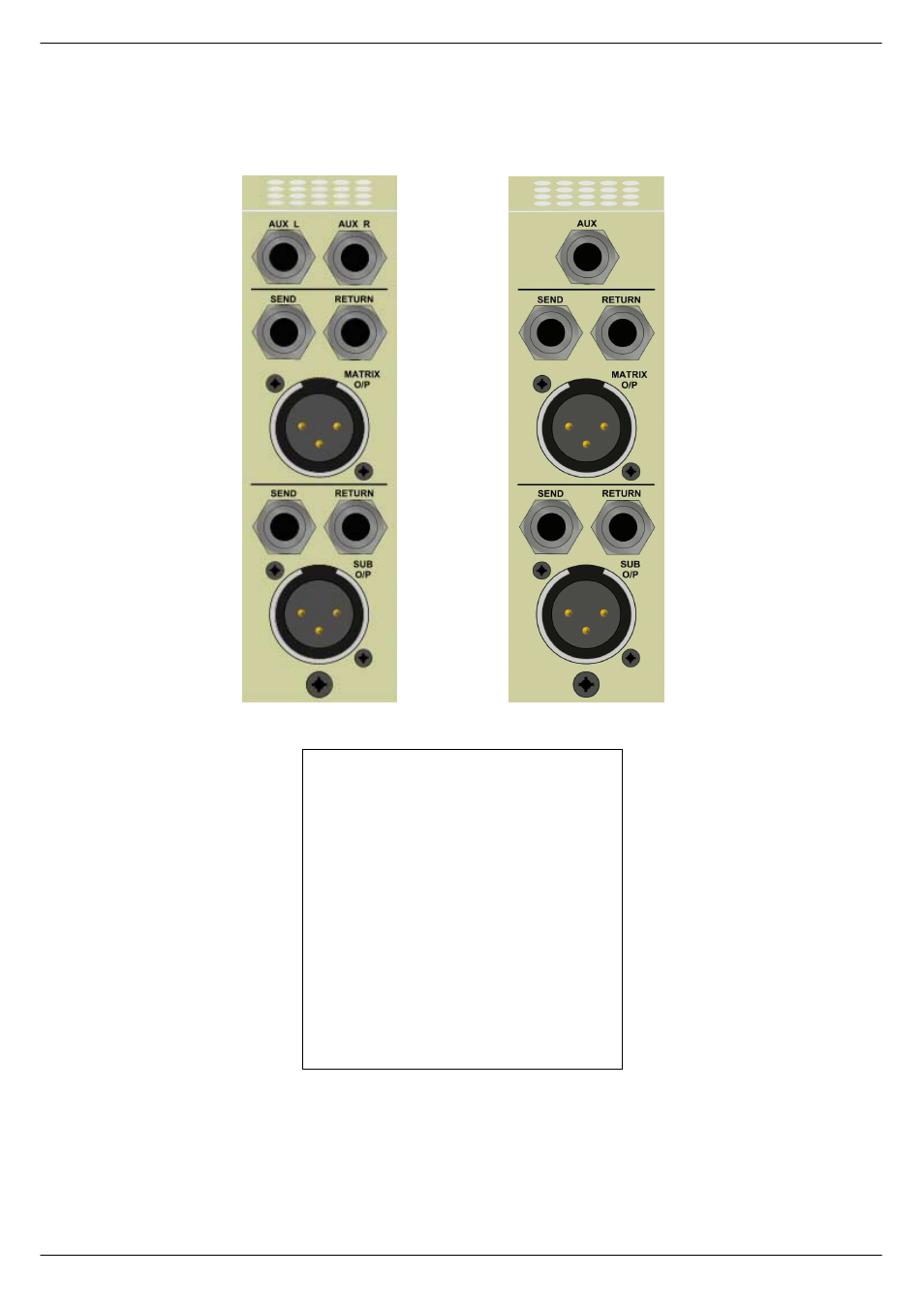

8413 stereo 8415 mono
Inputs and outputs are electronically balanced and con-
nected via 3-pin XLRs and follow the wiring convention:
PIN 1 = Screen
PIN 2 = In-phase signal (hot)
PIN 3 = Out-of-phase signal (cold)
The 0.25” TRS jack connectors use the wiring conven-
tion:
TIP = In-phase signal (hot)
RING = Out-of-phase signal (cold)
SLEEVE = Screen
IMPORTANT NOTE: Pin 1 on XLR connectors and the
‘sleeve’ connections on the jack sockets are connected
to the FRAME. This is to ensure that the console can
comply with the Electromagnetic Compatibility (EMC)
directive.
