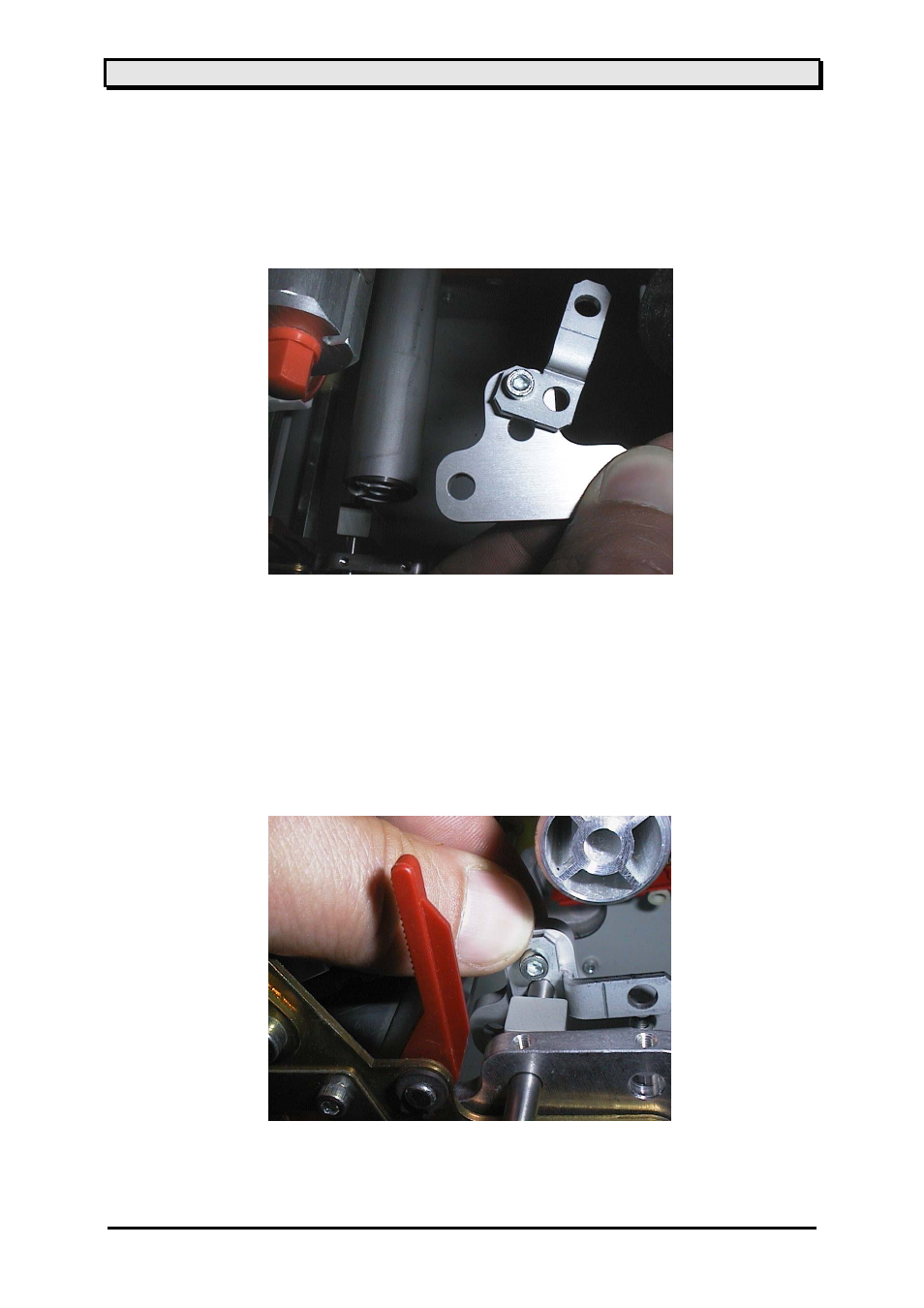

Screw the metal plate to the inner side plate
Attention: Take care that the screw is not tighten – both parts should be able to
move.
Slip the assemble to the upper – front axle. The end of the axle has to end with the
inner side of the plate (please take care about that) and fix the axle by using the
hexagonal screw in the plate.
Attention: Now you can tighten the screw fixing metal plate and inner side plate
together.
