10/07 Rev. 3.03-01 EASY PLUG MANUAL Bar Code Information
All Devices
17
Notes about bar code application
Quiet zones
Quiet zones are bright, blank areas on the right and left side of the bar code
(in reading direction). They are necessary for error-free reading.
Ruhezonen / Quiet zones
Z0160.cdr

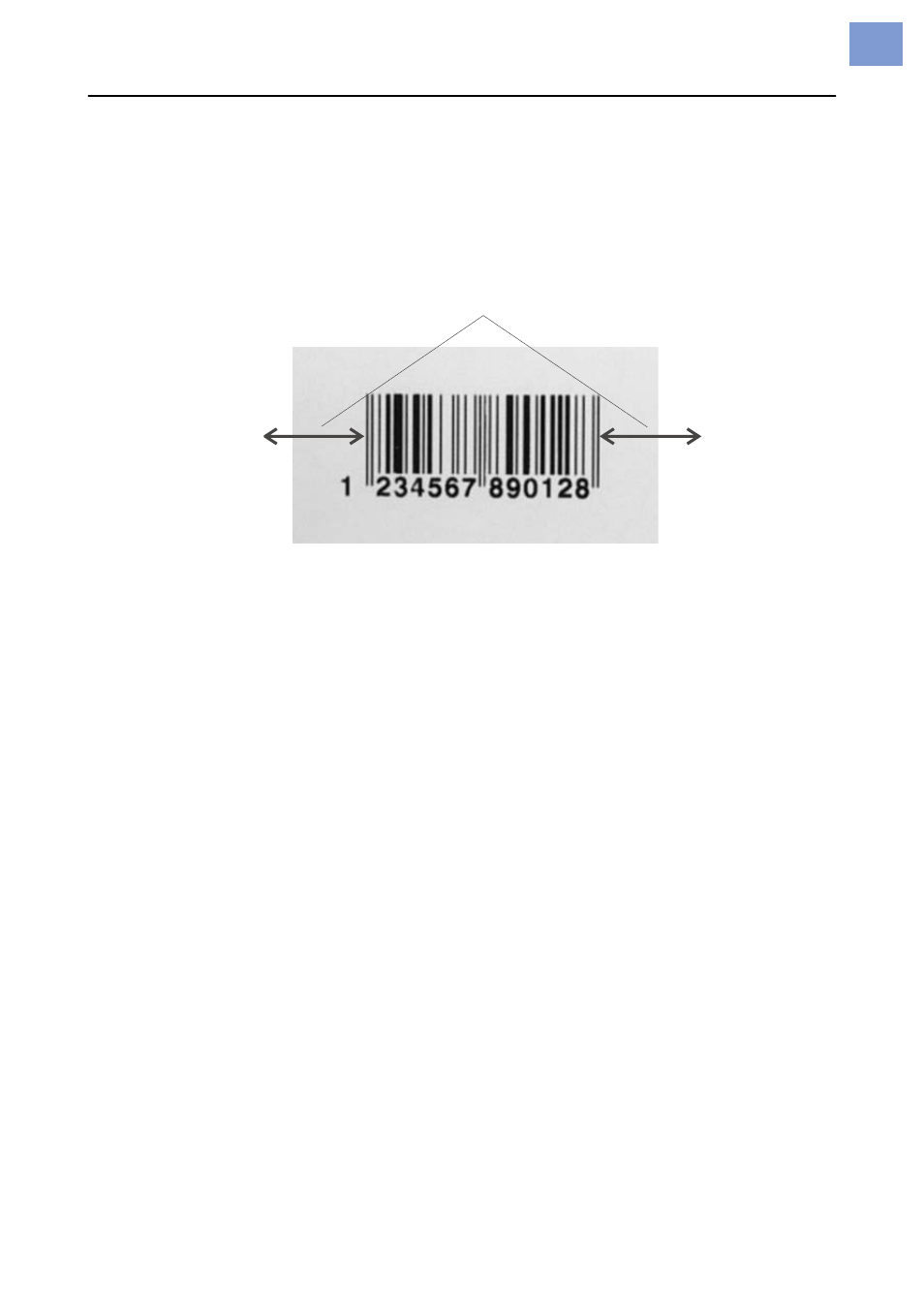

Fig. 5: Quiet zones are important for error-free bar code reading.
Measures The following typical values apply to quiet zones:
• Scanner with average depth-of-focus:
10x the module width of one element, at least 2.5 mm.
• Scanner with high depth-of-focus:
15x the module width of one element, at least 6.5 mm.
