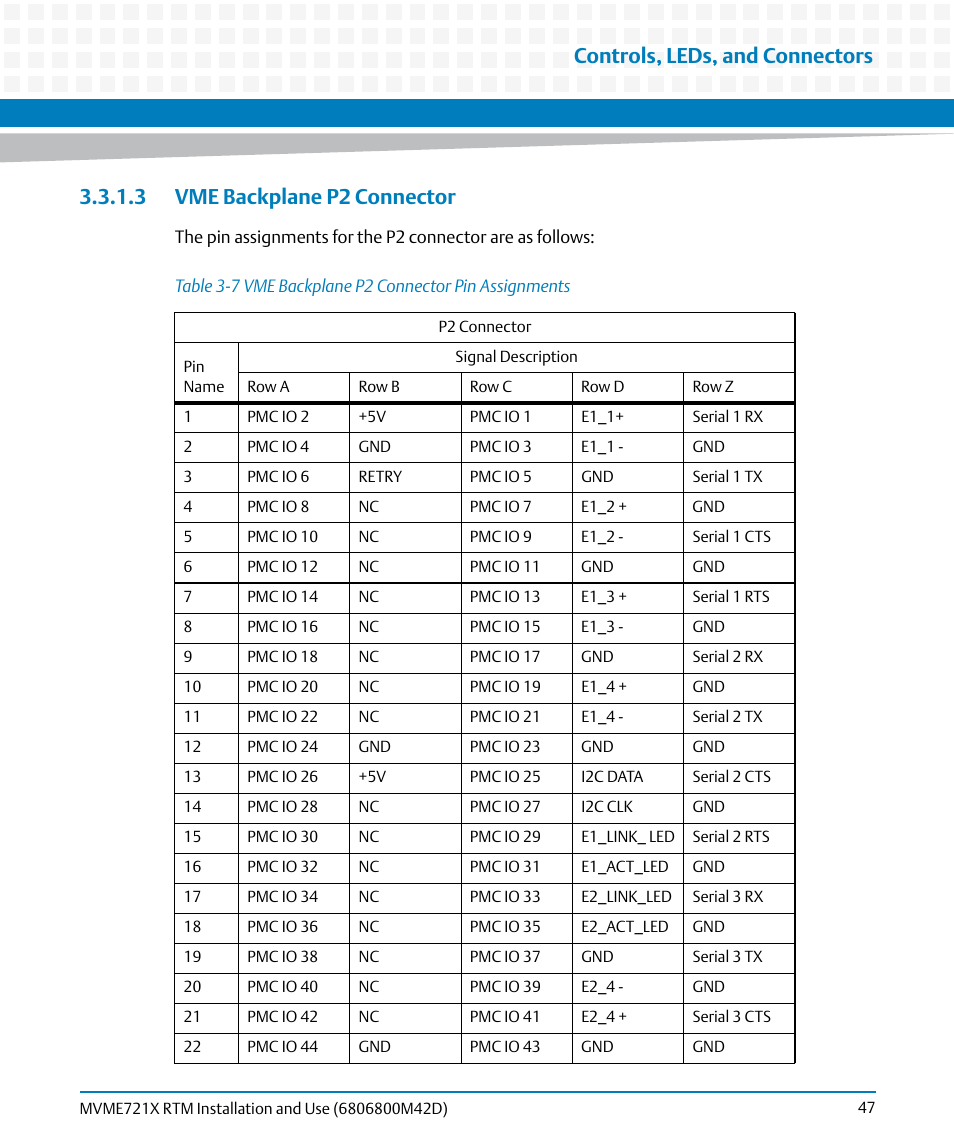

3 vme backplane p2 connector, Table 3-7, Vme backplane p2 connector pin assignments – Artesyn MVME721x RTM Installation and Use (April 2015) User Manual
Page 47: Vme backplane p2, Connector, Controls, leds, and connectors
