Hardware Preparation and Installation
COMX-P2020 Module Installation and Use (6806800K97E) 36
Installing a Memory Module
1. Wear the ESD-preventive wrist strap.
2. Lay the COM Express module where the SOUDIMM is to be installed on the
antistatic desktop.
3. Take the SOUDIMM out of the antistatic package, holding it by the edges.
4. Line up the notch located on the row of the metal pins at the bottom of the module
with the key in the SOUDIMM slot on the COM Express module.

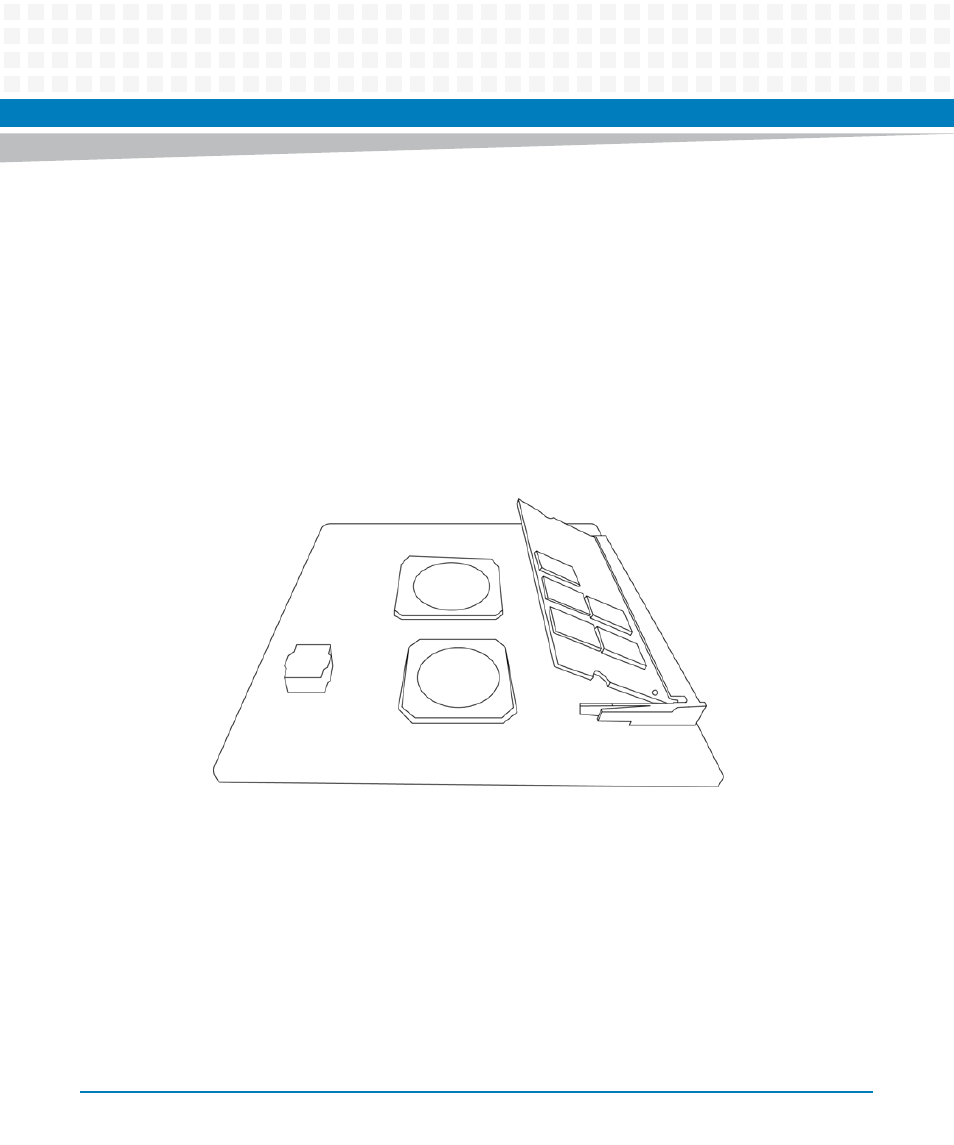

5. Insert the SOUDIMM in a slantwise position or at a 45-degree angle to slide the
memory module into place.
