40
Figure 2-6

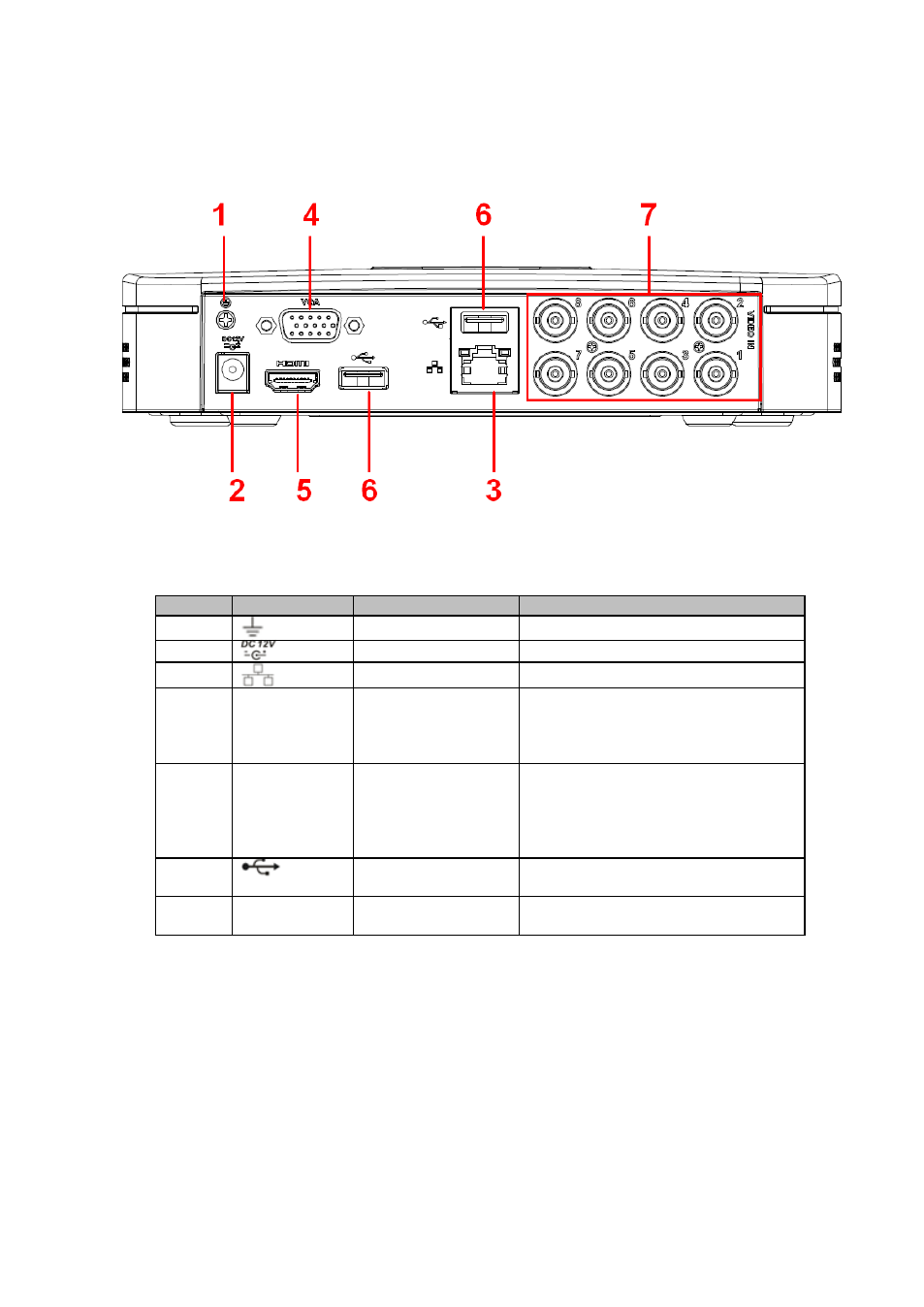

The 8-channel rear panel is shown as below. See Figure 2-7.
Figure 2-7
Please refer to the following sheet for detailed information.
SN Icon Name Note
1 GND Ground end
2 Power input port Input 12V DC.
3 Network port
100M Ethernet port
4 VGA VGA video output
port VGA video output port. Output
analog video signal. Can connect to
the monitor to view ananlog video
output.
5 HDMI High definition
media interface
High definition audio and video
signal output port. It transmits
uncompressed high definition video
and multiple-channel data to the
HDMI port of the display device.
6 USB2.0 port Connect to USB storage device,
mouse, burning DVD-ROM and etc.
7 VIDEO IN Video input port Connect to analog camera, video
input signal.
2.2.3 1080P(V2) Smart 1U Series
The 4-channel rear panel is shown as below. See Figure 2-8.
