3 encode, 1 video – AGI Security SYS-HC0451S2 User Manual
Page 140

130

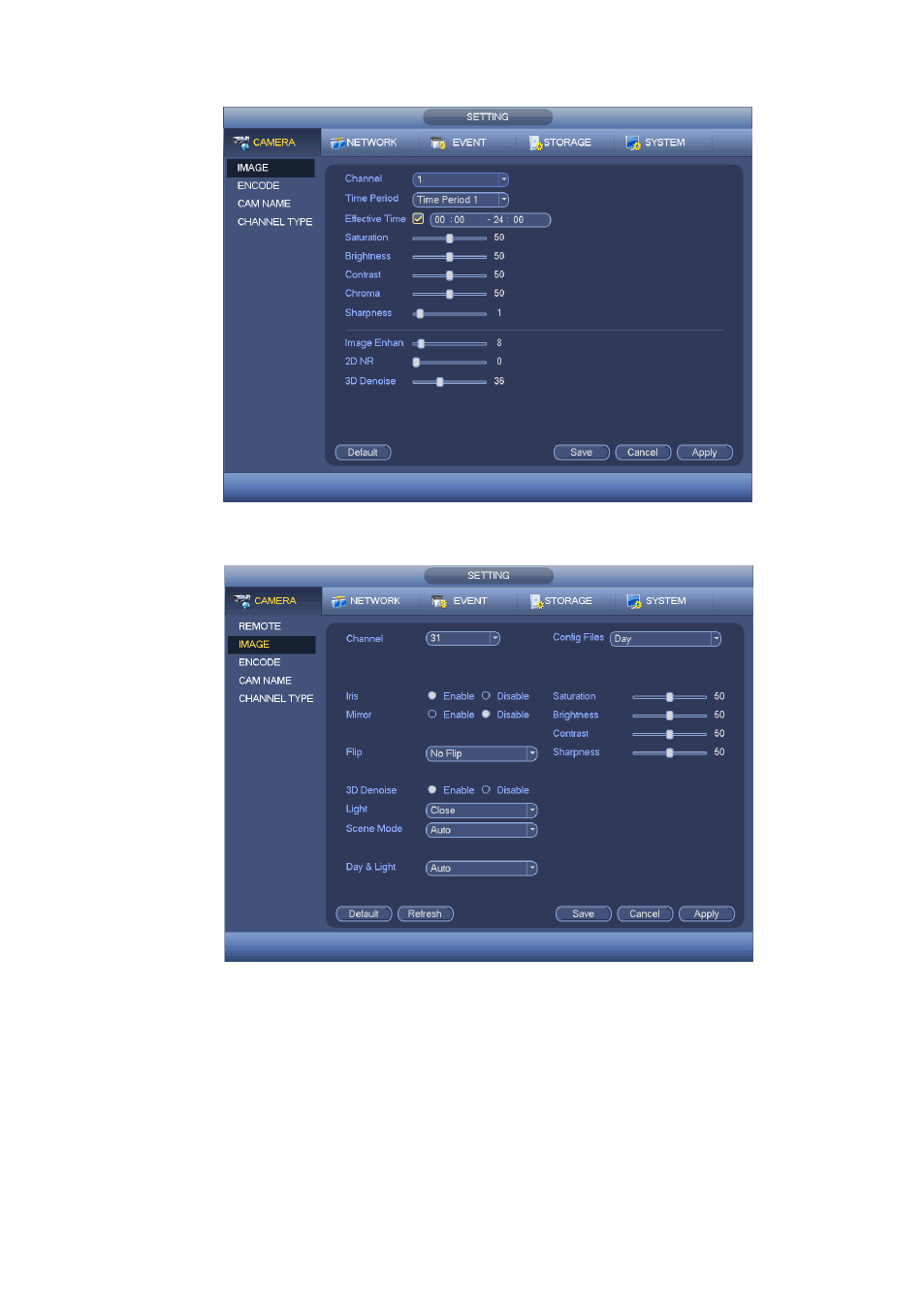

Figure 4-54
Figure 4-55
4.10.1.3 Encode
It is to set video bit stream, picture bit stream, video overlay parameter and etc.
4.10.1.3.1 Video
Video setting includes the following items. See Figure 4-56.
Channel: Select the channel you want.
Type: Please select from the dropdown list. There are three options: regular/motion detect/alarm.
You can set the various encode parameters for different record types.
Compression: System supports H.264 and MJPEG.
