Installation 11
Ceiling mount
1. Attach the ceiling brackets to the sign using the screws supplied.
2. Hang the sign from the ceiling using mounting chains and ceiling
hooks (not supplied). The chains and hooks must be able to
support at least four times the weight of the sign.
3. Plug the power cord into the sign and into a nearby outlet.
Counter mount
1. Attach the mounting brackets to the counter, 24 5/8 inches (62.7
cm) on center.
2. Plug the power cord into the sign.
3. Attach the sign to mounting brackets using hardware as shown.
NOTE: On the end with the power cord, use the spacer
provided, not a washer.
4. Plug the power cord into an outlet.
X
X

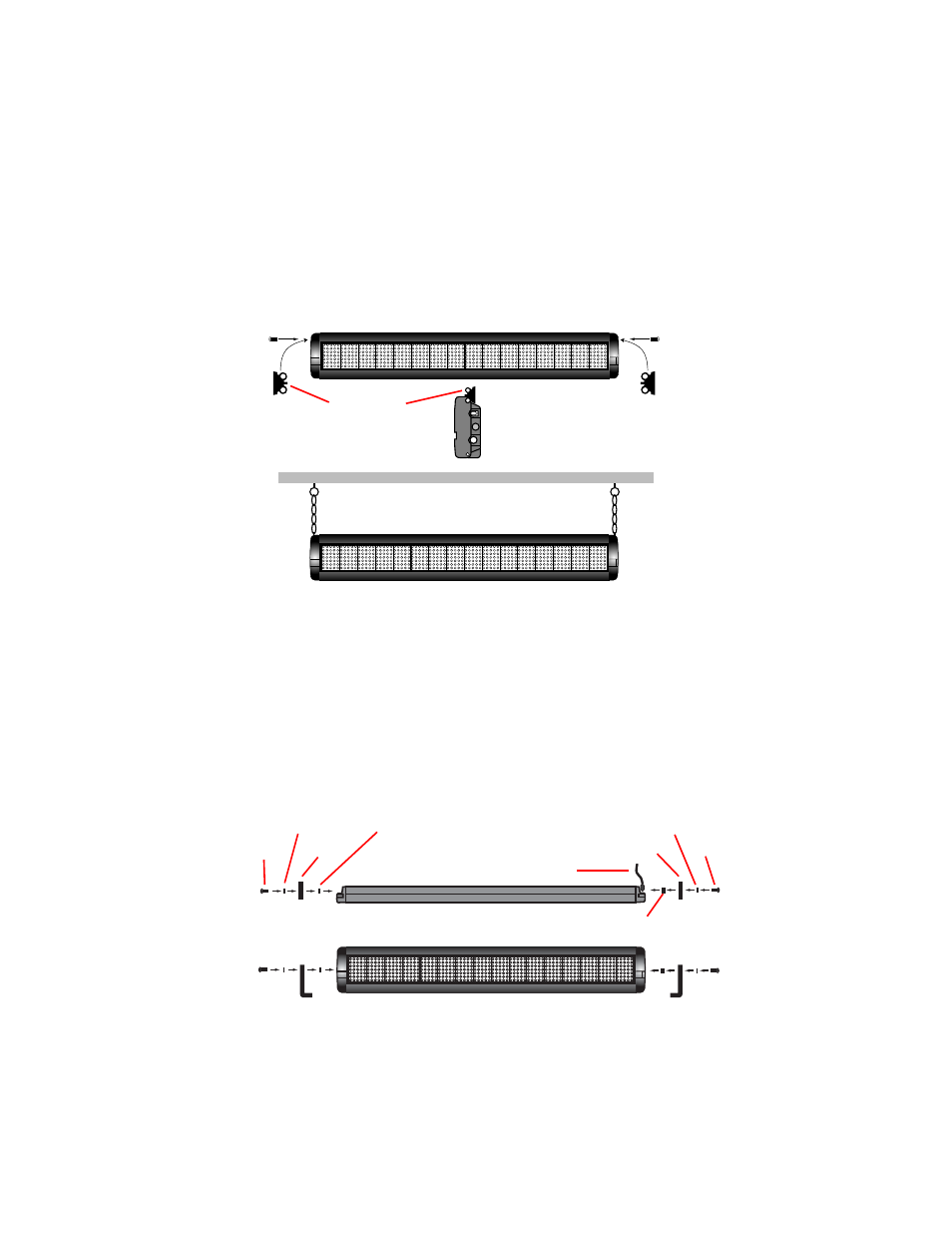

This mounting chain and ceiling hook (not supplied) must
be able to support at least four times the weight of the sign. Front
view
Top
view
Side view
Ceiling bracket
Top view
Front view
Power cord
Screw
Lock washer
Bracket
Washer
Screw
Lock washer
Bracket
Washer
