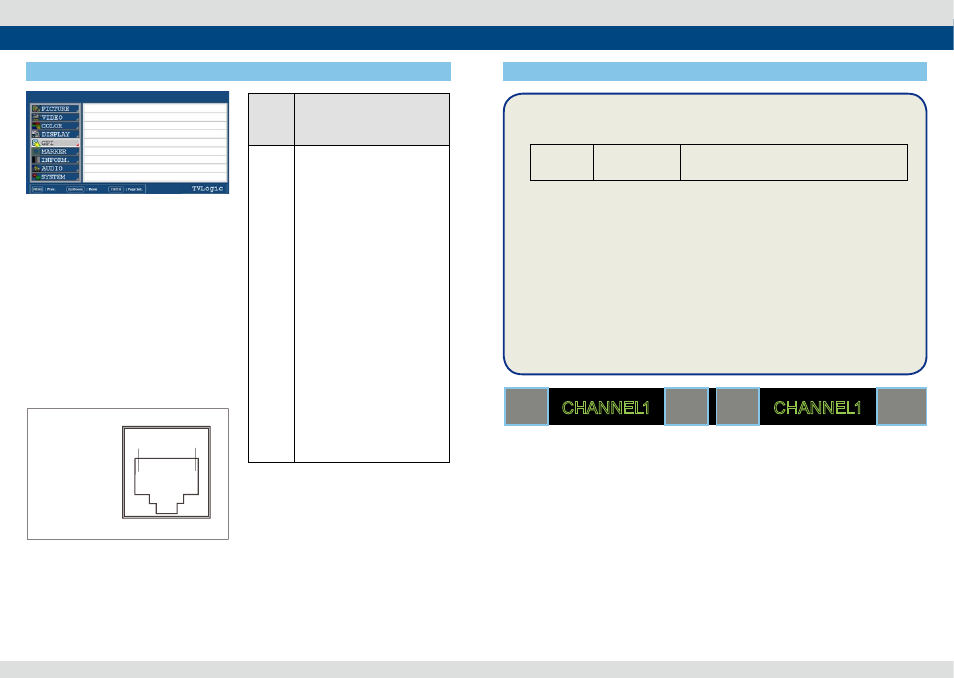

16 4K LCD Monitor 4K LCD Monitor 17
●
This product provides a REMOTE CONTROL
mode. The user may connect RJ-45 jack to
the REMOTE terminal on the rear of the unit
and designate a function for each pin.
- The user designates function for PIN 1~PIN
6. PIN 7 is POWER ON/OFF use only and PIN 8
is GND.
The selectable functions are as follows:
GPI 1 : SDI
GPI 2 : HDMI
GPI 3 : DISPLAY PORT
GPI 4 : F.A. MONO
GPI 5 : F.A. COLOR
GPI 6 : UNDER SCAN
LUM-300W SDI A
[5] GPI
5. Menu Operations
PAGE I >> PAGE II
GPI 1
GPI 2
GPI 3
GPI 4
GPI 5
GPI 6
GPI 7
GPI 8
SDI
HDMI
DISPLAY PORT
F.A. MONO
F.A. COLOR
UNDER SCAN
POWER ON
GND
REMOTE (RJ-45)
1: Pin1
2: Pin2
3: Pin3
4: Pin4
5: Pin5
6: Pin6
7: Pin7
8: GND
1 8
Menu
Classifi-
cation
Settable Values
PIN
1~6
NONE,
SDI CHANNEL,
HDMI CHANNEL,
DISPLAY PORT,
F.A. MONO,
F.A. COLOR,
UNDER SCAN,
1:1 SCAN,
ASPECT,
H/V DELAY,
BLUE ONLY,
MONO,
16:9 MARKER,
4:3 MARKER,
4:3 ON AIR MARKER,
15:9 MARKER,
14:9 MARKER,
13:9 MARKER,
1.85:1 MARKER,
2.35:1 MARKER,
1.85:1&4:3 MARKER,
CENTER MARKER,
SAFETY AREA 80%,
SAFETY AREA 85%,
SAFETY AREA 88%,
SAFETY AREA 90%,
SAFETY AREA 93%,
SAFETY AREA 100%,
UD/SINGLE MODE
1080/60i
[5] GPI
5. Menu Operations
* Transmission (18 Byte) (PC or Device -> Monitor)
* [HEADER] : Display address (0~126) + 80 hex.
* [CONTROL BYTE]
bit 0 : Tally 1 (1=on, 0=off)
bit 1 : Tally 2 (1=on, 0=off)
bit 2 : Tally 3 (1=on, 0=off)
bit 3 : Tally 4 (1=on, 0=off)
bit 4 : bright data (Not used)
bit 5 : bright data (Not used)
bit 6 : reserved (Not used)
bit 7 : cleared to 0 (Not used)
* [DISPLAY DATA] : 16 displayable ASCII characters.
HEADER
(1 BYTE)
CONTROL
BYTE(1 BYTE)
DISPLAY DATA
(16 BYTE)
Tally1 CHANNEL1 Tally2 Tally3 CHANNEL1 Tally4
