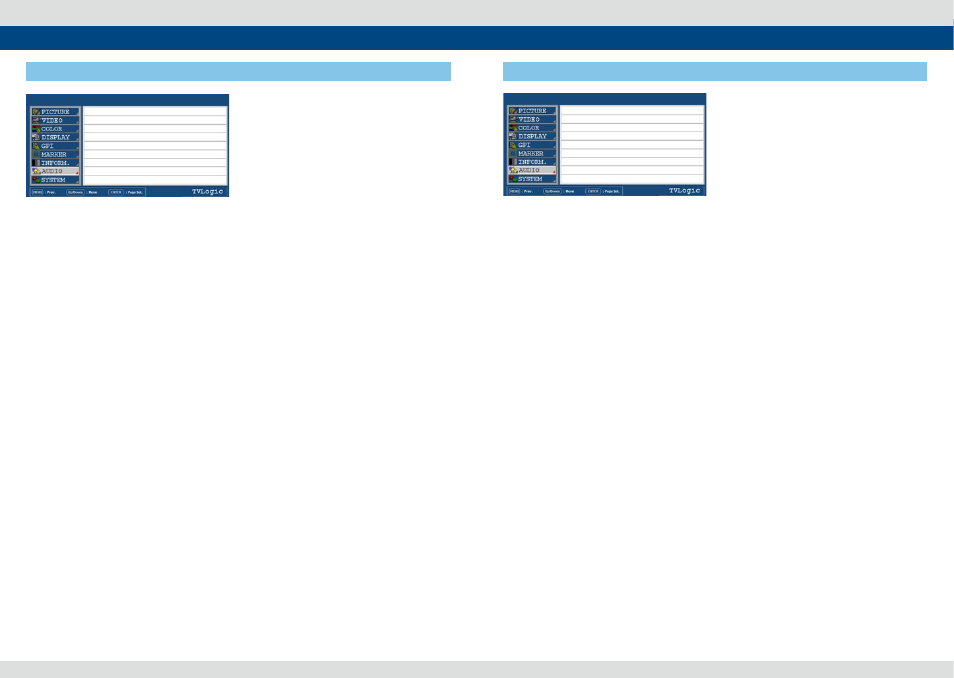

22 4K LCD Monitor 4K LCD Monitor 23
[7] INFORM.
5. Menu Operations
●
F4 KEY MAPPING
- User can select the function for the F4 button.
- Selectable functions: UNDER SCAN, ASPECT,
MARKER, BLUE ONLY, H/V DELAY, FREEZE,
VIDEO RANGE, DITHERING, FORCE Psf, COLOR
TEMP, HD DISPLAY and AUDIO LVM.
●
F5 KEY MAPPING
- User can select the function for the F5 button.
- Selectable functions: UNDER SCAN, ASPECT,
MARKER, BLUE ONLY, H/V DELAY, FREEZE,
VIDEO RANGE, DITHERING, FORCE Psf, COLOR
TEMP, HD DISPLAY and AUDIO LVM.
●
KEY LOCK
- This item locks all buttons except power,
input select and menu buttons.
LUM-300W SDI A
KEY LED
F1 KEY SETTING
F2 KEY SETTING
F3 KEY SETTING
F4 KEY SETTING
F5 KEY SETTING
KEY LOCK
ON
MODE
UNDER SCAN
ASPECT
MARKER
BLUE ONLY
DISABLE
1080/60i
[8] AUDIO
5. Menu Operations
●
LEVEL METER SELECT
- Used to control the Embedded Audio Mode.
- Available modes are OFF, 16ch Hor. and
116CH Ver.
●
LEVEL METER DISPLAY
- Used to set the display method for Audio
Level Meter.
- Available modes are Group and Pair.
●
LEVEL METER REFERENCE
- Display the default Audio Level Meter value.
- Available options are -18dB and -20dB.
- Audio level meter within selected value
turns to green and exceeded audio level is
displayed in yellow. Audio level exceeding
- 4dB is displayed in red.
●
LEVEL METER DECAY TIME
- Sets the reduction time for the max value
indication of audio signals.
- Control range is from 0 to 30. Bigger number
means a longer display time for max value.
●
LEVEL METER SIZE
- Used to control the size of the Audio Level
Meters. Available modes are SMALL, SMALL
TRANS., NORMAL, NORMAL TRANS., LARGE
and LARGE TRANS.
- In SMALL, NORMAL and LARGE modes, the
level meter appears opaque.
- In SMALL TRANS., NORMAL TRANS. and
LARGE TRANS. Modes, the level meter
appears semitransparent.
LUM-300W SDI A
LEVEL METER SELECT
LEVEL METER DISPLAY
LEVEL METER REFERENCE
LEVEL METER DECAY TIME
LEVEL METER SIZE
INPUT SELECT
VOLUME
Em. AUDIO LEFT
Em. AUDIO RIGHT
OFF
PAIR
-18dB
MIN
SMALL
SDI-A
MIN
OFF
OFF
●
INPUT SELECT
- Used to select the input signal of the Audio
Level Meters.
- When the input signal is SDI, available mode
is only SDI-A.
- When the input signal is HDMI, available
modes are HDMI-A, HDMI-B, HDMI-C and
HDMI-D .
●
VOLUME
- Used to control the output volume of the
[AUDIO OUT] terminal on the back of the
monitor.
- Control range is from 0 to 30.
●
Em. AUDIO LEFT
- Used to set embedded audio channel for left
audio out of the [AUDIO OUT] terminal on
the back of the monitor.
- Available values are between CH1~CH16
and OFF.
- In HDMI mode, the left sound out of the
HDMI A channel is available only.
●
Em. AUDIO RIGHT
- Used to set embedded audio channel for
right audio out of the [AUDIO OUT] terminal
on the back of the monitor.
- Available values are between CH1~CH16
and OFF.
- In HDMI mode, the right sound out of the
HDMI A channel is available only.
1080/60i
●
KEY LED
- Used to control the Key Lamp on the front of
the monitor.
- If the button with LED is pressed with the
KEY LED Off, LED comes on but turns off after
5 seconds later.
●
F1 KEY SETTING
- F1 button is fixed for MODE switch feature.
Press the F1 button to change the UD mode.
- SDI : UD MODE(4CH), 2-SAMPLE INT(4CH),
2-SAMPLE INT(2CH)
- HDMI : UD MODE(1CH-A), UD MODE(1CH-B),
UD MODE(4CH)
- DP : UD MODE(1CH-A), UD MODE(1CH-B),
UD MODE(2CH) (To be supported)
●
F2 KEY SETTING
- User can select the function for the F2 button.
- Selectable functions: UNDER SCAN, ASPECT,
MARKER, BLUE ONLY, H/V DELAY, FREEZE,
VIDEO RANGE, DITHERING, FORCE Psf, COLOR
TEMP, HD DISPLAY and AUDIO LVM.
●
F3 KEY MAPPING
- User can select the function for the F3 button.
- Selectable functions: UNDER SCAN, ASPECT,
MARKER, BLUE ONLY, H/V DELAY, FREEZE,
IDEO RANGE, DITHERING, FORCE Psf, COLOR
TEMP, HD DISPLAY and AUDIO LVM.
