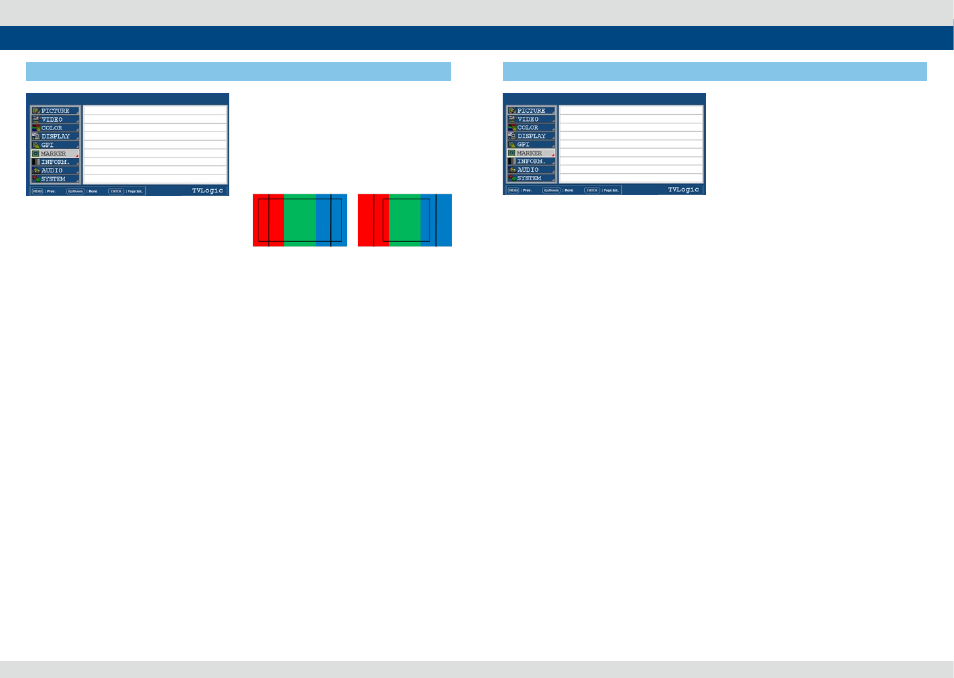

20 4K LCD Monitor 4K LCD Monitor 21
●
MARKER
-Used to select the marker type when the
MARKER is displayed on the screen.
- MARKER may only be activated by pressing
the MARKER button on the front of the
monitor.
- Available marker types are OFF, 16:9, 4:3, 4:3
ON AIR, 15:9, 14:9, 13:9, 1.85:1, 2.35:1, 1.85:1
& 4:3, 4:3 ALT 14:9, 16:9 ALT 14:9, 16:9 ALT 4:3,
AFD and USER.
●
CENTER MARKER
- Displays the Center Marker on the screen.
- This function operates only after activating
the Marker function by pressing the MARKER
button on the front of the monitor.
●
SAFETY AREA
- Used to select to display and control the size
and availability of the Safety Area.
- Available sizes are 80%, 85%, 88%, 90%, 93%,
100%, EBU ACTION 16:9, EBU GRAPHIC 16:9,
EBU ACTION 14:9, EBU GRAPHIC 14:9, EBU
ACTION 4:3 and EBU GRAPHIC 4:3.
- This function operates only after activating
the Marker function by pressing the MARKER
button on the front of the monitor.
●
FIT MARKER
- Used to activate or inactivate the Fit Marker
function.
- When the Marker type is selected in the
Marker menu, a border line of the Safety
Area will be displayed inside the Marker.
Images below show the difference between
Fit Marker ON and OFF.
●
MARKER MAT
- Used to set the darkness level outside of
the MARKER area from OFF(transparent) to
7(Black).
- The bigger the value, the darker the color.
●
MARKER COLOR
- Used to control the color of MARKER lines.
- Available colors are white, gray, black, red,
green and blue.
●
MARKER THICKNESS
- This item controls the thickness of the
MARKER lines.
- The degrees of thickness are between 1
and 7.
LUM-300W SDI A
[6] MARKER
5. Menu Operations
PAGE I >> PAGE II
MARKER
CENTER MARKER
SAFETY AREA
FIT MARKER
MARKER MAT
MARKER COLOR
MARKER THICKNESS
OFF
OFF
OFF
OFF
OFF
WHITE
4
● MARKER : 4:3
● SAFETY AREA : 90%
● FIT MARKER : OFF
● MARKER : 4:3
● SAFETY AREA : 90%
● FIT MARKER : ON
1080/60i
●
USER MARKER H1
- Used to set the position of the first horizontal
marker line.
- Displayed when MARKER menu is set to
USER.
●
USER MARKER H2
- Used to set the position of the second
horizontal marker line.
- Displayed when MARKER menu is set to
USER.
●
USER MARKER V1
- Used to set the position of the first vertical
marker line.
- Displayed when MARKER menu is set to
USER.
●
USER MARKER V2
- Used to set the position of the second
vertical marker line.
- Displayed when MARKER menu is set to
USER.
LUM-300W SDI A
[6] MARKER
5. Menu Operations
PAGE II >> PAGE I
USER MARKER H1
USER MARKER H2
USER MARKER V1
USER MARKER V1
MIN
MIN
MIN
MIN
1080/60i
