8 4K LCD Monitor 4K LCD Monitor 9
3. Controls & Functions
FRONT
●
[DP] Button/Lamp(To be supported)
- Used to select Display Port input. Previously
selected Display Port input selection
displays.
- Press the button to move through the
modes: UD MODE(DP-A 1CH), UD
MODE(DP-B 1CH), UD MODE(2CH).
●
[HDMI] Button/Lamp
- Used to select HDMI input. Previously
selected HDMI input selection displays.
- Press the button to move through the
modes: UD MODE(4CH), UD MODE(HDMI-A
1CH), UD MODE(HDMI-B 1CH).
●
[SDI] Button/Lamp
- Used to select SDI input. Previously selected
SDI input selection displays.
- Press the button to move through the
modes: UD MODE(4CH), 2-SAMPLE INT(4CH),
2-SAMPLE INT(2CH).
●
[F1/MODE] Button/Lamp
- Used to select the UD MODE.
- SDI : UD MODE(4CH), 2-SAMPLE INT(4CH),
2-SAMPLE INT(2CH)
- HDMI : UD MODE(4CH), UD MODE(HDMI-A
1CH), UD MODE(HDMI-B 1CH)
- DP : UD MODE(DP-A 1CH), UD MODE(DP-B
1CH), UD MODE(2CH) (To be supported)
●
[F2 ~ F5] Button/Lamp
- Shortcut key for KEY MAPPING feature in the
OSD MENU.
- Selectable options are as follows :
1). UNDER SCAN
- Zooms in/out of the image without
changing the aspect ratio.
2). ASPECT
- Used to select ASPECT ON or OFF. Scales the
image to 3840:2160 or 4096:2160.
3). MARKER
- Used to activate/deactivate the Marker. The
desired marker can be displayed on the
screen properly when the type of marker
selected from the main menu.
4). BLUE ONLY
- Activates in the order: BLUE ONLY – MONO
– F.A MONO – F.A COLOR.
- BLUE ONLY : Used to remove red and green
from the input signal and display the screen
only under a blue signal.
- MONO: Used to remove all colors from the
input signal and display the screen only
under white and black signal.
- F.A MONO: Indicate the border lines of the
image in designated color when the image
in focus and Displays the other part in white
and black.
- F.A COLOR : Indicate the border lines of the
image in designated color when the image
in focus.
* Focus Assist : Assigns a color to the pixels
in the shape or boundary area of the image
to inform the user to make the best focus.

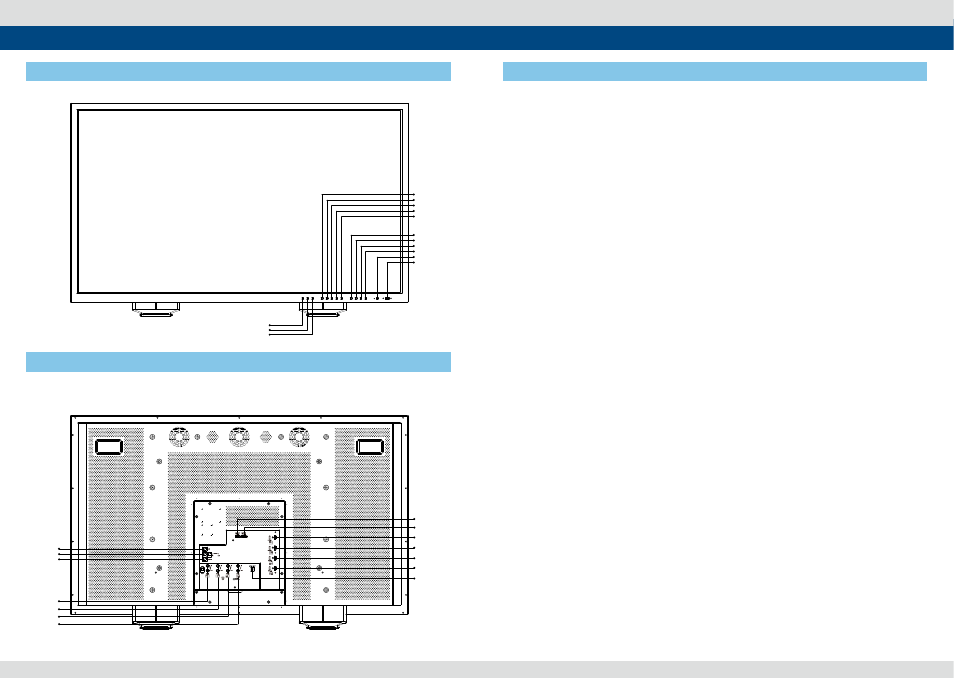

3. Controls & Functions
LUM-550W : REAR
LUM-550W : FRONT
DP
HDMI
SDI
F1/MODE
F2/SCAN
F3/ASPECT
F4/MARKER
F5/BLUE ONLY
USB
POWER
ENTER
UP
DOWN
MENU
LAN
RS422 IN/OUT
REMOTE
SDI-A IN/OUT
SDI-B IN/OUT
SDI-C IN/OUT
SDI-D IN/OUT
DISPLAY PORT -A
DISPLAY PORT-B
HDMI-A
HDMI-B
HDMI-C
HDMI-D
AUDIO IN
DP
HDMI
SDI
F1/MODE
F2/SCAN
F3/ASPECT
F4/MARKER
F5/BLUE ONLY
USB
POWER
ENTER
UP
DOWN
MENU
LAN
RS422 IN/OUT
REMOTE
SDI-A IN/OUT
SDI-B IN/OUT
SDI-C IN/OUT
SDI-D IN/OUT
DISPLAY PORT -A
DISPLAY PORT-B
HDMI-A
HDMI-B
HDMI-C
HDMI-D
AUDIO IN
