adjustments must be double checked and tightened after the loudspeaker has been
mounted.
Next, the loudspeaker should be mounted to the PT-30 using the supplied M8 stainless
steel bolts and internal tooth lock washers. DO NOT SUBSTITUE ANY PARTS.

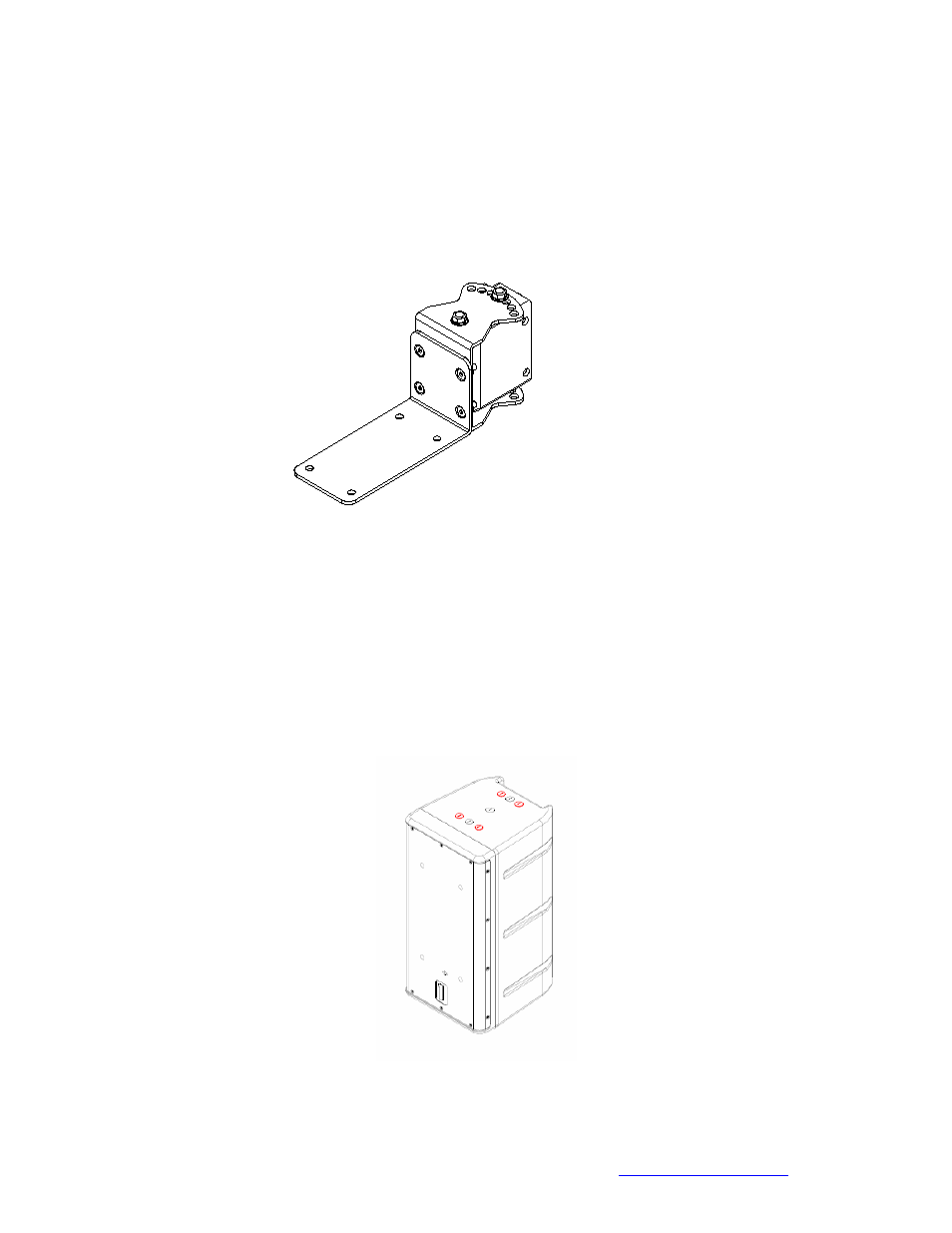

PT-30 speaker mount bracket section
The PT-30 mounts to the top or bottom of the 108IM or 208CIM as shown in the figure
below using the M8 locations. The mounting locations are highlighted in red.
Note: Remove all 7 M8 cover plugs before installing the loudspeaker on the PT-30
bracket plate!
DO NOT SUBSTITUTE MOUNTING LOCATIONS!
PT-30 Mounting locations (top or bottom) for 108IM/208CIM
