NDiS B862/B842 User Manual

Chapter 3: System Setup

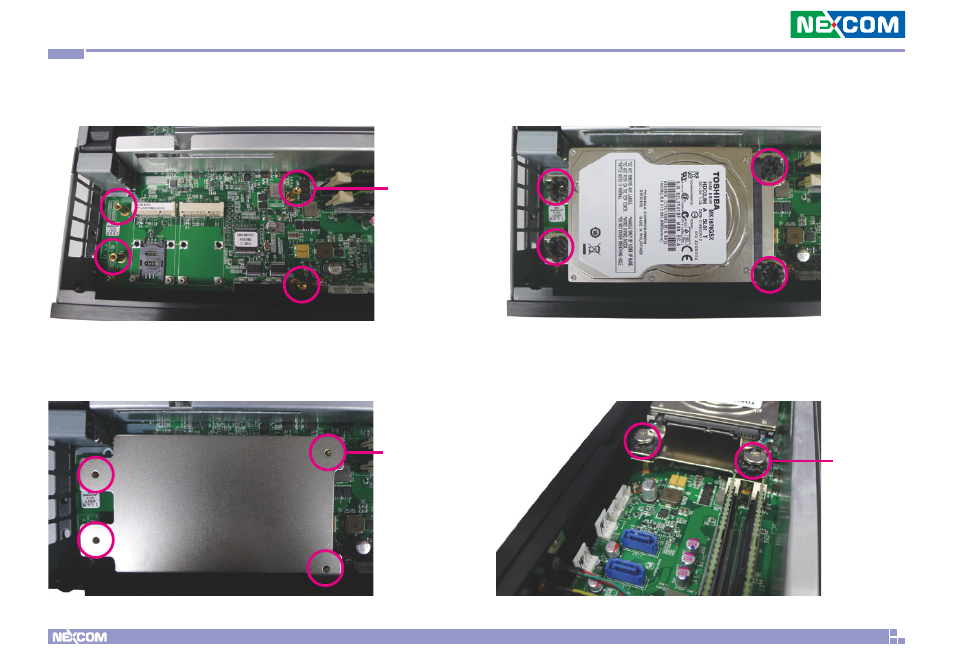

5. Locate the copper standoffs on the motherboard.

6. Place the HDD bracket’s base on top of the copper standoffs with the

mounting holes aligned.

8. Fasten screws into the holes to secure it.

Copper

standoff

Copper

standoff

Screw

7. Similarly, put the HDD bracket on top of the base with the holes aligned.
