Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved. 23 NDiS B862/B842 User Manual
Chapter 2: Jumpers and Connectors
1 2
51 52
Pin Definition Pin Definition
1 PCIE_WAKE# 27 GND
2 +3.3B_MINI 28 D15VS
3 NC 29 GND
4 GND 30 SMB_CLK
5 NC 31 mPCIE_TX_N
6 D15VS 32 SMB_DATA
7 CLKREQ# 33 mPCIE_TX_P
8 NC 34 GND
9 GND 35 GND
10 NC 36 USB_IN
11 MC_PCIE_CLK_N 37 GND
12 NC 38 USB_IP
13 MC_PCIE_CLK_P 39 +3.3B_MINI

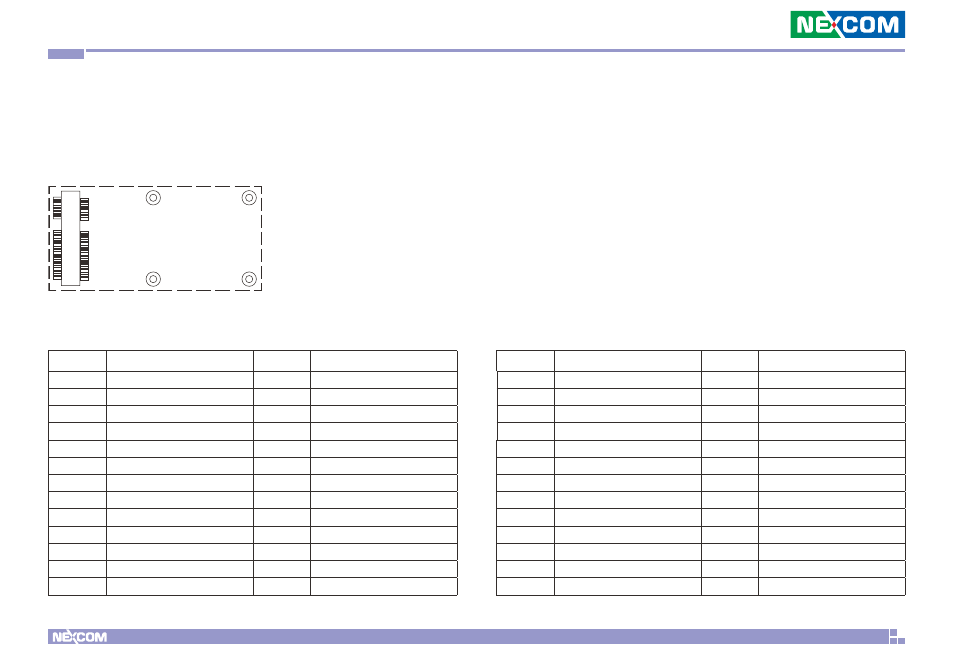

Mini-PCIe Connector
Connector location: CN11
Pin Definition Pin Definition
14 NC 40 GND
15 GND 41 +3.3B_MINI
16 NC 42 NC
17 NC 43 GND
18 GND 44 LED_WLAN#
19 NC 45 NC
20 MINICARD1_DIS# 46 NC
21 GND 47 NC
22 WLAN_RESET# 48 D15VS
23 mPCIE_RX_N 49 NC
24 +3.3B_MINI 50 GND
25 mPCIE_RX_P 51 PRE-DEC
26 GND 52 +3.3B_MINI
