Installing a SO-DIMM

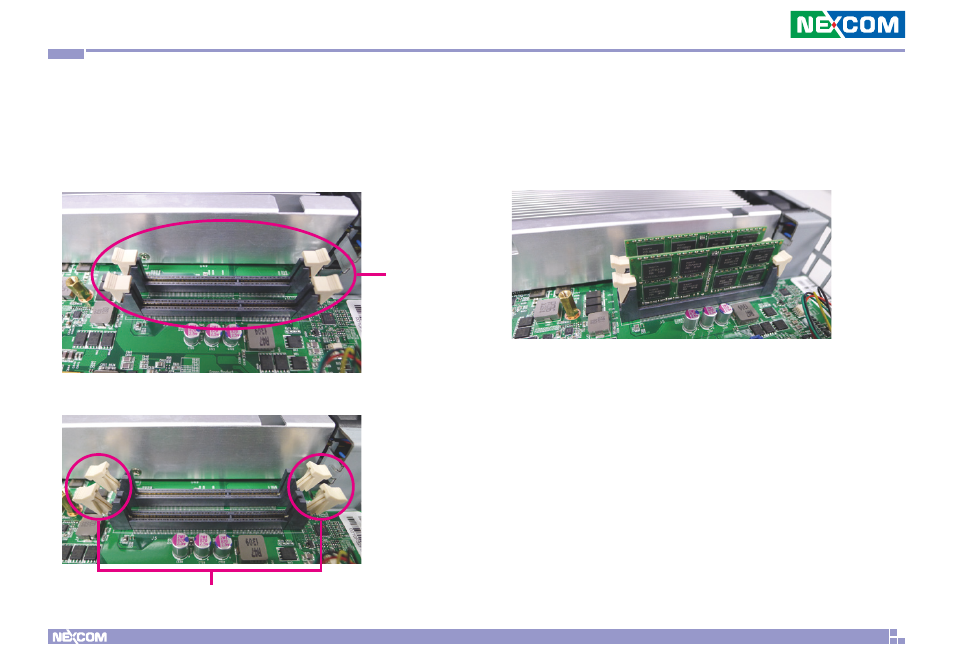

1. With the top cover removed, locate the DIMM1 and DIMM2 slots, then
release the locks on slots.
3. Insert the module into the slot at an 90 degree angle. Apply firm even
pressure to each end of the module until it slips into the slot.
2. Release the lock on the SO-DIMM slots.
SO-DIMM
slots
Lock
4. While pushing the SO-DIMM into the position, the lock will close
automatically.
