Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved. 23 NISE 90 User Manual
Chapter 2: Jumpers and Connectors
1 2
51 52
Pin Definition Pin Definition
1 WAKE# 14 UIM_RESET
2 +3VSB 15 GND
3 COEX1 16 UIM_VPP
4 GND 17 N/A
5 COEX2 18 GND
6 +1.5V 19 N/A
7 CLKREQ# 20 Disable#
8 UIM_PWR 21 GND
9 GND 22 PERST#
10 UIM_DATA 23 PCIERX-
11 REF CLK- 24 +3VSB
12 UIM_CLK 25 PCIERX+
13 REF CLK+ 26 GND
Pin Definition Pin Definition
27 GND 40 GND
28 +1.5V 41 +3VSB
29 GND 42 N/A
30 SMBCLK 43 GND
31 PCIETX- 44 N/A
32 SMBDATA 45 N/A
33 PCIETX+ 46 N/A
34 GND 47 N/A
35 GND 48 +1.5V
36 USB_D- 49 N/A
37 GND 50 GND
38 USB_D+ 51 N/A
39 +3VSB 52 +3VSB

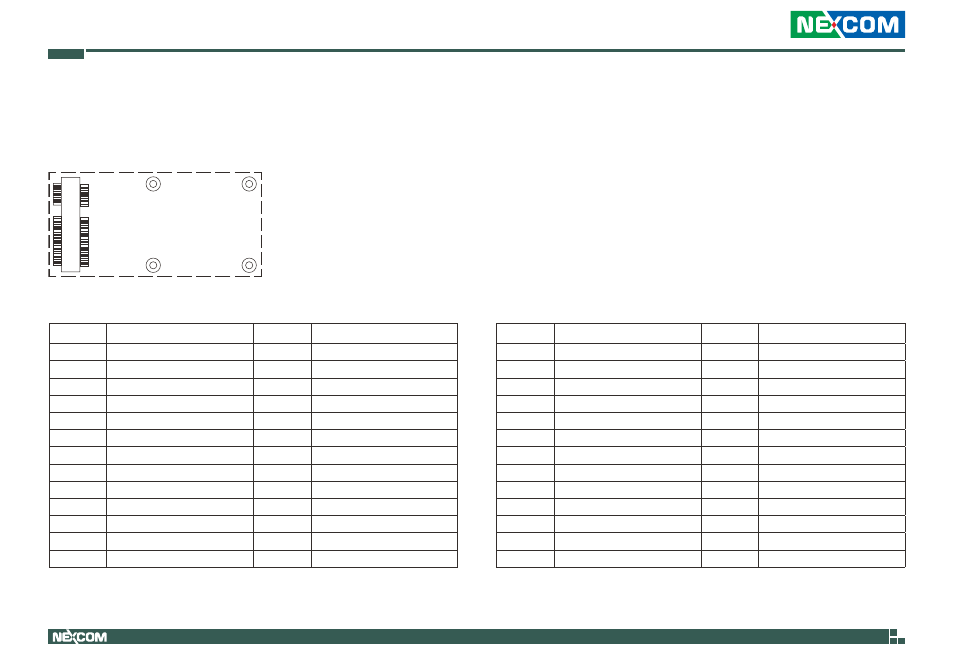

Mini-PCIe Connector
Connector location: CN3
